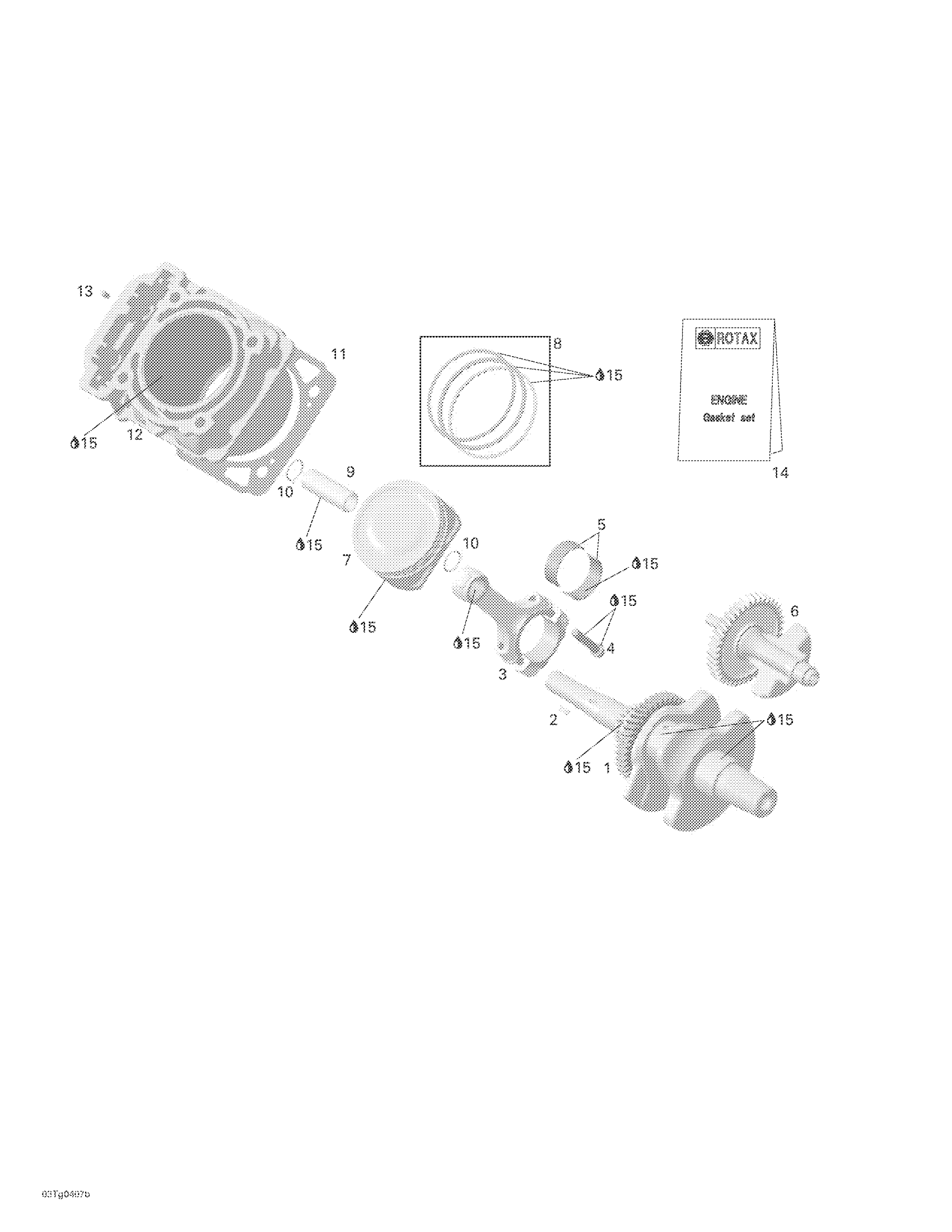

Can-Am Outlander MAX 400, 2004 Crankshaft, Piston And Cylinder Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 2

420296672

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.29

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$232.64

4

Connecting Rod Screw M8 X 1

420641645

$13.58

5

Plain Bearing 40 X 43 X 15

420233980

$26.89

6

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

7

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$163.34

Piston Ass'y, 82 mm | 330HO / Includes 7 to 8

420685712

$154.58

8

Piston Ring Set | 400HO

420296774

$81.99

Piston Ring Set | 330HO

420684384

$89.09

9

Piston Pin

420216270

$26.99

10

Piston Circlip

420845106

$3.52

11

Gasket

420630210

$12.42

12

Cylinder Ass'y | 400HO / Includes 12 to 13

420613586

Unavailable

Cylinder Ass'y | 330HO / Includes 12 to 13

420613886

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Drive Pin 5 X 10

420929650

$1.34

14

Gasket Set | 400HO

420684125

Unavailable

Gasket Set | 330HO

420684127

Unavailable

15

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
