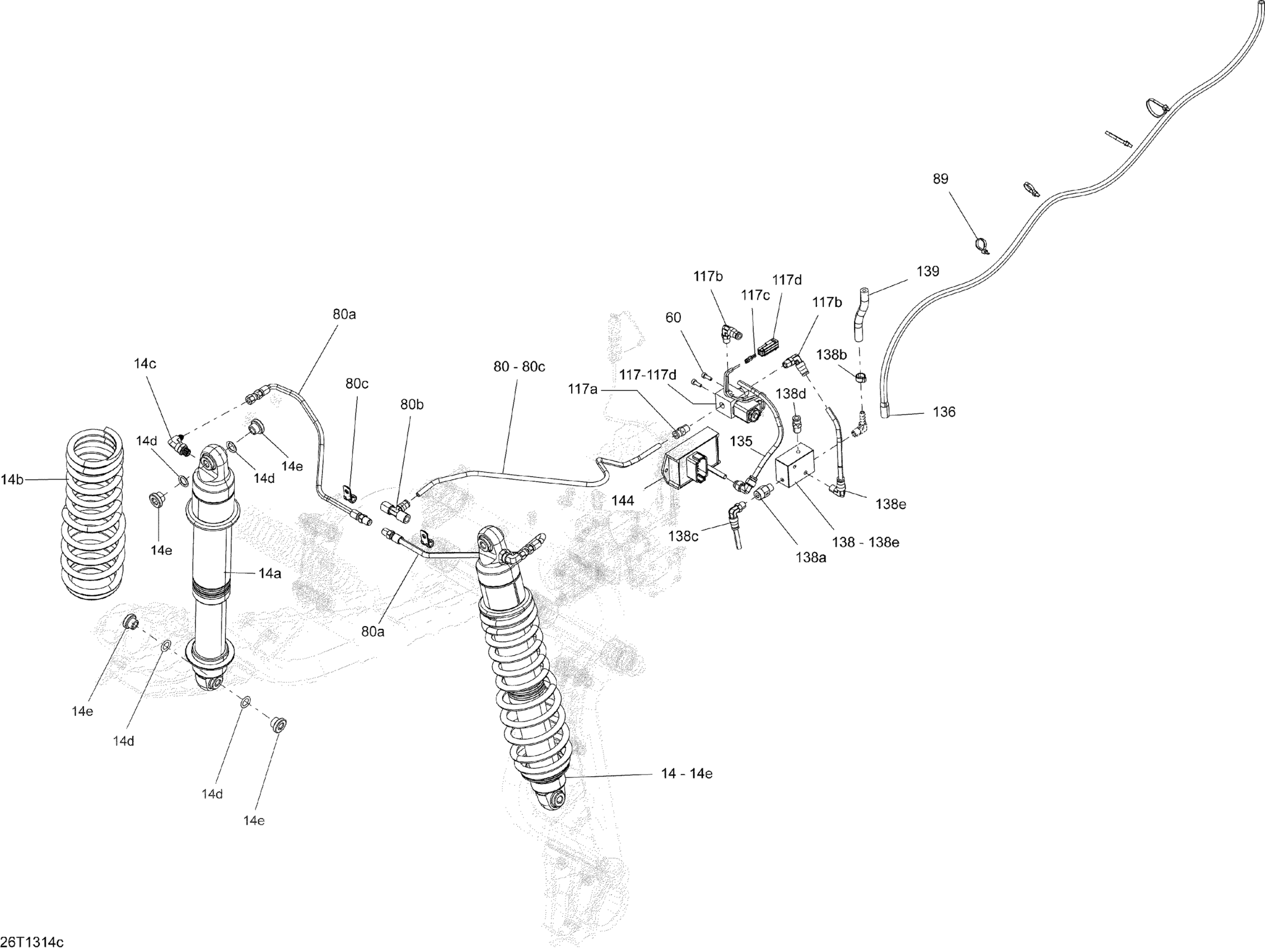

Can-Am Outlander MAX 1000EFI LTD, 2013 Rear Suspension LTD Diagram

#

Description
Price

14

Not Available As Spare Part - Friction Washer

Unavailable

14a

Rear Shock | LTD

706000930

$418.43

14b

Black Rear Spring

706002785

Unavailable

14c

Elbow 90° | XMR

706001200

$46.12

14d

O-Ring Bushing

715900209

$13.52

14e

Interior Bushing | XTP

715900210

$14.75

60

Socket Head Screw M4 X 12

205041254

$2.02

80

REAR SHOCK DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001341

$173.05

80a

Not Available As Spare Part - Friction Washer

Unavailable

80b

T Fitting

706000946

$36.89

80c

Clamp

293650256

$4.36

89

Tie Wrap 142 mm

293750002

$0.88

117

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership | LTD

706001367

Unavailable

117a

Connector

706000869

$33.05

117b

Elbow 90°

706000928

$26.12

117c

Male Terminal

515175232

$1.49

117d

Male Terminal Housing, 2 Circuits

515175654

$7.48

135

Hose Ass'y

706001216

$36.89

136

Polyurethane Hose 10000Mm Long

219704410

$46.12

138

HOSE ASS'Y - Call your local BRP dealership | Includes 108 to 108e

706001388

Unavailable

138a

Check Valve

706000860

$39.97

138b

Clamp Oetiker

293650207

$11.66

138c

Elbow 90°

706000928

$26.12

138d

Connector

706000869

$33.05

138e

Elbow 90°

706000872

$26.89

144

Calibrated Module | LTD

710004405

$384.99
