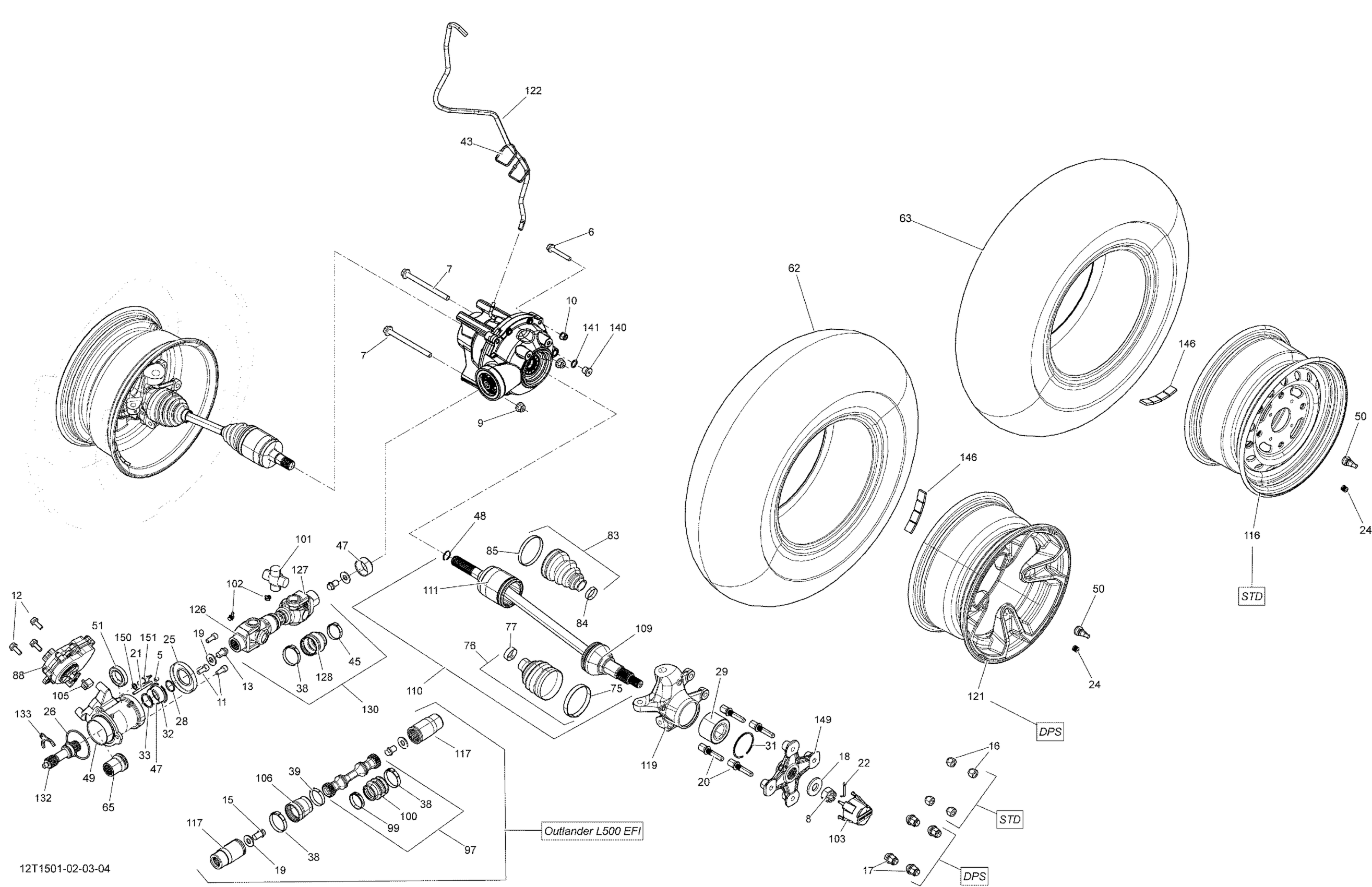

Can-Am Outlander L 450 EFI, 2015 Drive System, Front _12T1501 Diagram

#

Description
Price

5

Pressure Screw M8 X 8 | 4X4

206580890

$1.65

6

Hex. Flange Screw M8 X 55

207685544

$4.41

7

Hex. Flange Screw M10 X 125

230602546

$6.08

8

Hex. Flange Castellated Nut M18

232291413

$2.82

9

Hex. Flange Elastic Nut M10

233201436

$1.74

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

12

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.23

13

Hex Flange Screw M12 X 16

250001039

$1.74

15

Not Available As Spare Parts

XXX

Unavailable

16

Steel Wheel Nut

250100042

$2.48

17

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

17

Black, Wheel Nut M10 X 1.25

250100184

$2.48

18

Conical Spring Washer M18

250200171

$5.28

19

Flat Washer M12

250200102

$1.74

20

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

21

Dowell Pin | 4X4

250400025

$7.37

22

Cotter Pin

250400036

$1.74

24

Valve Cap

293000110

$1.18

25

Oil Seal

293250348

$18.43

26

O-Ring

293300091

$7.37

28

O-Ring

293300179

$2.31

29

Ball Bearing

293350150

$51.93

31

Circlip

293370019

$4.98

32

Circlip | 4X4

293370029

$5.52

33

Circlip | 4X4

293370030

$2.75

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

43

Tie-Rap 180 mm

414115200

$0.09

45

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

47

Wear Ring | 4X4

705400036

$25.35

48

Circlip Joint | Not shown

705401349

$5.38

49

Housing

705401632

$156.89

50

Rim Valve With Cap

705400193

$6.69

51

Ball Bearing | 4X4

705400249

$24.58

62

Tire 205 X 80 R12

705402890

$133.82

62

Front Tire | STD Europe

705401626

$204.58

63

Tire 205 X 80 R12

705402890

$133.82

63

Front Tire | STD Europe

705401626

$204.58

65

Coupling Sleeve | 4X4

705400389

$32.28

75

Oetiker Clamp, Large

715900262

$7.84

76

CV Boot Kit, Wheel Side

715900298

$41.51

77

Oetiker Clamp, Small

715900317

$10.20

83

CV Boot Kit, Differential Side

715900299

$41.51

84

Oetiker Clamp, Small

715900317

$10.20

85

Oetiker Clamp, Large

715900318

$10.20

88

Actuator Ass'Y | Includes 72 to 74

715900502

$457.66

97

Not Available As Spare Parts

XXX

Unavailable

99

Oetiker Gear Clamp 36.1MM

509000045

$3.55

100

Rubber Boot

715900118

$13.83

101

Universal Joint Kit

703500845

$78.43

102

Grease Fitting | T3

715900295

$4.62

103

Wheel Cap

705400928

$11.06

105

Slider | 4X4

705402139

$46.12

106

Not Available As Spare Parts

XXX

Unavailable

109

CV Joint

715900297

$253.82

110

RH Front - Premium CV Axle

705401428

$233.82

110

LH Front - Premium CV Axle

705401429

$232.74

111

RH Plunging CV Joint

715900300

$253.82

111

LH Plunging CV Joint

715900301

$253.82

116

Black,12" X 6 Rim | STD

705401199

$109.97

117

Not Available As Spare Parts

XXX

Unavailable

119

LH Knuckle

705403307

$175.35

119

RH Knuckle

705403308

$175.35

121

Silver Rim | Package-DPS

705401402

$139.97

121

Deep Black, Rim R12 X 6 | Package-DPS Camo

705401522

$139.97

122

Polyurethane Hose 10000Mm Long

219704410

$46.12

126

YOKE JOINT - Call your local BRP dealership

715900293

Unavailable

127

Fixed Yoke Joint

715900116

$59.97

128

Rubber Boot

715900118

$13.83

130

Front Drive Axle

705403293

$170.74

132

Idler Shaft Gear

705401509

$101.51

133

Shifter Lever Plate | 4X4

705401553

$16.89

140

Fill Level Plug | 4X4

705500504

$7.61

141

Copper Washer | 4X4

705500506

$0.36

146

1/2 Oz Weight

219704465

$4.35

149

Wheel Hub Ass'y

705501716

$129.20

150

Copper Washer

705601628

$4.34

151

SWITCH - Call your local BRP dealership | 4X4

710000324

Unavailable
