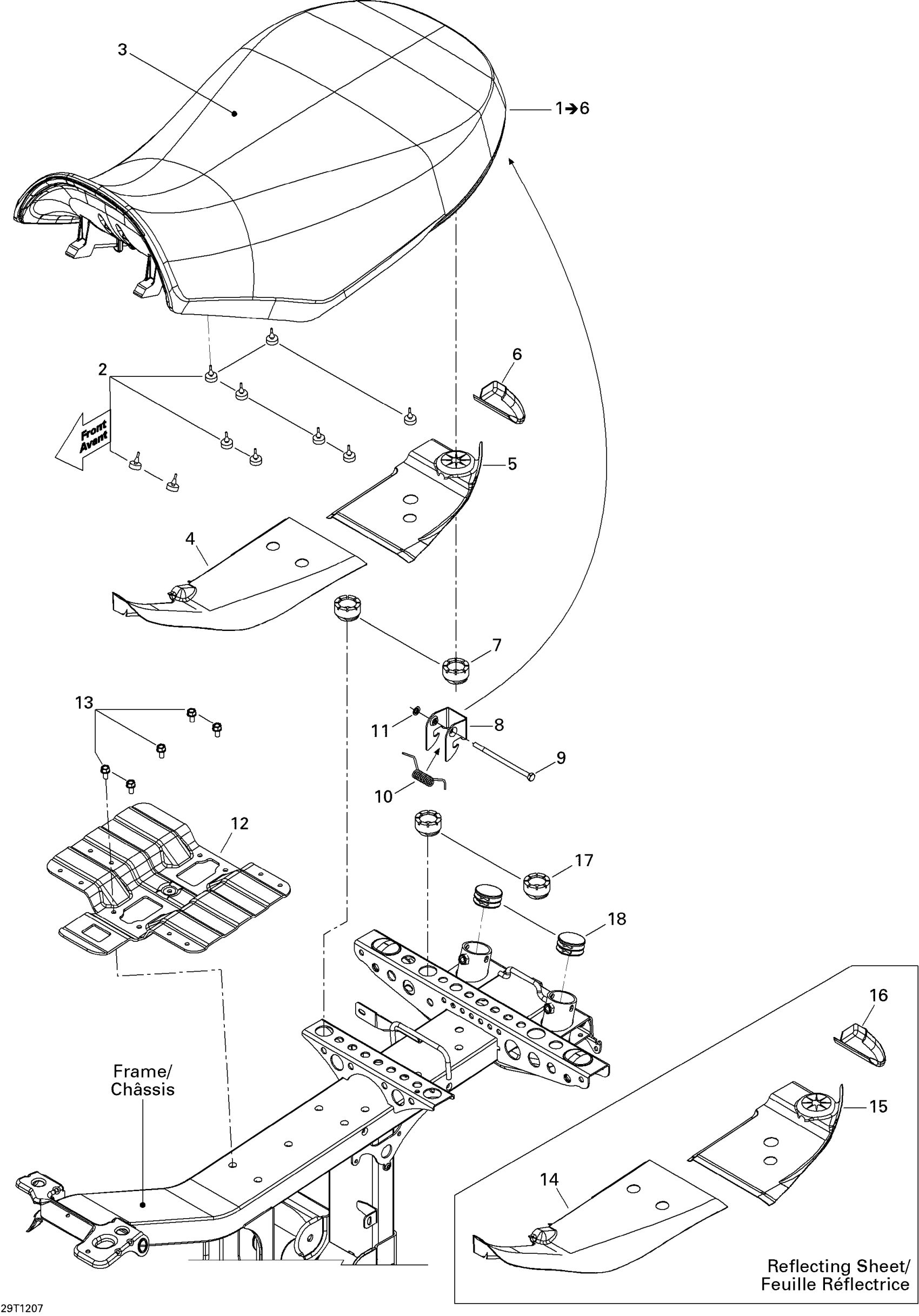

Can-Am Outlander 800REFI Xmr, 2012 Seat Diagram

#

Description
Price

1

SEAT ASSEMBLY - Call your local BRP dealership | Includes 1 to 3

708001736

Unavailable

2

Rubber Stopper

708000759

$3.61

3

Seat Cover

708000731

$83.05

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000955

$4.69

6

HEAT SHIELD - Call your local BRP dealership

708000957

$4.58

7

Bumper Rubber

708000760

$9.11

8

Latch, Black

708000144

$11.09

9

Hex. Screw M6 X 110

230061034

$1.74

10

Spring

708000369

$8.60

11

Push Nut

732610072

$1.72

12

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.56

14

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

15

REFLECTING SHEET - Call your local BRP dealership

708000955

$4.69

16

HEAT SHIELD - Call your local BRP dealership

708000957

$4.58

17

Bumper Rubber

708000760

$9.11

18

Cap

705202455

$4.62
