Description

Price

1

Upper Arm Bracket

706201360

$156.89

2

L.H. ARM - Call your local BRP dealership

706201220

$123.05

3

R.H. ARM - Call your local BRP dealership

706201223

$123.05

4

Bushing

706200181

$3.68

6

Sleeve

706201587

$4.60

7

Hex. Flange Screw M10 X 70

207607046

$2.91

8

Ball Joint

706200653

$41.51

9

Hex. Flange Elastic Nut M10

233201436

$1.74

10

Suspension Arm

706205905

$156.89

11

Grease Fitting

408200700

$2.80

11a

GREASE FITTING - Call your local BRP dealership

408200600

$6.15

13

Suspension Arm

706205905

$156.89

14

Hex. Flange Screw M10 X 65

207606536

$3.61

15

Hex. Flange Elastic Nut M10

233201436

$1.74

16

Hex. Flange Screw M10 X 55

207605544

$2.78

17

FRONT SHOCK ASS'Y - Call your local BRP dealership

706201232

Unavailable

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706201231

$99.20

19

CONNECTOR MALE HEX. 1/4X5/16-32 UNEF - Call your local BRP dealership

706201356

$15.35

22

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$9.52

23

Hex. Flange Screw M8 X 25

207682544

$0.90

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

27

Hex. Flange Elastic Nut M5

233251414

$1.66

28

Joint Attachment

706200444

$46.12

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

$0.92

31

Hex. Flange Elastic Nut M8

233281414

$1.14

32

Circlip 32 mm

293370009

$1.49

33

BRACKET - Call your local BRP dealership

706201014

$7.66

34

Nut M12

250100099

$1.64

35

Hardened Washer

706200281

$2.34

36

L.H. BRACKET - Call your local BRP dealership

706201035

$24.58

37

R.H. BRACKET - Call your local BRP dealership

706201036

Unavailable

38

SPACER - Call your local BRP dealership

706200724

$13.05

39

Hex. Elastic Flange Nut M8

233281416

$1.25

40

Cotter Pin

211400017

$0.25

41

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

42

Hex. Flange Elastic Nut M10

233201414

$1.26

43

Hex. Flange Screw M8 X 70

207687044

$6.11

44

Hex. Flange Elastic Nut M8

233281414

$1.14

45

HOSE ASS'Y - Call your local BRP dealership

706201351

$16.89

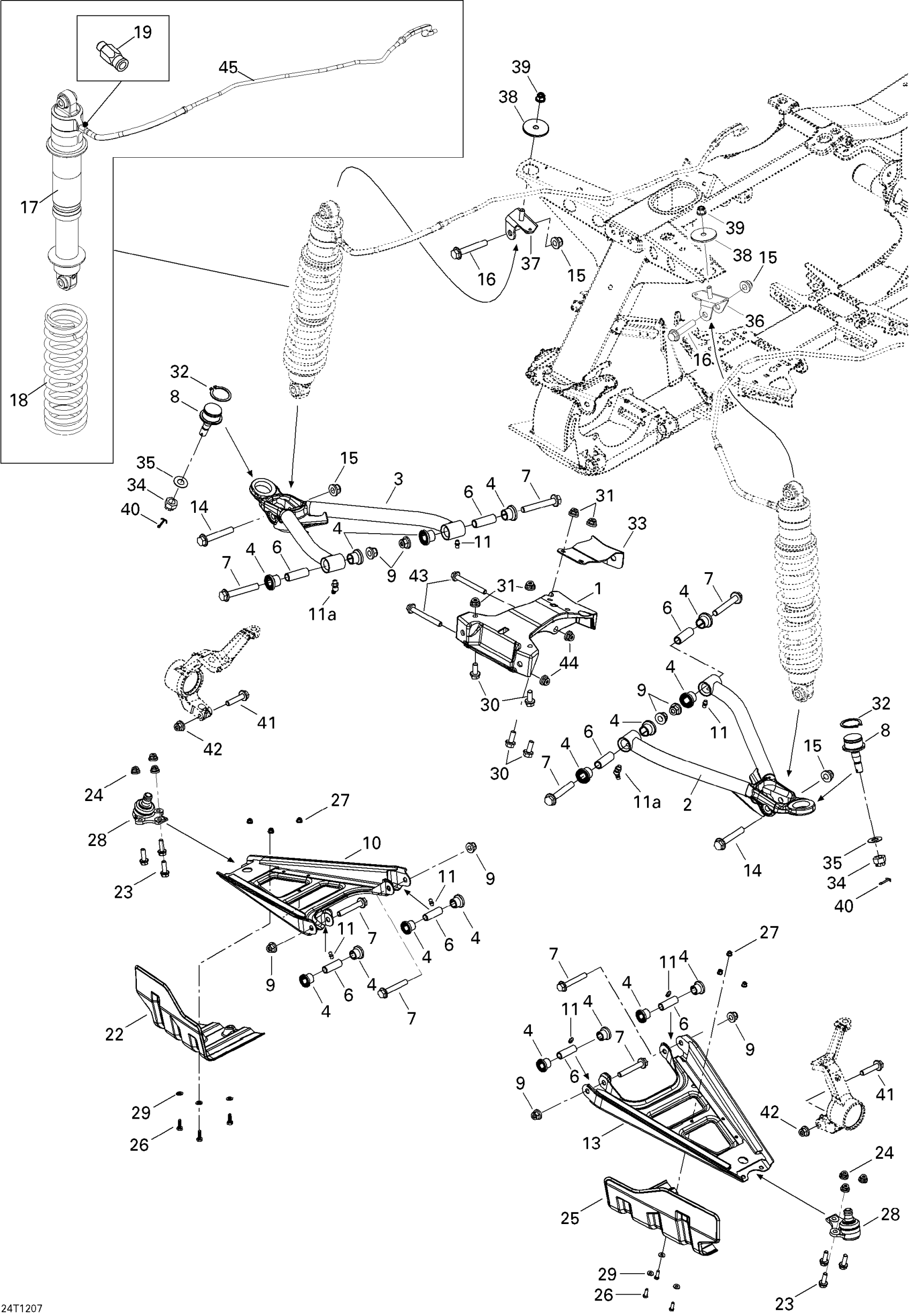

Can-Am Outlander 800REFI Xmr, 2012 Front Suspension Diagram
