Description

Price

1

Copper Washer

420250640

$0.81

2

Plug screw

420841924

$13.58

3

Oil Sieve

420256322

$27.66

4

Cover Sieve

420210661

$13.58

5

Taptite Screw M5 X 16

420941928

$0.39

6

Oil Filter

420256188

$11.14

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

$2.68

10

Oil Pressure Switch

420256915

$38.43

11

O-Ring

420631640

$2.06

12

Oil Dipstick

420256802

$16.89

13a

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$86.89

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420430555

$17.66

16

Oil Seal

420430555

$17.66

17

Oil Pump Rotor

420256348

$61.72

18

Needle Pin

420232731

$1.56

19

Oil Pump Shaft

420237059

$28.43

20

Oil Pump Cover

420210646

$46.89

21

Torx Head Screw M5 X 16

420640823

$1.85

22

Thrust Washer

420827590

$3.86

23

Needle Pin

420232431

$3.67

24

Oil Pump Gear, 33 Teeth

420434320

$13.49

25

Snap Ring

420245330

$1.43

26

Idle Gear, 38 Teeth

420434300

$13.49

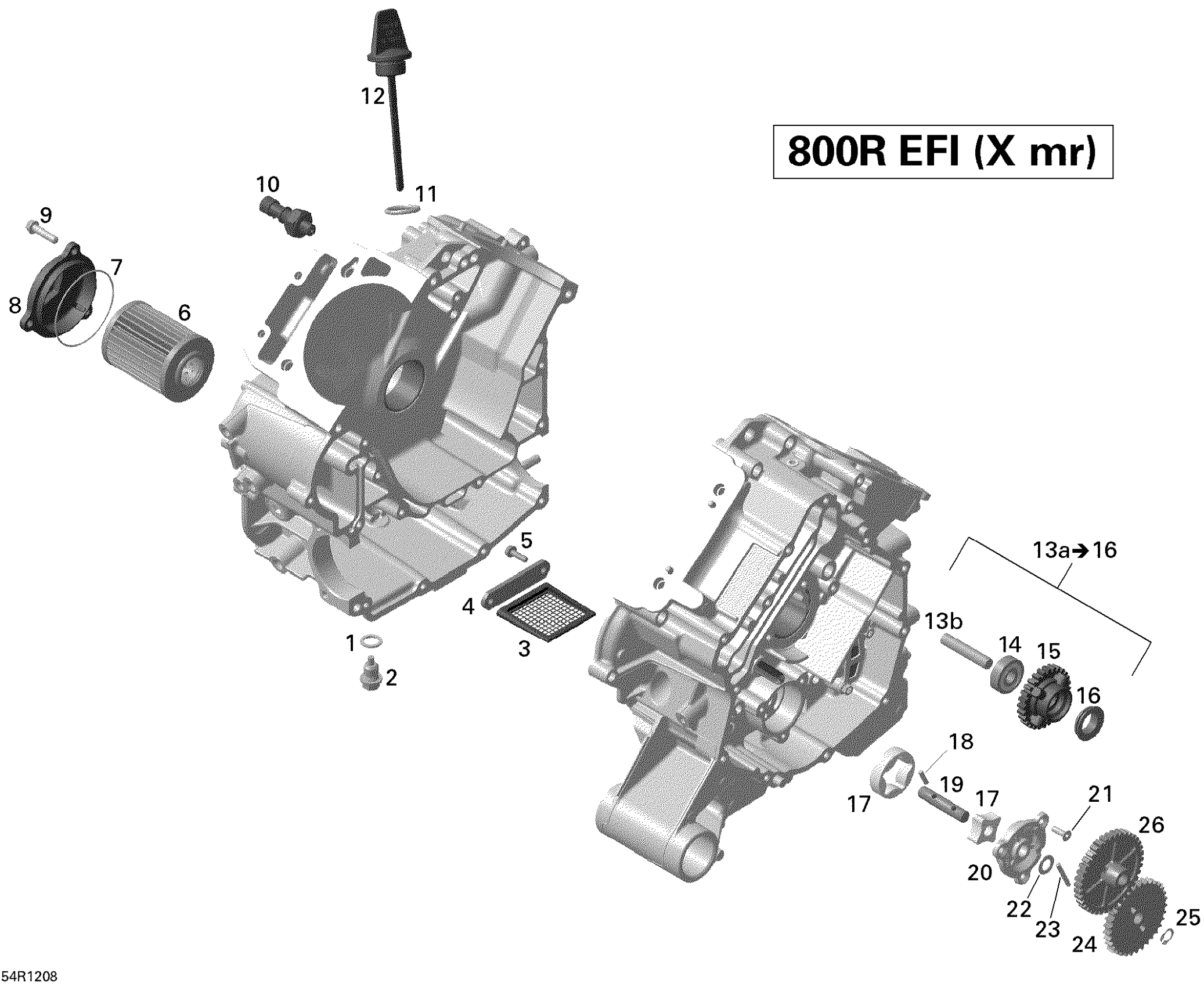

Can-Am Outlander 800REFI Xmr, 2012 Engine Lubrication Diagram

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
