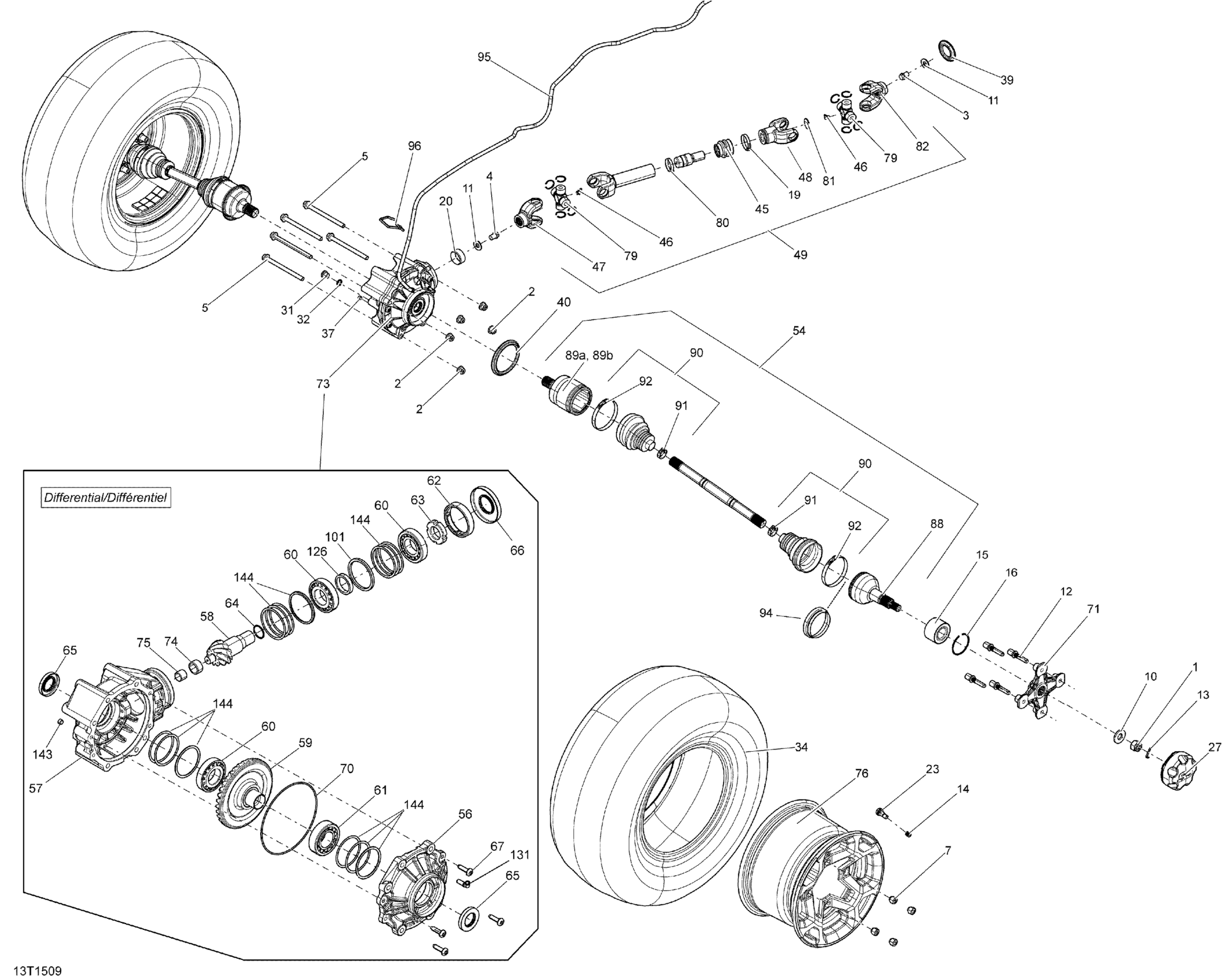

Can-Am Outlander 800R EFI Xmr, 2015 Drive System, Rear _13T1509 Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$3.24

2

Hex. Flange Elastic Nut M10

233201436

$2.00

3

Hex Flange Screw M12 X 16

250001039

$2.00

4

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.00

5

Hex. Flange Screw M10 X 135

250001041

$5.12

7

Black, Wheel Nut M10 X 1.25

250100184

$3.54

10

Conical Spring Washer M18

250200171

$6.06

11

Flat Washer M10 | 4X4

250200014

$1.34

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

13

Cotter Pin

250400036

$2.00

14

Valve Cap

293000110

$1.15

15

Ball Bearing

293350150

$50.34

16

Circlip

293370019

$4.68

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

20

Wear Ring | 4X4

705400036

$24.60

23

Rim Valve With Cap

705400193

$6.49

27

Wheel Cap

705401318

$20.12

31

Fill Level Plug | 4X4

705500504

$8.73

32

Copper Washer | 4X4

705500506

$0.42

34

TIRE_30X9R14 - Call your local BRP dealership

705400962

Unavailable

37

Drain Plug | 4X4

705500894

$10.24

39

Protector

705501123

$5.90

40

Wear Ring

705501124

$6.73

45

Rubber Boot

715900118

$13.28

46

Grease Fitting

715900184

$4.09

47

Joint

715900271

$23.10

48

Spline Yoke

715900106

$38.03

49

Shaft Ass'y Kit

703500988

$301.46

54

Performance CV Axle - Rear Left

705501847

$255.94

54

Performance CV Axle - Rear Right

705501848

$255.94

56

Rear Cover

705502547

$151.46

57

Rear Pinion Cover

705502180

$270.87

58

Differential Gear Kit

703500870

$323.61

59

Differential Gear Kit

703500870

$323.61

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Nut

705501549

$30.57

63

Nut

705501550

$20.12

64

O-Ring

705501554

$3.94

65

Oil Seal

705501556

$16.39

66

Oil Seal

705501557

$17.88

67

Screw

705502063

$2.51

70

O-Ring

705501711

$8.97

71

Wheel Hub Ass'y

705501716

$123.10

73

Final Drive Unit

705502546

$1,064.15

74

INNER RING - Call your local BRP dealership

705501761

Unavailable

75

Needle Bearing Ass'y

703500836

$52.21

76

Matte Black Rim

705401552

$146.24

79

Universal Joint

715900270

Unavailable

80

Oetiker Gear Clamp 36.1MM

509000045

$4.07

81

COVER - Call your local BRP dealership

715900187

Unavailable

82

Fixe Yoke

715900296

$23.10

88

CV Joint

705501776

Unavailable

90

Boot Kit

705501864

$39.52

91

Oetiker Clamp, 27.3 mm

715900242

$9.00

92

Oetiker Clamp, 82.1 mm

715900241

$9.00

94

Joint Protector

705501842

$7.60

95

Polyurethane Hose 10000Mm Long

219704410

$52.96

96

Tie Wrap 368 mm

293750008

$0.97

101

Not Available As Spare Part - Friction Washer

Unavailable

126

Not Available As Spare Part - Friction Washer

Unavailable

131

Breather Tube

705501584

$13.45

143

Plug Drain

705501724

$5.94

144

Differential Shim Kit

703500835

$42.51

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$5.10
