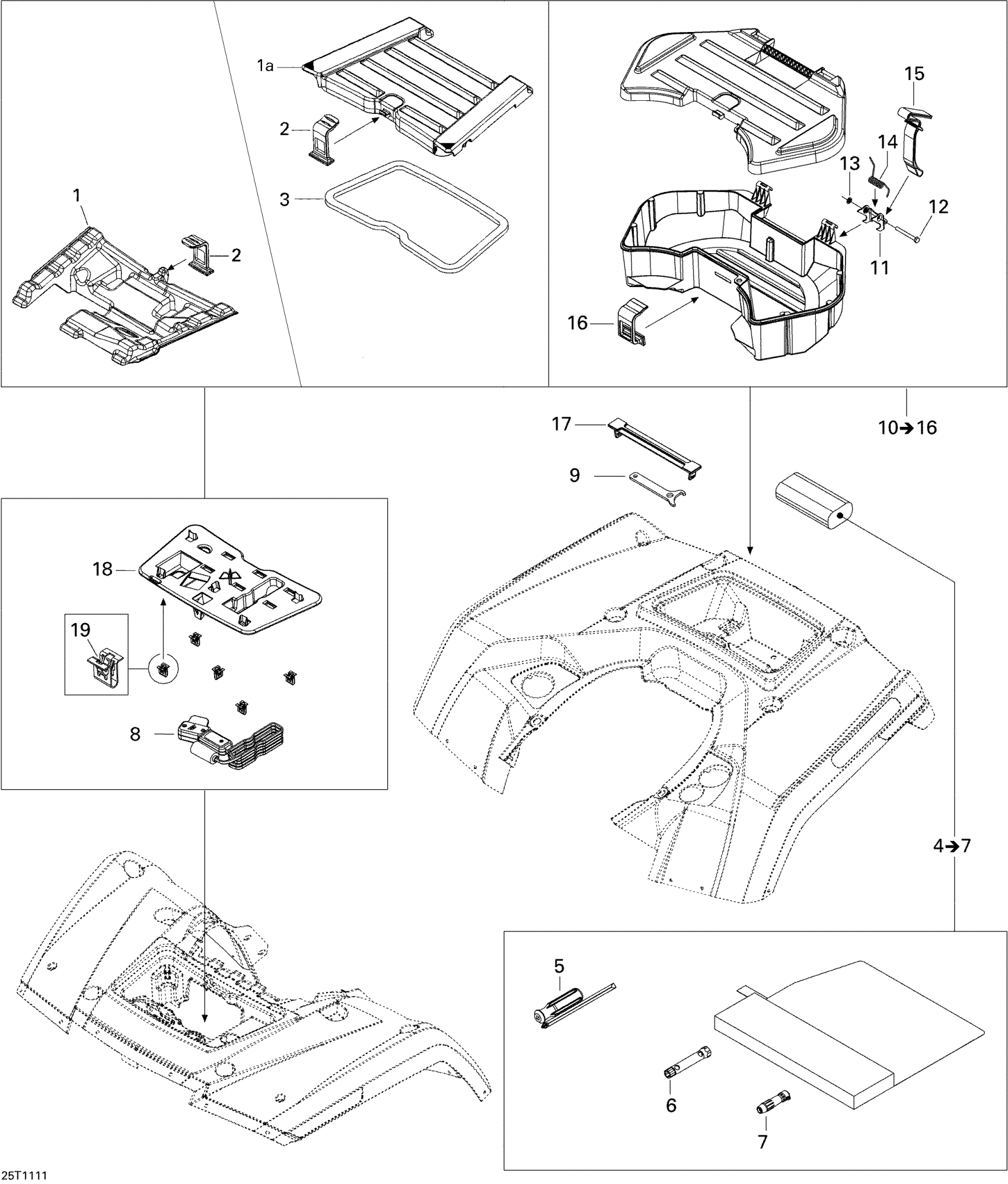

Can-Am Outlander 800R EFI, XMR, 2011 Front and Rear Trays Diagram

#

Description
Price

1

FRONT COVER - Call your local BRP dealership

705004642

$13.05

1a

Storage Cover

705003492

$59.97

2

Cover Latch

708200120

$13.52

3

Neoprene Seal

293250192

$32.28

4

TOOL KIT WITHOUT BRP LOGO - Call your local BRP dealership | Includes 3 to 15

708200124

Unavailable

5

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

6

Socket Wrench 10/13 mm

529014900

$0.95

7

PRESSURE GAUGE - Call your local BRP dealership

529000052

$15.35

8

Remote Control

710002270

$55.35

9

Adjustment Wrench

529000035

$2.19

10

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

$86.89

11

LATCH - Call your local BRP dealership

708200066

$13.83

12

Hex. Screw M6 X 55

207065544

$1.70

13

Push Nut

732610072

$1.72

14

Spring

708000369

$8.60

15

BELT - Call your local BRP dealership

510004495

Unavailable

16

Cover Latch

708200120

$13.52

17

COVER LATCH KIT - Call your local BRP dealership

708200121

$9.74

18

SUPPORT - Call your local BRP dealership | XT

708200075

Unavailable

19

Edge Clip

517302785

$0.70
