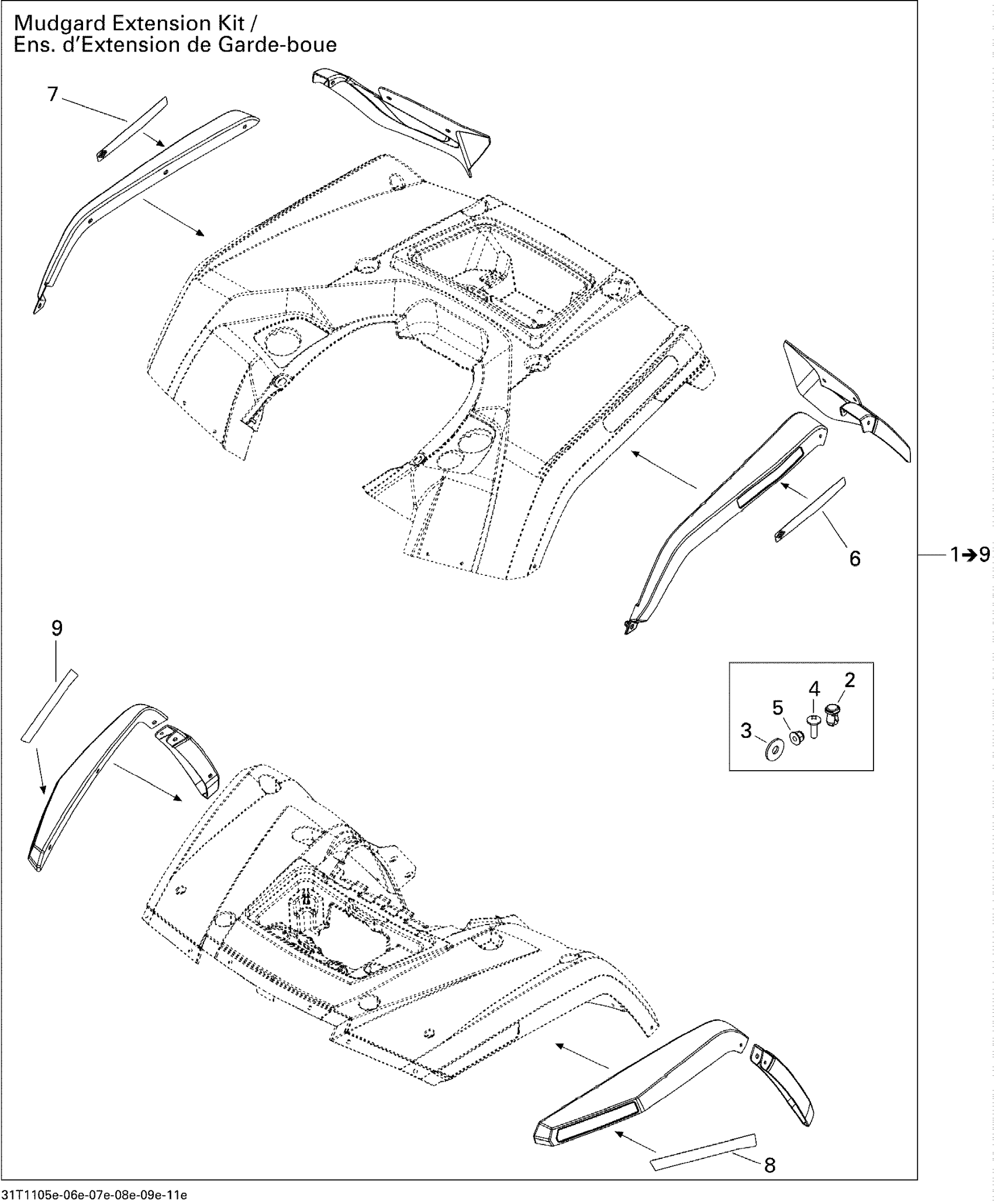

Can-Am Outlander 800R EFI, XMR, 2011 Body And Accessories 5, Mudguard Diagram

#

Description

Price

1

Mudguard Extension Kit | Includes 29 to 33

715000533

$204.58

2

Tuflok Plastic Rivet

293150230

$1.21

3

Flat Washer M8

234082430

$2.06

4

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

$3.17

5

Flange Elastic Nut M6

233261434

$3.61

6

LH REAR LATERAL REFLECTOR - Call your local BRP dealership

704901429

$8.94

7

RH REAR LATERAL REFLECTOR - Call your local BRP dealership

704901430

$7.66

8

LH FRONT LATERAL REFLECTOR - Call your local BRP dealership

704901431

Unavailable

9

RH FRONT LATERAL REFLECTOR - Call your local BRP dealership

704901432

$10.57
