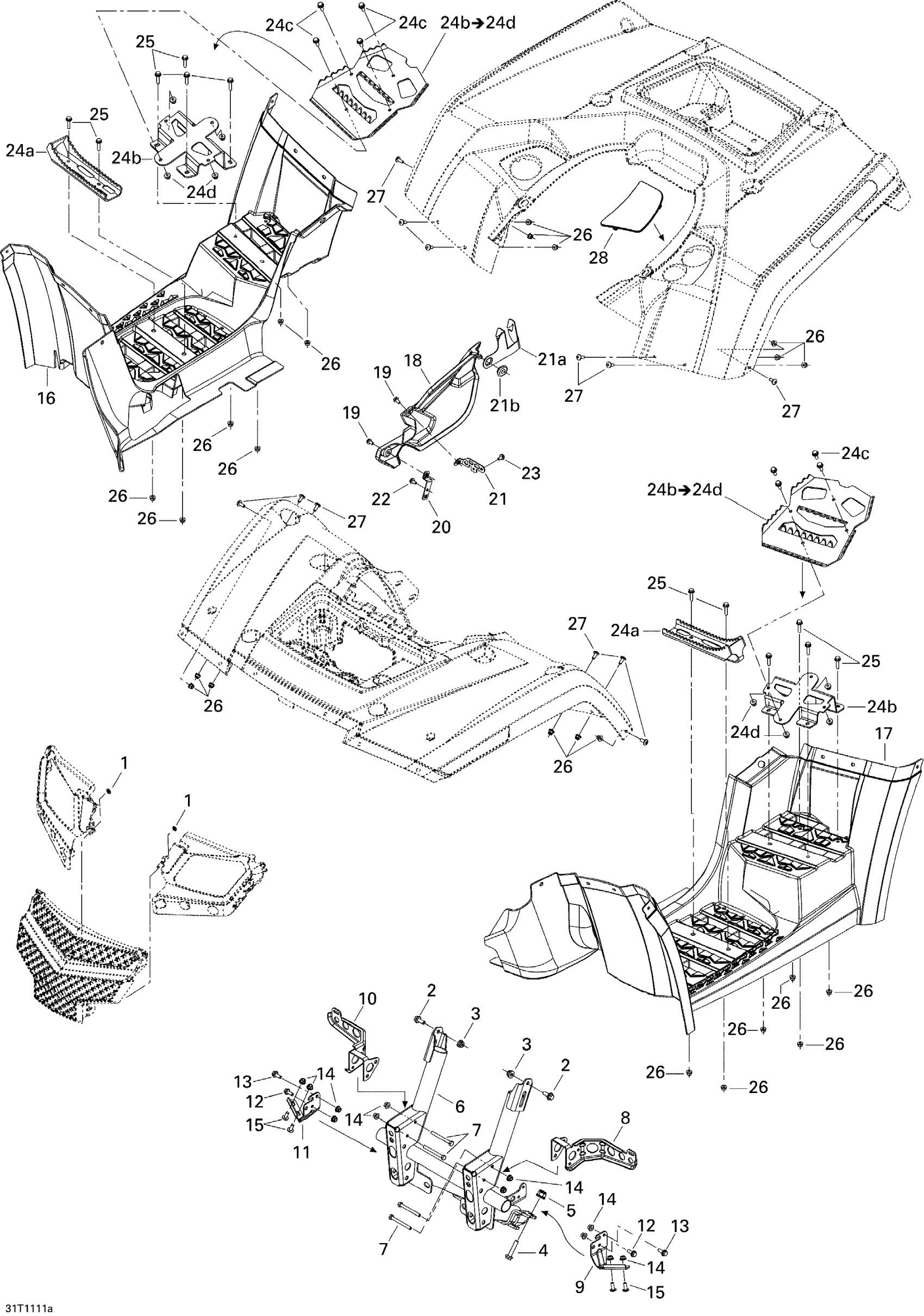

Can-Am Outlander 800R EFI, XMR, 2011 Body And Accessories 1 Diagram

#

Description
Price

1

Push Nut

732610072

$1.72

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Hex. Flange Screw M10 X 30

207603044

$1.70

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

FRONT BUMPER - Call your local BRP dealership

705003654

$186.12

7

Hex. Screw M6 X 60

207066044

$0.56

8

LH FACIA SUPPORT - Call your local BRP dealership

705002925

Unavailable

9

LH LOWER FACIA SUPPORT - Call your local BRP dealership

705003037

$9.74

10

RH FACIA SUPPORT - Call your local BRP dealership

705002926

$16.89

11

RH LOWER FACIA SUPPORT - Call your local BRP dealership

705003039

$9.74

12

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Hex. Flange Screw M6 X 16

207661644

$0.61

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Torx Screw M6 X 16

250000755

$0.72

16

RH Footboard

705002487

$170.74

17

LH Footboard

705003633

$170.74

18

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

19

Hex. Flange Screw M6 X 12

210261250

$1.56

20

Engine Cover Support

705003646

$7.69

21

Engine Cover Support

705011461

$8.46

21a

ENGINE COVER SUPPORT - Call your local BRP dealership

705002121

Unavailable

21b

Oval Washer

705005156

$4.85

22

Hex. Flange Screw M6 X 12

210261250

$1.56

23

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

24a

Footrest

705002326

$41.51

24b

FOOTREST, XMR - Call your local BRP dealership | Includes 24b to 24d

715001137

Unavailable

24c

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

24d

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

Hex. Flange Screw M6 X 25

250000787

$1.83

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Torx Screw M6 X 16

250000755

$0.72

28

LH Rear Body Panel Cap

705017923

$12.68
