Description

Price

1

LH SWING ARM - Call your local BRP dealership

706001188

$222.28

2

Rh Swing Arm

706003427

$290.74

3

Sway Bar

706001078

$92.28

4

Ball Bearing

293350037

$128.43

5

Circlip

293370041

$9.98

6

Nut

706000221

$23.05

7

Cover

706000749

$15.35

8

Circlip 45 mm

293370027

$4.98

9

Lever

706000554

$69.20

10

Washer

250200045

$7.37

11

Elastic Stop Nut M18

232591414

$3.48

12

LH PROTECTOR - Call your local BRP dealership

706000333

$14.06

13

RH PROTECTOR - Call your local BRP dealership

706000334

$14.06

14

REAR SHOCK - Call your local BRP dealership

706001000

Unavailable

15

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706001056

Unavailable

16

Hex. Flange Screw M10 X 55

207605544

$2.78

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

19

Loctite 271, 10 ml

293800005

$20.77

20

Oetiker Clamp

293650162

$8.45

21

Loctite 271, 10 ml

293800005

$20.77

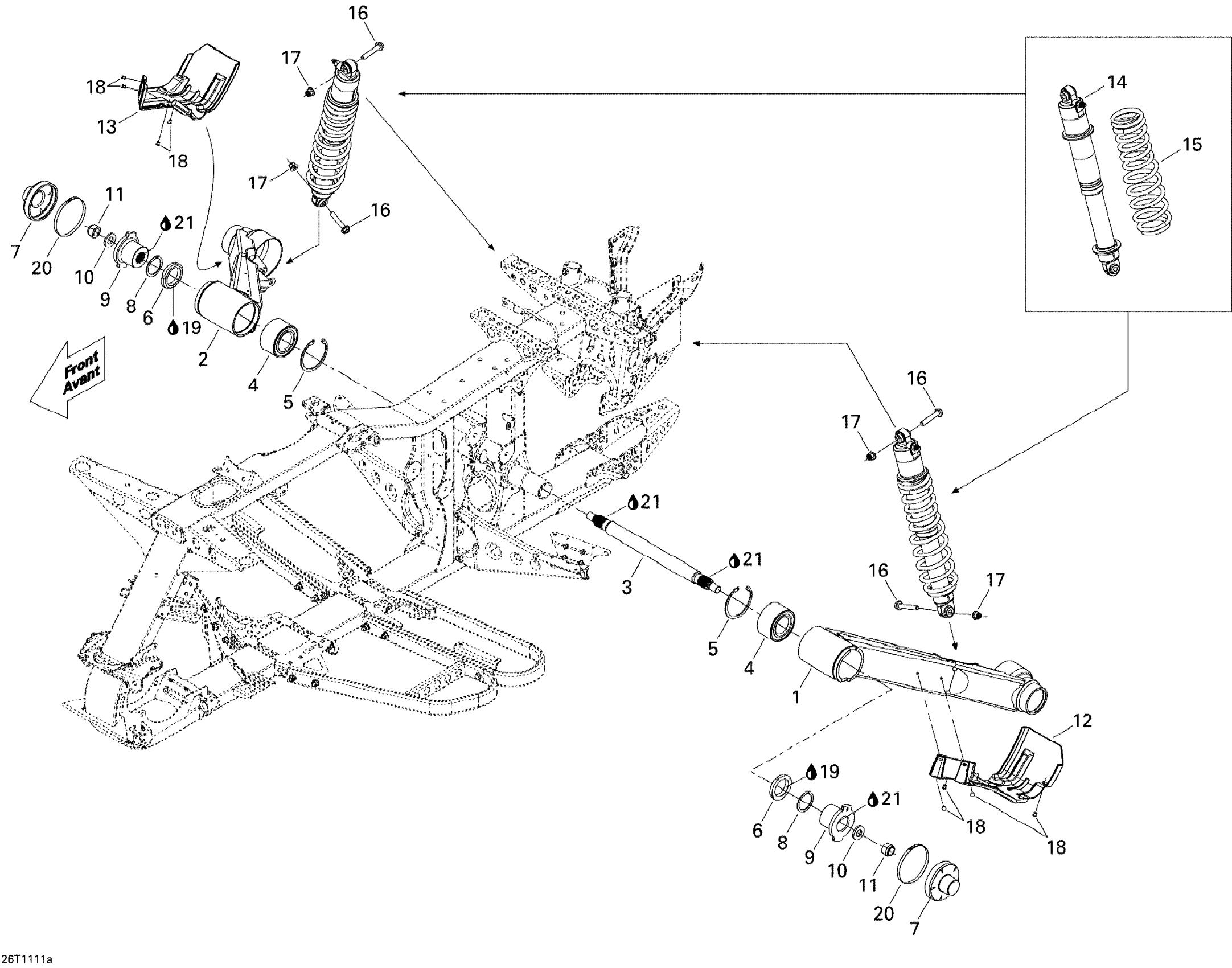

Can-Am Outlander 800R EFI, XMR, 2011 Rear Suspension Diagram

REAR SHOCK - Call your local BRP dealership

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership
