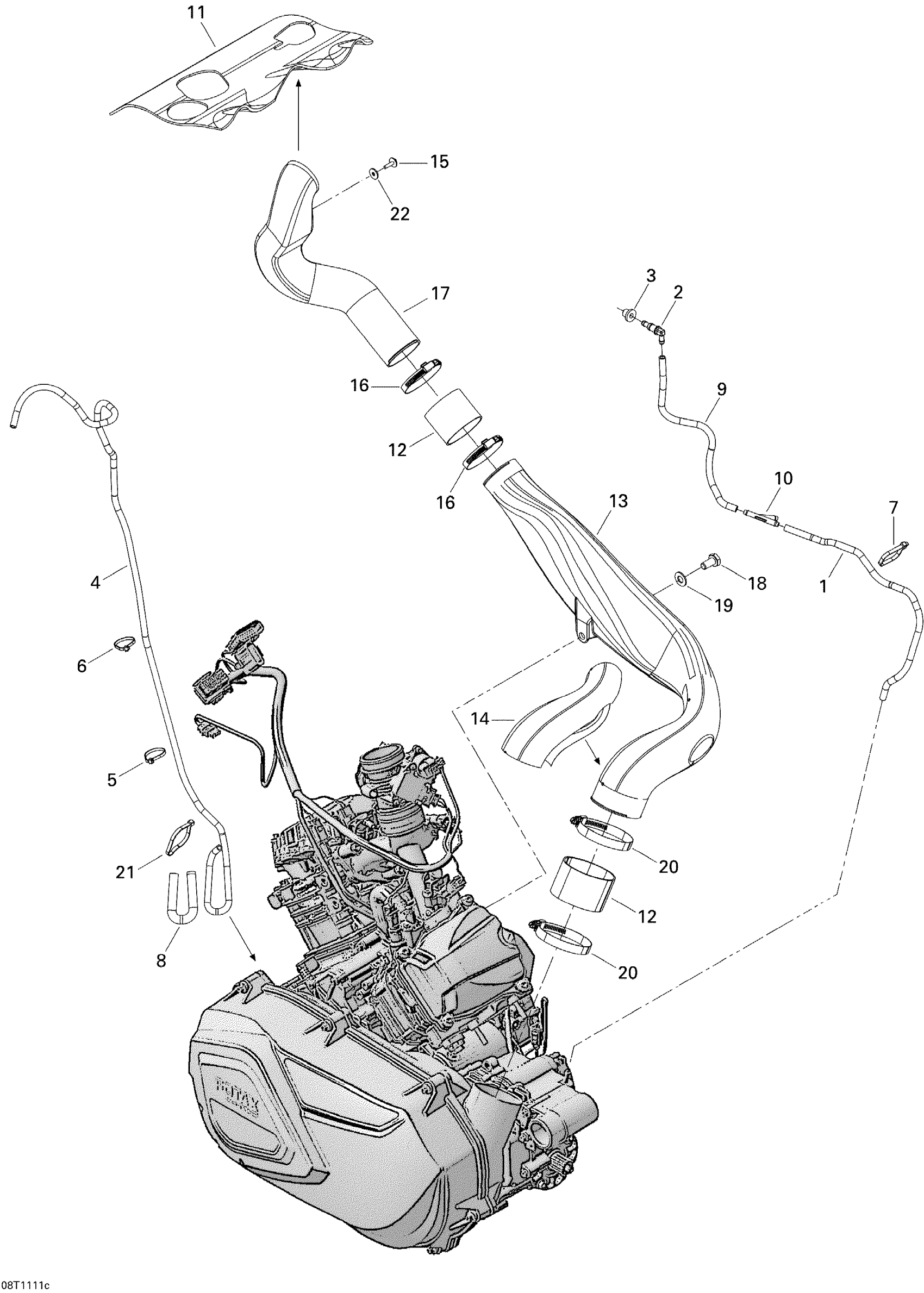

Can-Am Outlander 800R EFI, XMR, 2011 Engine 3 Air Outlet Diagram

#

Description
Price

1

Polyurethane Hose 10000Mm Long

219704410

$46.12

2

Elbow Male Connector

414580600

$3.50

3

Grommet

293720029

$1.13

4

Polyurethane Hose 10000Mm Long

219704410

$46.12

5

Tie-Rap 180 mm

414115200

$0.09

6

Tie-Rap 180 mm

414115200

$0.09

7

Tie-Rap 180 mm

414115200

$0.09

8

Was 409901700 Tubing (9 mm)

219704399

$79.97

9

Polyurethane Hose 10000Mm Long

219704410

$46.12

10

Y-Fitting

293710059

$8.19

11

Upper Water Deflector

707000925

$15.22

12

Adaptor

707000789

$10.98

13

Air Outlet

707000870

$32.28

14

REFLECTIVE SHEET - Call your local BRP dealership

707000984

Unavailable

15

Screw M4 X 16

250000725

$2.87

16

Norma Clamp

293650079

$8.89

17

UPPER AIR OUTLET - Call your local BRP dealership

707000900

Unavailable

18

Socket Head Screw M10 X 25

205002544

$1.25

19

Flat Washer 10 mm

234001410

$0.98

20

Norma Gear Clamp

293650118

$9.74

21

Tie-Rap 180 mm

414115200

$0.09

22

Washer

517124300

$0.16
