Description

Price

1a

Crankcase Ass'y | Includes 1a to 14

420685317

$1,179.99

1

REBUILD-BLOCK LONG 810 - Call your local BRP dealership

421000704

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$4.09

4

Drive Pin 5 X 10

420929650

$1.69

5

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.59

6

Plug Screw M10 X 1

420641323

$14.49

7

Plug Screw M12x1,5

420840658

$7.69

8

Location Pin 10 M6x50

420229302

$3.29

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

12

Oil Seal

420650315

$11.99

13

Needle Pin

420932780

$7.59

14

Gasket

420651220

$36.99

15

Torx Flange Screw M8 X 65

420440402

$7.59

16

Torx Flange Screw M6 X 35

420641258

$3.49

17

Torx Flange Screw M6 X 75

420440657

$4.49

18

Reed Valve

420224721

$19.49

19

Reed Valve Stop

420224725

$11.99

20

Torx Flange Screw M6 X 16

420641048

$2.99

21

Dowel Pin 10 X 13

420929670

$11.49

22

Stud

420240816

$7.09

23

Stud

420840718

$11.11

24

Gasket

420651211

$27.99

25a

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

25b

Not Available As Spare Part - Friction Washer

Unavailable

26

Bearing Sleeve

420233995

$20.99

27

Oil Seal

420631933

$28.99

28

Plug Screw M10 X 1

420641323

$14.49

29

Hose Nipple

420256332

$17.49

30

Torx Flange Screw M6 X 35

420641258

$3.49

31

Sealing Ring

420950141

$2.09

32

Torx Flange Screw M8 X 16

420440852

$4.19

33

LONG BLOCK, 800R EFI - Call your local BRP dealership

420081068

Unavailable

33

REBUILD-BLOCK LONG 810 - Call your local BRP dealership

421000704

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Part - Friction Washer

Unavailable

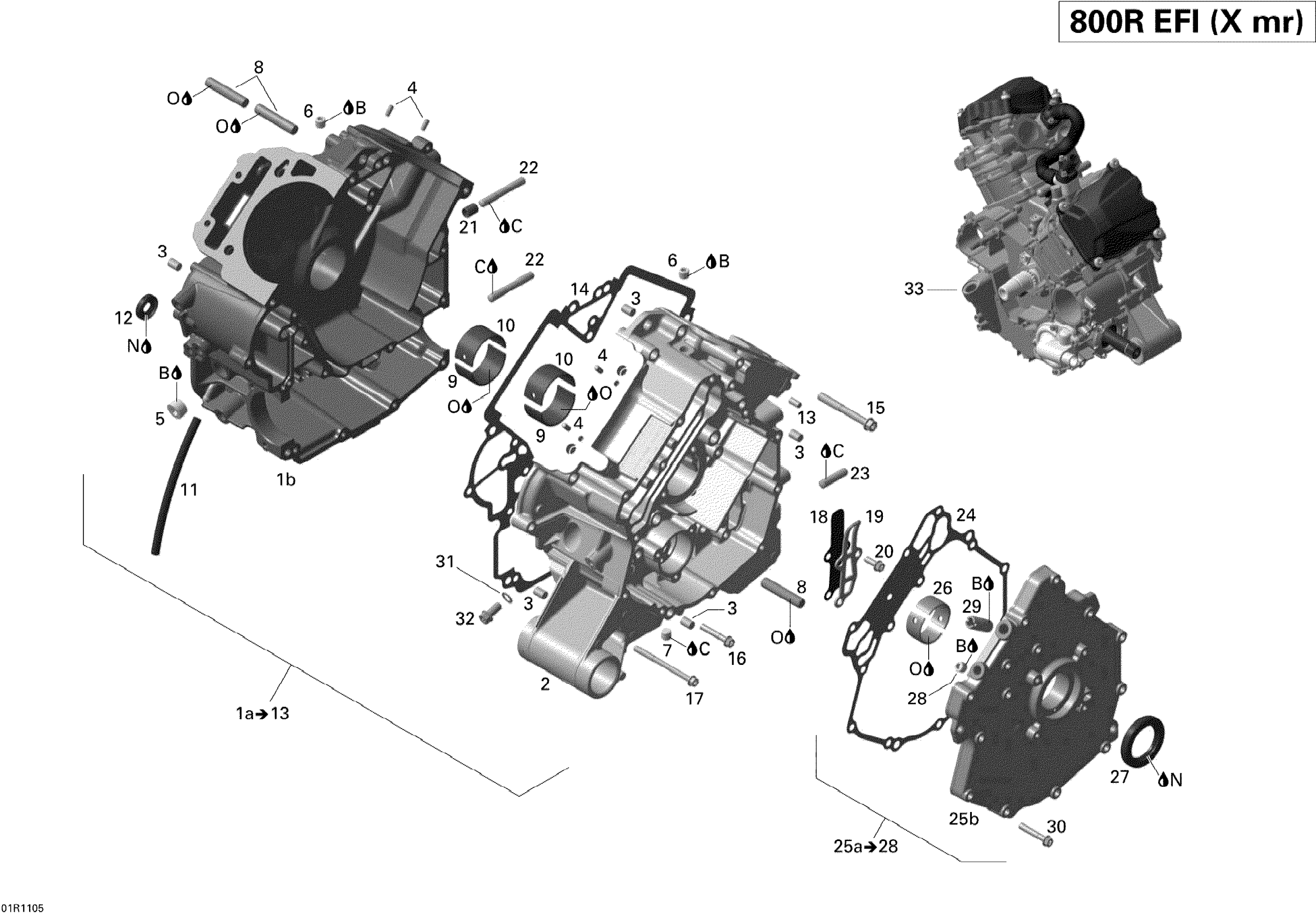

Can-Am Outlander 800R EFI, XMR, 2011 Crankcase Diagram

Crankcase Ass'y | Includes 1a to 14

REBUILD-BLOCK LONG 810 - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Center Pin 8 X 12

Drive Pin 5 X 10

Plug Screw M18 X 1.5 - Call your local BRP dealership

Plug Screw M10 X 1

Plug Screw M12x1,5

Location Pin 10 M6x50

Plain Bearing

Plain Bearing

Was 415110000 Polyurethane Hose 5.2 mm

Oil Seal

Needle Pin

Gasket

Torx Flange Screw M8 X 65

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 75

Reed Valve

Reed Valve Stop

Torx Flange Screw M6 X 16

Dowel Pin 10 X 13

Stud

Stud

Gasket

PTO Cover Ass'y | Includes 25a to 29

Not Available As Spare Part - Friction Washer

Bearing Sleeve

Oil Seal

Plug Screw M10 X 1

Hose Nipple

Torx Flange Screw M6 X 35

Sealing Ring

Torx Flange Screw M8 X 16

LONG BLOCK, 800R EFI - Call your local BRP dealership

REBUILD-BLOCK LONG 810 - Call your local BRP dealership

Loctite 243, 10 ml

Sealant Loctite 648

Grease, Super Lube

Not Available As Spare Part - Friction Washer
