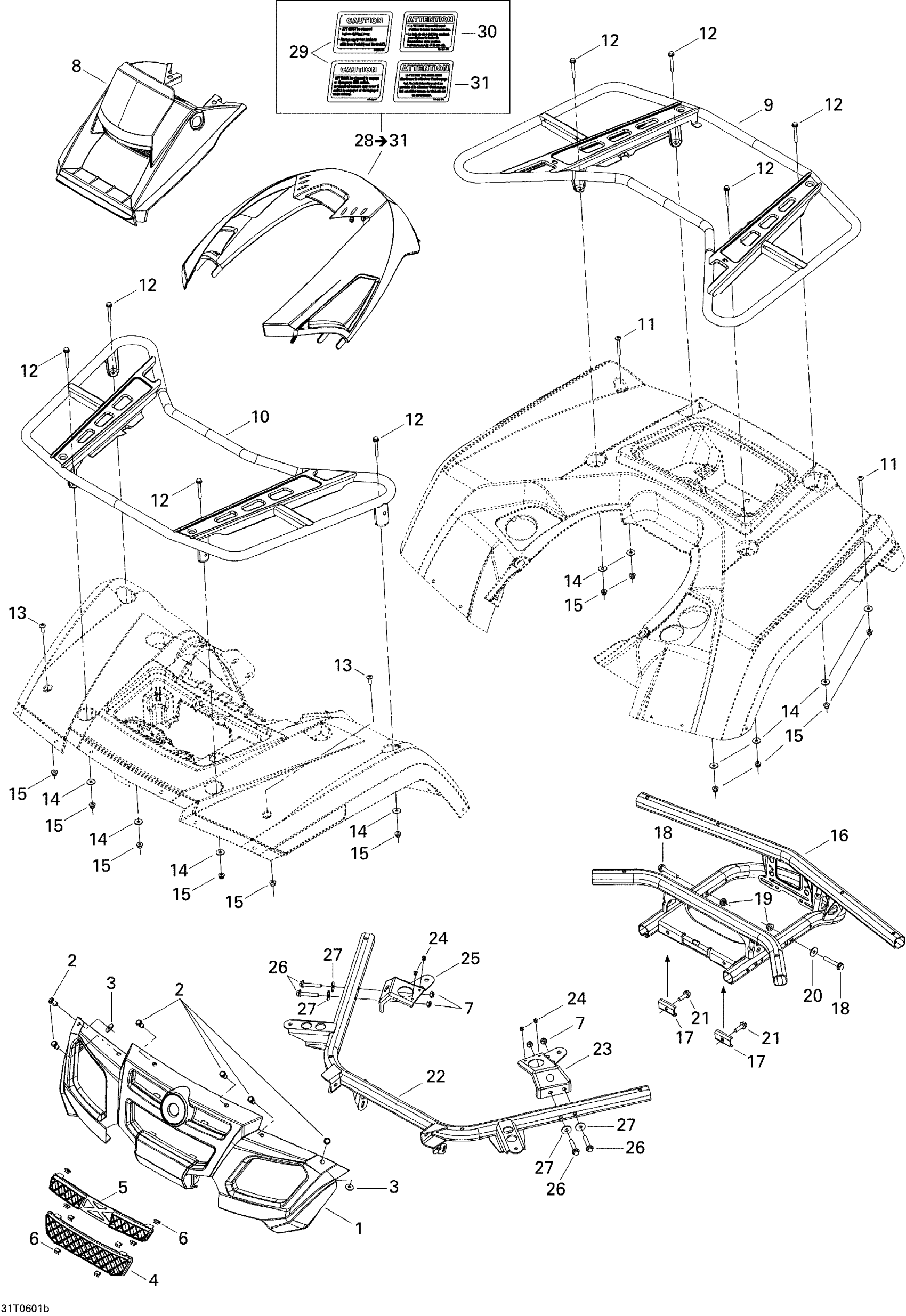

Can-Am Outlander 800 XT 4 X 4, 2006 Body And Accessories 2 Diagram
#
Description
Price
1
Front Fascia, Camo | Camo, B-005
705002012
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
Flat Washer 8 mm
234082410
Unavailable
4
LOWER GRILL - Call your local BRP dealership
705001679
Unavailable
6
Clip | Europe Models
517306751
Unavailable
7
Hex. Elastic Stop Nut M8
232581414
Unavailable
8
Dashboard | Europe
705002210
Unavailable
11
Torx Truss Screw M6 X 50
250000749
Unavailable
12
Hex. Flange Screw M6 X 50
207665044
Unavailable
13
Torx Screw M6 X 20
250000722
Unavailable
14
Flat Washer
224061201
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Rear Support | Camo, B-005
705002004
Unavailable
18
Hex. Flange Screw M8 X 50
207685044
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Flat Washer 8 mm
234082410
Unavailable
21
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
22
FRONT SUPPORT - Call your local BRP dealership
705003655
Unavailable
24
Pop Rivet 3/16"
390402300
Unavailable
26
Hex. Flange Screw M8 X 45
207684544
Unavailable
27
Flat Washer 8 mm
234082410
Unavailable
28
Central Panel Kit, Red | Includes 7 to 10, Viper Red
703500597
Unavailable
28
Central Panel Kit, Yellow | Includes 7 to 10, Yellow
715001274
Unavailable
28
CENTRAL PANEL KIT, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green
703500599
Unavailable
28
Central Panel Kit, Camo | Includes 28 to 31, Camo, B-005
703500600
Unavailable
29
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
30
Caution Decal, Shifting Lever | French Version
704900475
Unavailable
31
CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version
704900476
Unavailable
