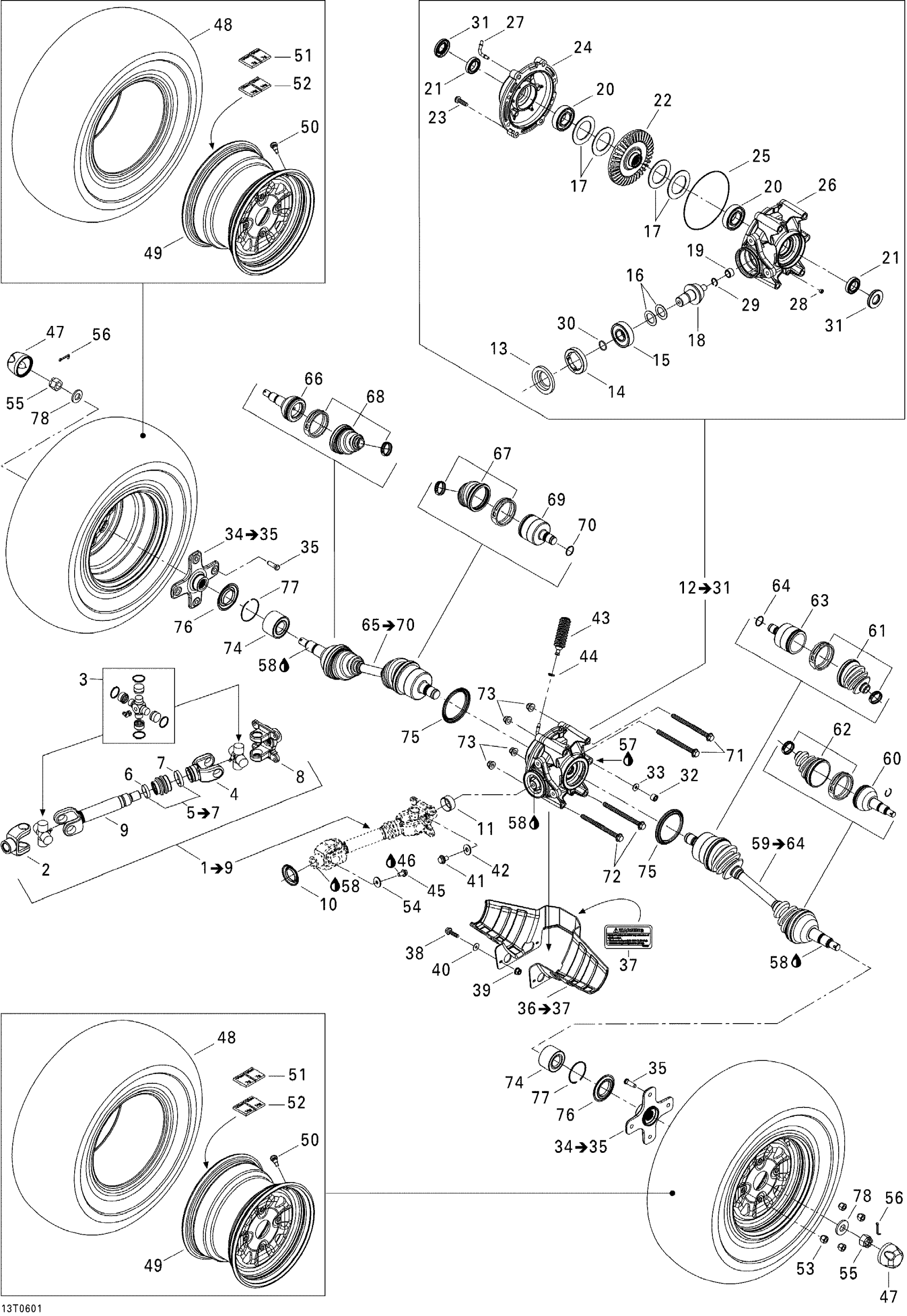

Can-Am Outlander 800 XT 4 X 4, 2006 Drive System, Rear XT Diagram

#

Description
Price

1

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$415.35

2

Fixe Yoke

715900101

$27.66

3

Not Available As Spare Part - Friction Washer

Unavailable

4

SLIDING JOINT - Call your local BRP dealership

705500528

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Collar | 4X4

705400148

Unavailable

7

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

8

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Protector

705501123

$7.37

11

Wear Ring | 4X4

705400036

$25.35

12

Rear Differential Ass'y | Includes 11 to 31

705500774

Unavailable

13

Oil Seal | 4X4

705401481

$18.43

14

Nut | 4X4

705401603

$36.89

15

Ball Bearing | 4X4

705500260

$30.74

16

Pinion Gear Shim 1.67 mm

705502061

$16.12

17

Differential Shim 0.02 mm

705502060

$13.83

18

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

19

Needle Bearing | 4X4

705500261

Unavailable

20

Ball Bearing

705502737

$46.12

21

BALL BEARING - Call your local BRP dealership

705500750

Unavailable

22

GEAR, 36 TOOTH - Call your local BRP dealership

705500775

Unavailable

23

Screw | 4X4

705401601

$9.29

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705500697

$172.28

25

Seal | 4X4

705500265

$16.12

26

Rear Differential Housing

705500699

Unavailable

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

28

Drain Plug | 4X4

705500894

$11.06

29

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

30

O-Ring | 4X4

705500267

$6.25

31

Oil Seal

705501996

$20.74

32

Fill Level Plug | 4X4

705500504

$7.61

33

Copper Washer | 4X4

705500506

$0.36

34

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

36

Protector Kit | Includes 38 to 39

703500722

$64.58

37

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

38

Hex. Flange Screw M6 X 25

207662544

$0.53

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Flat Washer

250200082

$0.35

41

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

42

Flat Washer M10 | 4X4

250200014

$1.17

43

Rubber Bellow | 4X4

705400552

$6.02

44

Oetiker Clamp

293650042

$1.40

45

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

46

Loctite 271, 10 ml

293800005

$20.77

47

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

48

Rear Tire | Traxter 5 Speed XT

705501770

$183.05

49

REAR RIM, BLACK - Call your local BRP dealership

705500792

Unavailable

49

REAR RIM, GRAY - Call your local BRP dealership

705500686

$129.20

50

Rim Valve With Cap

705400193

$6.69

51

Self Adhesive Weight, 5G 20mm

705502106

$4.35

52

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

$2.42

53

Steel Wheel Nut

250100042

$2.48

54

Flat Washer M10 | 4X4

250200014

$1.17

55

Hex. Flange Castellated Nut M18

232291413

$2.82

56

Cotter Pin

250400036

$1.74

57

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

58

Synthetic Grease, 400 G

293550010

Unavailable

59

LH CV JOINT - Call your local BRP dealership | Includes 58 to 63

705500726

$372.28

60

CV JOINT - Call your local BRP dealership

705500728

$147.66

61

Boot Kit

705500855

$41.51

62

Boot Kit

705500855

$41.51

63

PLUNGING JOINT - Call your local BRP dealership

705500729

$214.58

64

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

65

RH CV JOINT - Call your local BRP dealership | Includes 64 to 69

705500727

Unavailable

66

CV JOINT - Call your local BRP dealership

705500728

$147.66

67

Boot Kit

705500855

$41.51

68

Boot Kit

705500855

$41.51

69

PLUNGING JOINT - Call your local BRP dealership

705500729

$214.58

70

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

71

Hex. Flange Screw, M10 X 130

230603046

$6.08

72

Hex. Flange Screw M10 X 135

230603546

$6.08

73

Hex. Flange Elastic Nut M10

233201436

$1.74

74

Ball Bearing

293350150

$52.99

75

Wear Ring

705501124

$7.28

76

Wear Sleeve | 4X4

705501121

$7.28

77

Circlip

293370019

$4.98

78

Conical Spring Washer M18

250200171

$5.28
