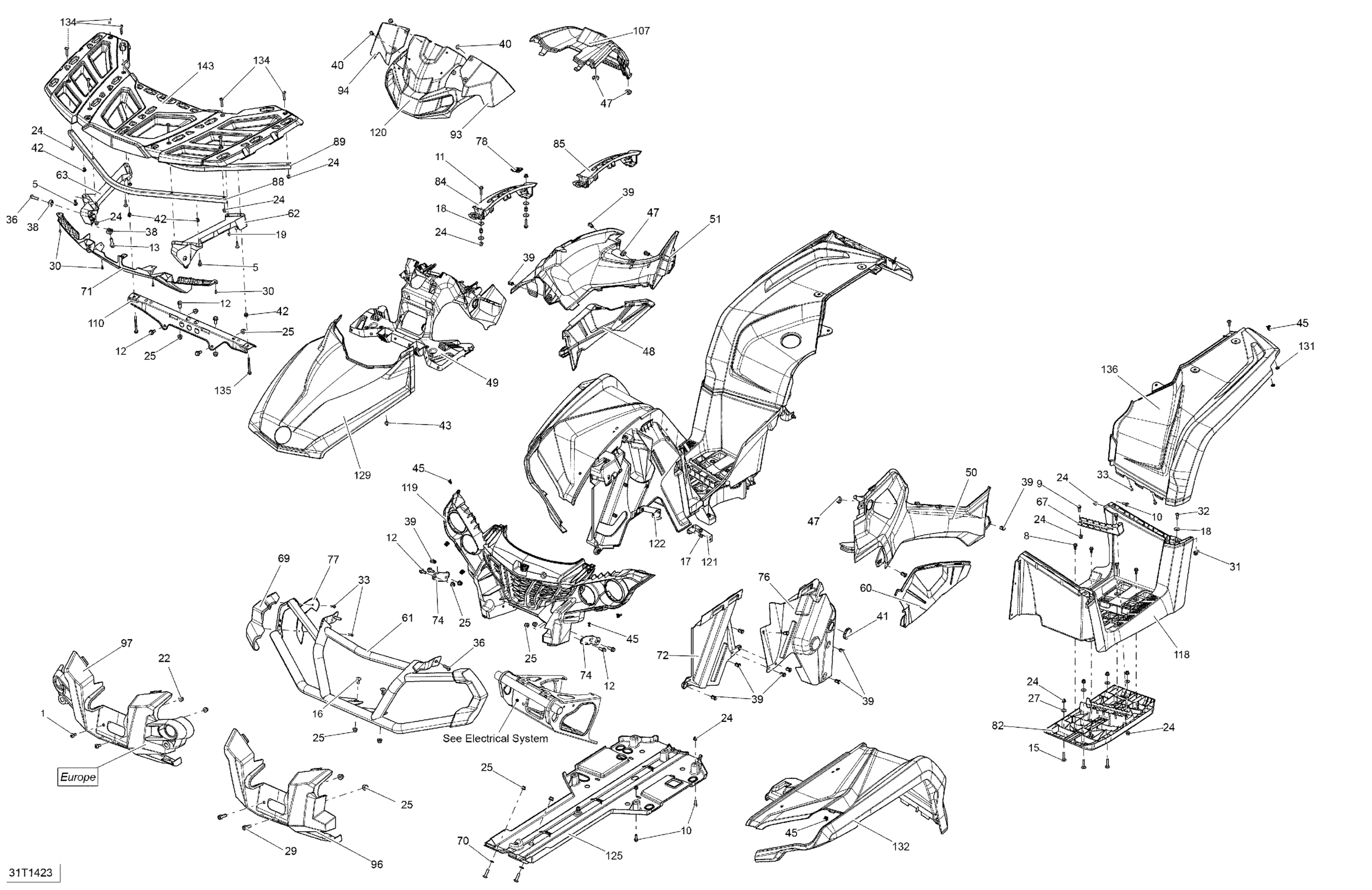

Can-Am Outlander 6x6 (International & T3), 2014 Body And Accessories _31T1423a Diagram

#

Description
Price

1

Socket Screw M10 x 30 | XT

205003044

$2.61

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

8

Hex. Flange Screw M6 X 16

207661654

$1.74

9

Not Available As Spare Parts

XXX

Unavailable

10

Hex. Flange Screw M6 X 20

207662084

$0.83

11

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

12

Hex. Flange Screw M8 X 20

207682044

$0.92

13

Hex. Flange Screw M8 X 35

207683534

$1.74

14

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

15

Carriage Bolt M6 X 35

207763554

$1.70

16

Carriage Bolt, M8 X 20

207782044

$1.56

17

Not Available As Spare Parts

XXX

Unavailable

18

Flat Washer

224061201

$1.11

19

Hex. Elastic Stop Nut M6

232561600

$0.92

22

Hex. Flange Elastic Nut M10

233201434

$1.63

23

Flange Elastic Nut M5

233251434

$1.66

24

Flange Elastic Nut M6

233261434

$3.61

25

Hex. Flange Elastic Nut M8

233281434

$1.74

26

Not Available As Spare Parts

XXX

Unavailable

27

Flat Washer 6 mm

234062410

$0.64

28

Not Available As Spare Parts

XXX

Unavailable

29

Hex. Screw M8 X 20

236282084

$1.48

30

Screw K40 X 10

241140060

$1.25

31

Panel Nut M6 X 1.0

250100198

$1.73

32

Torx Screw M6 X 20

250000722

$1.34

33

Torx Screw K50 X 16

250000720

$1.39

36

Torx Screw M8 X 30

250000886

$1.74

38

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

39

Tuflok Plastic Rivet

293150230

$1.21

40

Not Available As Spare Parts

XXX

Unavailable

41

Rubber Cover

293250242

$5.38

42

Threaded Insert M6 X 1.0

250100242

Unavailable

43

Rubber Bumper

293830005

$5.33

45

Edge Clip

517302785

$0.70

47

Grommet

705003264

$3.43

48

Engine Cover

705003444

$20.74

49

Dash Support Kit

715001552

$50.74

49

Console Support Ass'y | Model-Europe/International

715006101

$54.58

49

Console Support Ass'y | Model-Europe/International

715006101

$54.58

50

Yellow, LH Lateral Panel | Yellow

705003446

$55.35

50

Yellow, LH Lateral Panel | Yellow

705003446

$55.35

50

Quarry Gray LH Lateral Panel | Model-Gray

705007530

$59.97

51

Yellow, RH Lateral Panel | Yellow

705009019

$55.35

51

Yellow, RH Lateral Panel | Yellow

705009019

$55.35

51

PANEL_BODY RH B-365 - Call your local BRP dealership | Model-Gray

705009116

$50.74

58

Not Available As Spare Parts

XXX

Unavailable

60

Deflector_Body Panel Kit

715007008

$51.51

61

Front Bumper | XT

705005018

Unavailable

62

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$18.43

63

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$20.74

67

Not Available As Spare Parts

XXX

Unavailable

68

Cap (Front LH) (Rear RH) | XT

705004409

$7.60

69

Cap (Front RH) (Rear LH) | XT

705004410

$7.60

70

Ring

705004497

$3.98

71

Lugage Rack Moulding

705004523

$23.05

72

RH Front Inner Fender

705011463

$15.22

72

LH Front Wheel Arch Protector

705017001

$15.22

74

Lower Fender Support

705004565

$6.45

76

RH Rear Inner Fender

705011462

$20.74

76

LH Rear Inner Fender

705013111

$20.74

77

Bracket Cover | XT

705004987

$4.98

78

Shiftgate Trim | Europe

705005003

$8.46

82

LH Structural Footboard

705011540

$115.35

82

RH Structural Footboard

705011542

$98.43

84

Shifter Gate | 1000 North America, 1000 International

705011544

$27.66

85

Shifter Gate | 1000 Europe

705011548

$27.66

88

Sectional Bent Tube

705016640

$35.35

89

Bent Sectional Tube

705016092

$39.20

93

LH Air Deflector

705006134

$24.58

94

RH Air Deflector

705006135

$23.05

96

Front Guard Plate | North America, International

705006299

$47.66

97

Front Guard Plate | Europe

705006300

$40.74

106

Not Available As Spare Parts

XXX

Unavailable

107

Dash Kit

715006098

$29.20

110

Cargo Rack Center Support

705006812

$59.97

118

LH Step

705007040

$92.28

118

RH Step

705007039

$119.97

119

Fascia

705012822

$111.51

120

Gauge Support

705007095

$41.51

121

Not Available As Spare Parts

XXX

Unavailable

122

Not Available As Spare Parts

XXX

Unavailable

125

Protective Plate Kit

715002374

$64.58

129

Yellow Hood Kit

708301154

$106.89

129

Grey Hood Kit | Model-Grey Nord America

715002237

$106.89

131

Push Nut

732610072

$1.72

132

Yellow LH Front Fender Kit | Includes 2 to 2b, Yellow

715002180

$189.97

132

Grey LH Front Fender Kit | Model-Grey Nord America

715002184

$189.97

132

Yellow RH Front Fender Kit | Includes 3 to 3a, Yellow

715001510

$189.97

132

Grey RH Front Fender Kit | Model-Grey Nord America

715002209

$189.97

134

Black, Torx Screw M6 X 35

250000646

$0.78

135

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

136

Grey LH Rear Fender

715002762

$128.43

136

YELLOW LH REAR FENDER - Call your local BRP dealership

715002759

Unavailable

136

Grey RH Rear Fender

715002771

$128.43

136

YELLOW RH REAR FENDER - Call your local BRP dealership

715002773

Unavailable

143

Luggage Rack Kit

715001852

$212.28

143

Rack Kit | Model-International

715002240

$184.58

143

Rack Kit | Model-International

715002240

$184.58
