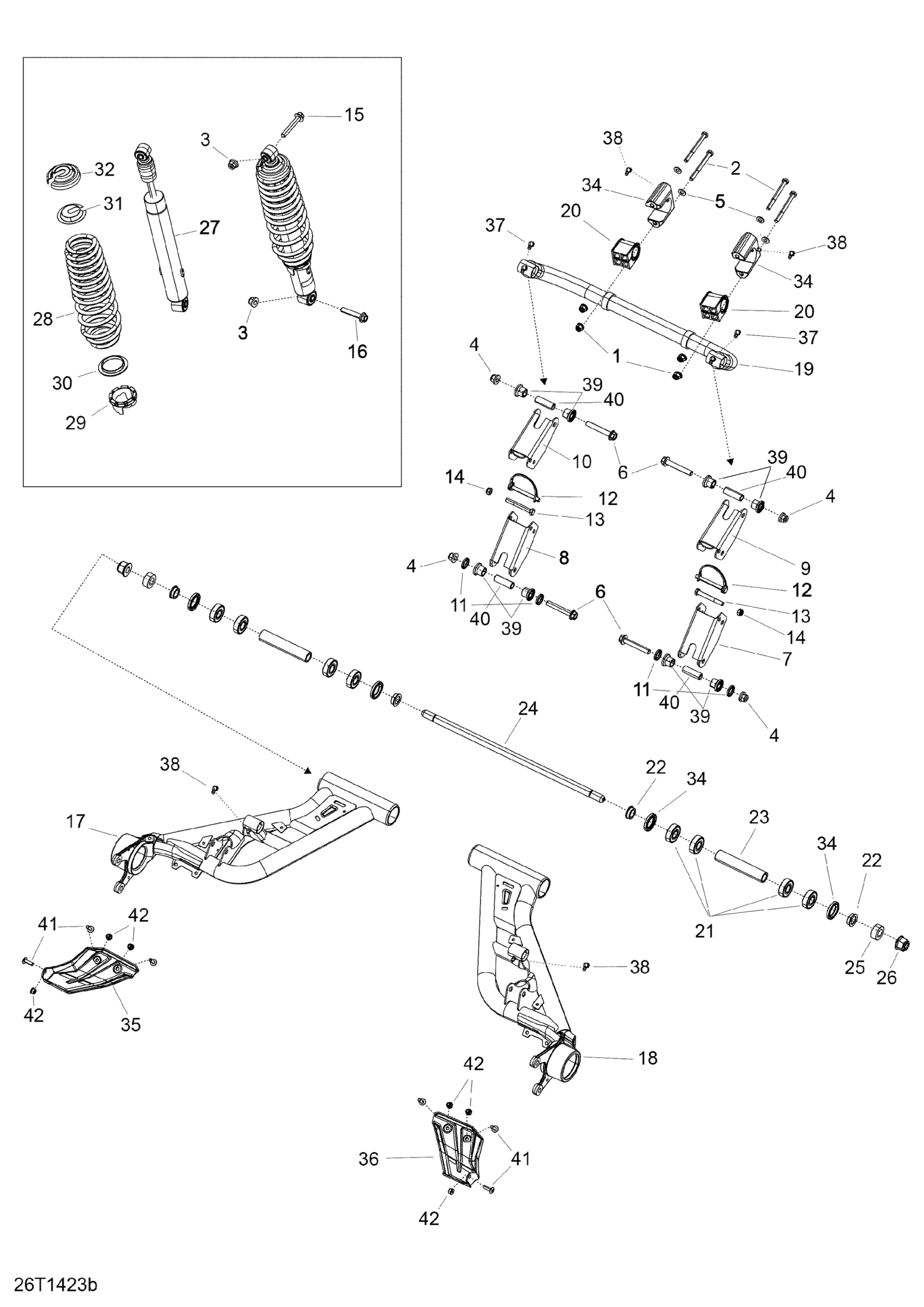

Can-Am Outlander 6x6 (International & T3), 2014 Rear Suspension _26T1423b Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M8

233281434

$1.74

2

Hex. Screw M8 X 85

250001035

$1.46

3

Hex. Flange Elastic Nut M10

233201436

$1.74

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Flat Washer M8

234081430

$1.74

6

Hex. Flange Screw M10 X 65

207606536

$3.61

7

RH Linkage Outer Part

706001765

$26.89

8

LH Linkage Outer Part

706001600

$26.89

9

RH Linkage Inner Part

706001766

$14.48

10

Linkage Inner Part

706001601

$14.48

11

Washer

505073634

$2.31

12

Pin Onto The Shaft

706001602

$14.02

13

Hex. Screw M8 x 65

207086544

$1.42

14

Hex. Elastic Stop Nut M8

232581414

$0.47

15

Hex. Flange Screw M10 X 6

207606046

$3.38

16

Hex. Flange Screw M10 X 55

207605546

$1.74

17

Black LH Swing Arm

706001860

$290.74

18

Black RH Swing Arm

706001861

$290.74

19

Swaybar

706000988

$124.58

20

Stabilizer Bar Bushing

706004640

$9.22

21

Ball Bearing

293350145

$12.91

22

Spacer

706001282

$10.98

23

Spacer

706002259

$27.66

24

Axial Pivot M16

706001664

$69.20

25

Flat Washer M17

250200112

$6.34

26

Hex. Flange Elastic Nut M16

233211466

$1.53

27

Rear Shock

706000958

$175.35

28

Black Spring

706000963

$101.51

29

Adjustment Cam

505073625

$12.18

30

Spring Guide

503187500

$7.37

31

Cap

706200785

$4.42

32

Spring Stopper

706200881

$10.30

33

Bushing Holder

706001099

$31.51

34

Seal

293200144

$4.60

35

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

36

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

37

Grease Fitting 90°

293550056

$1.37

38

Grease Fitting

250000315

$4.82

39

Bushing

706200181

$3.68

40

Sleeve

706201587

$4.60

41

Torx Screw M6 X 20

250000712

$1.74

42

Hex. Flange Elastic Nut M6

233261494

$1.26
