Description

Price

1

Hex. Flange Castellated Nut M18

232291413

$2.82

2

Hex. Flange Elastic Nut M10

233201436

$1.74

3

Hex Flange Screw M12 X 16

250001039

$1.74

4

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

5

Hex. Flange Screw M10 X 135

250001041

$4.46

7

Black, Wheel Nut M10 X 1.25

250100184

$2.48

10

Conical Spring Washer M18

250200171

$5.28

11

Flat Washer M12

250200102

$1.74

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

13

Cotter Pin

250400036

$1.74

14

Valve Cap

293000110

$1.18

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.98

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

20

Wear Ring | 4X4

705400036

$25.35

21

Wheel Cap

705400928

$11.06

23

Rim Valve With Cap

705400193

$6.69

28

Ball Bearing | 4X4

705500260

$30.74

29

Seal | 4X4

705500265

$16.12

30

O-Ring | 4X4

705500267

$6.25

31

Fill Level Plug | 4X4

705500504

$7.61

32

Copper Washer | 4X4

705500506

$0.36

33

Ball Bearing

705502737

$46.12

34

Tire | XT, C/U, INT

705501769

$156.89

35

Screw | 4X4

705401601

$9.29

36

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

37

Drain Plug | 4X4

705500894

$11.06

38

Nut

705502059

$32.28

39

Protector

705501123

$7.37

40

Wear Ring

705501124

$7.28

41

Pinion Gear Shim

705501162

$15.17

41b

Pinion Gear Shim 1.67 mm

705502061

$16.12

44

1/2 Oz Weight

219704465

$4.35

45

Rubber Boot

715900118

$13.83

46

Grease Fitting

715900184

$4.62

47

Fixe Yoke

715900101

$27.66

48

Ball Bearing

705502738

$56.89

49

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$396.89

51

Needle Bearing

705501408

$66.89

52

PINION REAR COVER - Call your local BRP dealership

705501420

$189.97

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

55

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

$221.51

68

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

71

Wheel Hub Ass'y

705501716

$129.20

73

Rear Drive Unit Ass'y

705501916

$913.82

76

Black, Rim | XT

705501856

$139.97

79

Universal Joint

715900326

$69.20

80

Oetiker Gear Clamp 36.1MM

509000045

$3.55

81

COVER - Call your local BRP dealership

715900187

$7.89

82

Fixed Joint

715900129

$23.05

83

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

84

Oil Seal

705501996

$20.74

85

Oil Seal | 4X4

705401481

$18.43

88

CV Joint

705501776

Unavailable

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$5.38

90

Boot Kit

705501864

$41.51

91

Oetiker Clamp, 27.3 mm

715900242

$7.84

92

Oetiker Clamp, 82.1 mm

715900241

$7.84

95

Rubber Bellow | 4X4

705400552

$6.02

96

Oetiker Clamp

293650042

$1.40

97

Differential Shim 0.02 mm

705502060

$13.83

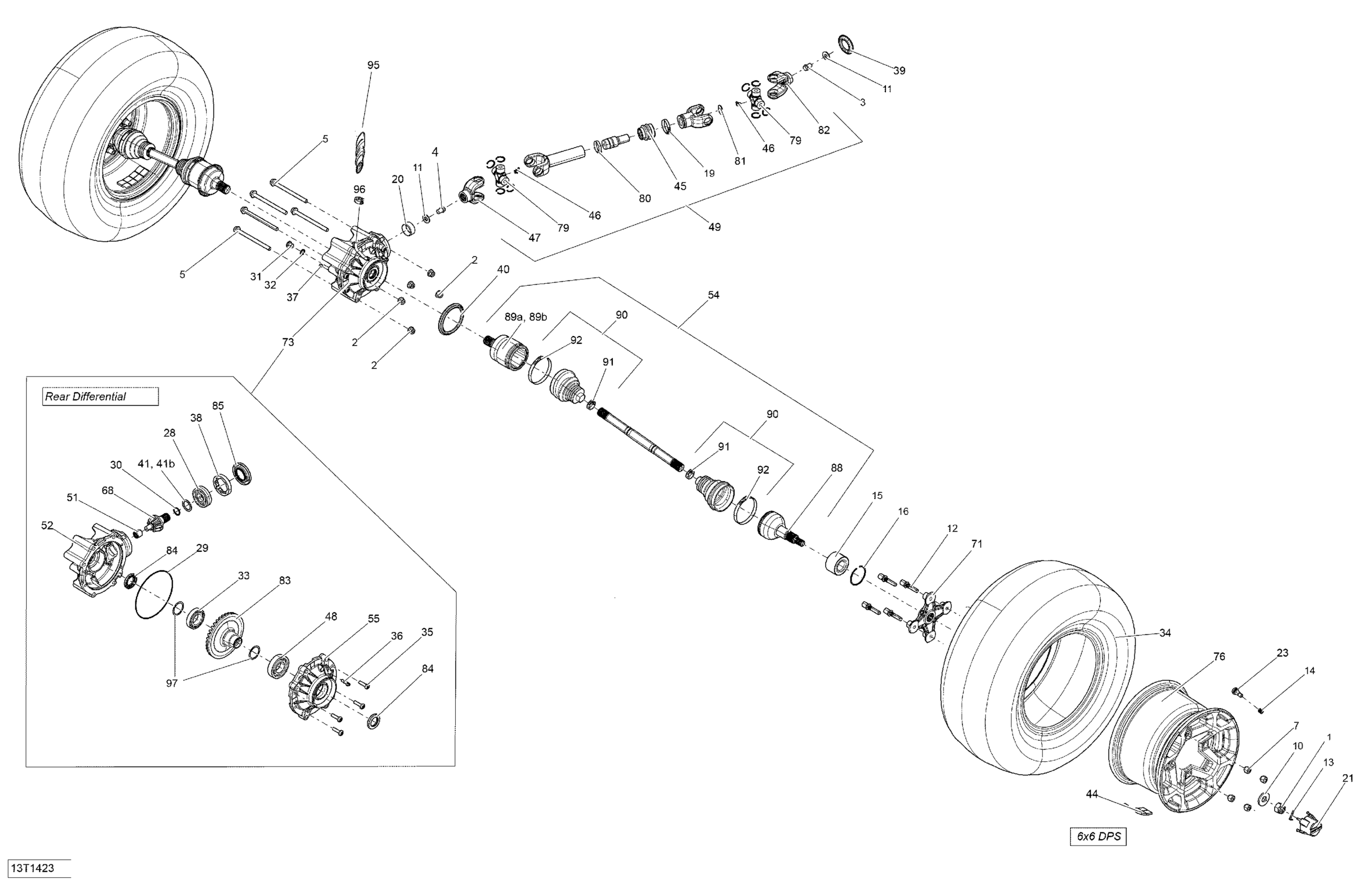

Can-Am Outlander 6x6 (International & T3), 2014 Drive System, Rear _13T1423 Diagram
