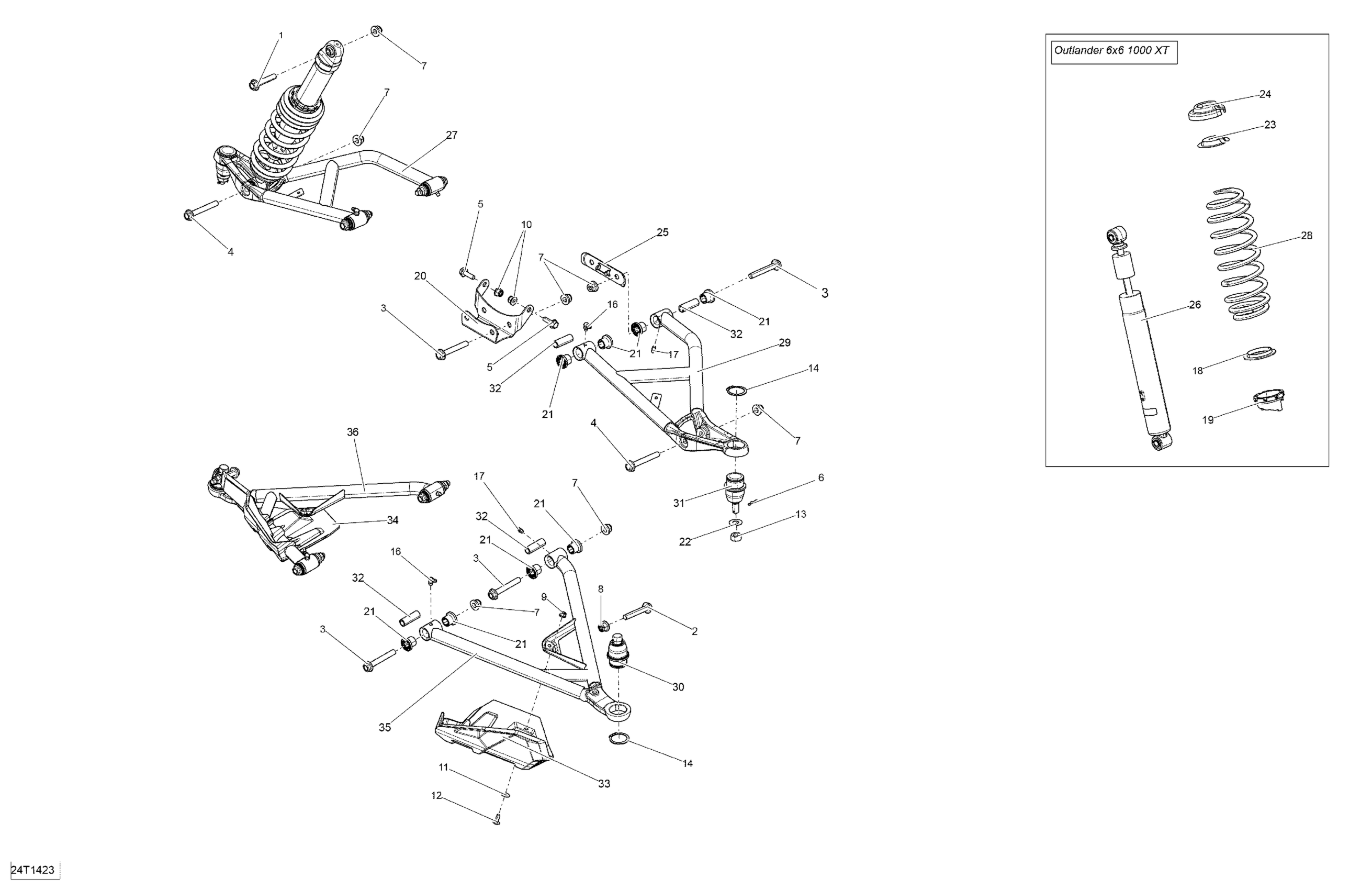

Can-Am Outlander 6x6 (International & T3), 2014 Front Suspension _24T1423 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605546

$1.74

2

Hex. Flange Screw M10 X 60

207606044

$2.78

3

Hex. Flange Screw M10 X 70

207607046

$2.91

4

Hex. Flange Screw M10 X 75

250001038

$5.54

5

Hex. Flange Screw M8 X 25

207682544

$0.90

6

Cotter Pin

211400017

$0.25

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M10

233201434

$1.63

9

Hex. Flange Elastic Nut M6

233261494

$1.26

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Stainless Steel Flat Washer

234062670

$1.74

12

Torx Truss Screw M6 X 16

250000721

$1.39

13

Nut M12

250100099

$1.64

14

Circlip

293370035

$2.55

16

Grease Fitting 90°

293550056

$1.37

17

Grease Fitting

408200700

$2.80

18

Spring Guide

503187500

$7.37

19

Adjustment Cam

505073625

$12.18

20

Upper Front Holder

705203247

$14.37

21

Bushing

706200181

$3.68

22

Hardened Washer

706200281

$2.34

23

Cap

706200785

$4.42

24

Spring Stopper

706200881

$10.30

25

Front Suspension Cross Plate

706200998

$4.91

26

Front Shock

706201170

$175.35

27

Black RH Upper Arm

706201797

$156.89

28

Black Spring | XT

706202553

$106.12

29

Black LH Upper Arm

706201796

$156.89

30

Ball Joint

706202045

$35.35

31

Ball Joint

706202044

$35.14

32

Sleeve

706201587

$4.60

33

LH Joint Protector

706202808

$9.29

34

RH Joint Protector

706202809

$9.29

35

LH Lower Suspension Arm

706204639

$156.89

36

Black, RH Lower Arm

706202870

$156.89
