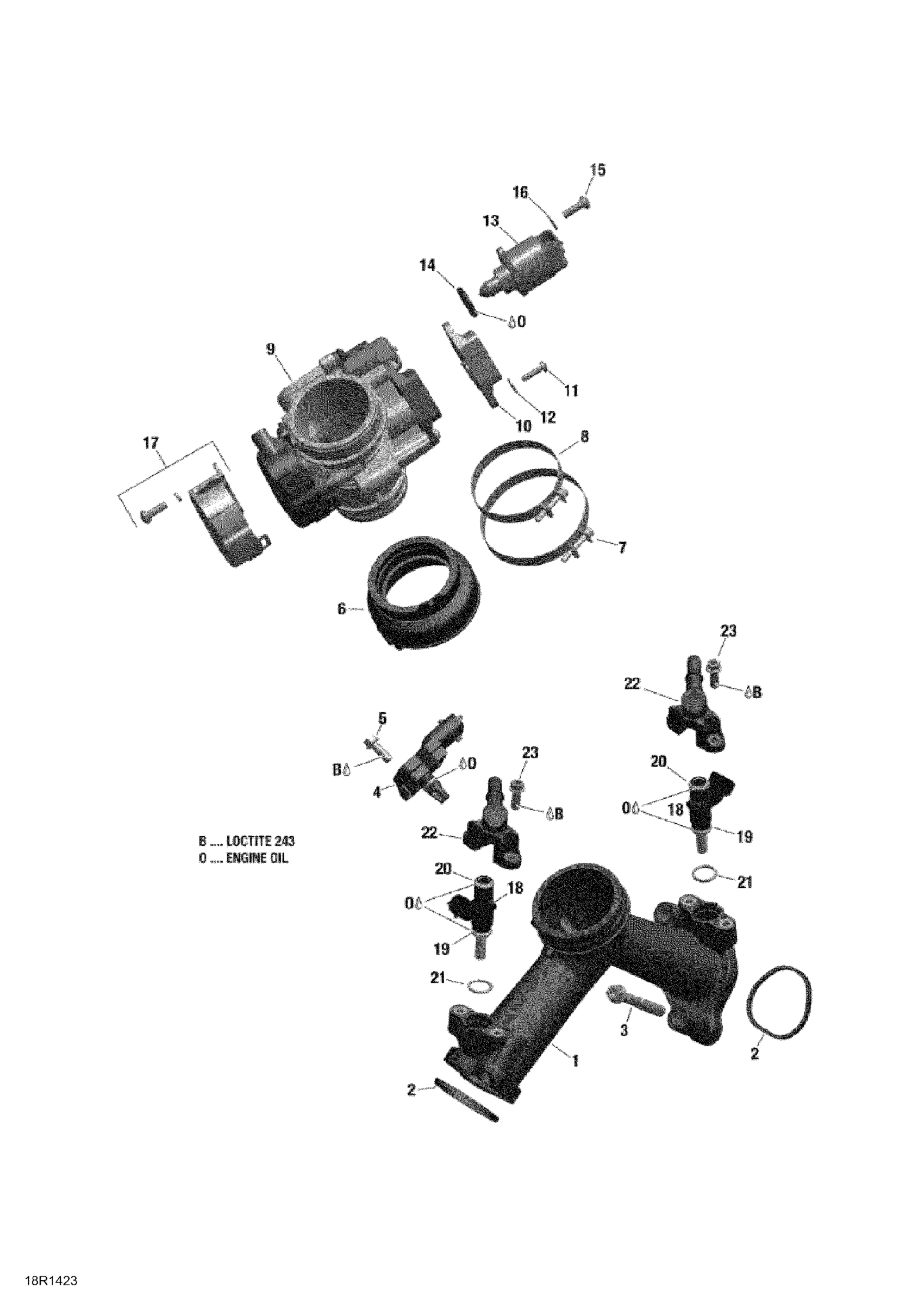

Can-Am Outlander 6x6 (International & T3), 2014 Air Intake Manifold And Throttle Body _18R1423 Diagram

#

Description

Price

1

Air Intake Manifold

420667520

$67.13

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 55

420641213

$7.01

4

Pressure And Temperature Sensor

707000995

$81.31

5

Torx Flange Screw M6 X 16

420641048

$2.82

6

Intake Neck

420267045

$10.30

7

Clamp

420251209

$8.09

8

Clamp

420251480

$13.18

9

Throttle Body Ass'y | Includes 8 to 16

420685326

$659.67

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Idle Air Control Valve

420665941

$169.37

14

O-Ring

420631780

$4.15

15

Binding Head Screw M5 X 16

420440911

$13.18

16

Snap Ring

420845710

$3.88

17

Cover Kit

420281540

$19.37

18-20

Injection Valve Ass'Y | Includes 18 to 20

420874833

$150.72

19

O-Ring

420431890

$5.69

20

O-Ring

420631220

$13.18

21

O-Ring

420631296

$0.72

22

Fuel Rail

420874901

$22.36

23

Torx Flange Screw M6 X 16

420641048

$2.82
