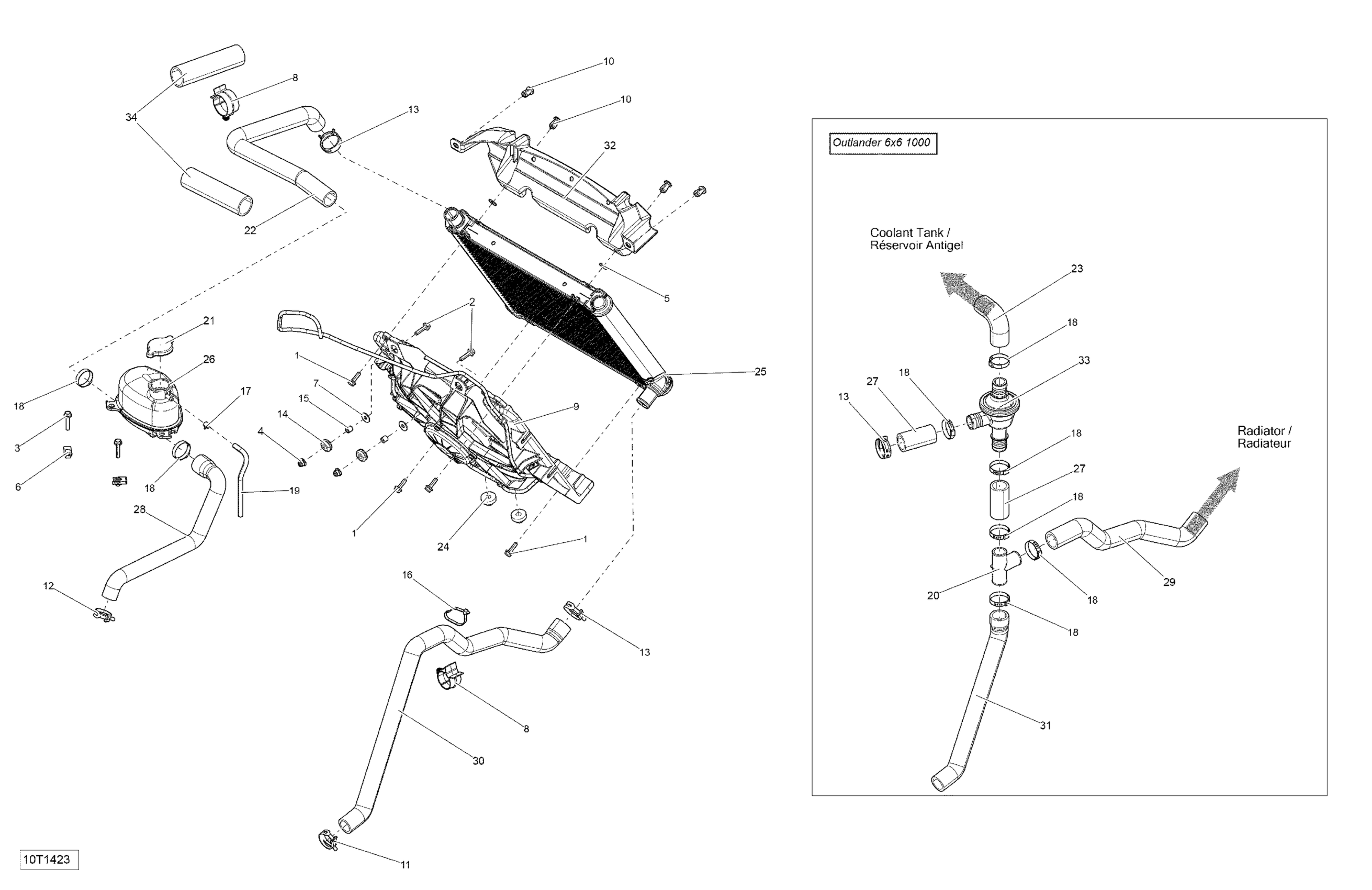

Can-Am Outlander 6x6 (International & T3), 2014 Cooling System _10T1423 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662034

$1.74

2

Hex. Flange Screw M6 X 25

207662534

$1.74

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

4

Flange Elastic Nut M6

233261434

$3.61

5

Flat Washer 8 mm

234081410

$0.69

6

Panel Nut M6 X 1.0

250100198

$1.73

7

Flat Washer

250200082

$0.35

8

Retainer

275500590

$7.18

8

Retainer

275500590

$7.18

9

Fan Ass'y

709200564

$226.12

10

Tuflok Plastic Rivet

293150230

$1.21

11

Norma Spring Clamp

293650108

$4.00

12

Not Available As Spare Parts

XXX

Unavailable

13

Norma Spring Clamp

293650166

$4.28

13

Norma Spring Clamp

293650166

$4.28

14

Grommet

709000582

$4.38

15

Bushing

293900105

$6.26

16

Tie-Rap 180 mm

414115200

$0.09

17

Spring Clamp

414554800

$0.83

18

Gear Clamp

509000162

$5.84

18

Gear Clamp

509000162

$5.84

19

Polyurethane Hose 10000Mm Long

219704410

$46.12

20

T-Fitting

509000219

$15.35

21

Radiator Pressure Cap

709200207

$18.82

22

Radiator Inlet Hose

709200278

$32.28

23

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

$8.06

24

Grommet

709200285

$8.38

25

Radiator

709200286

$461.51

26

Coolant Tank

709200297

$55.35

27

Hose

709200299

$6.92

28

Not Available As Spare Parts

XXX

Unavailable

29

Radiator Outlet Hose

709200390

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Hose

709200392

$17.66

32

Air Deflector | Outlander

709200393

$15.35

33

Thermostat

709200406

$77.32

34

Tubing 35 MM 1000MM Long

219704428

$8.57
