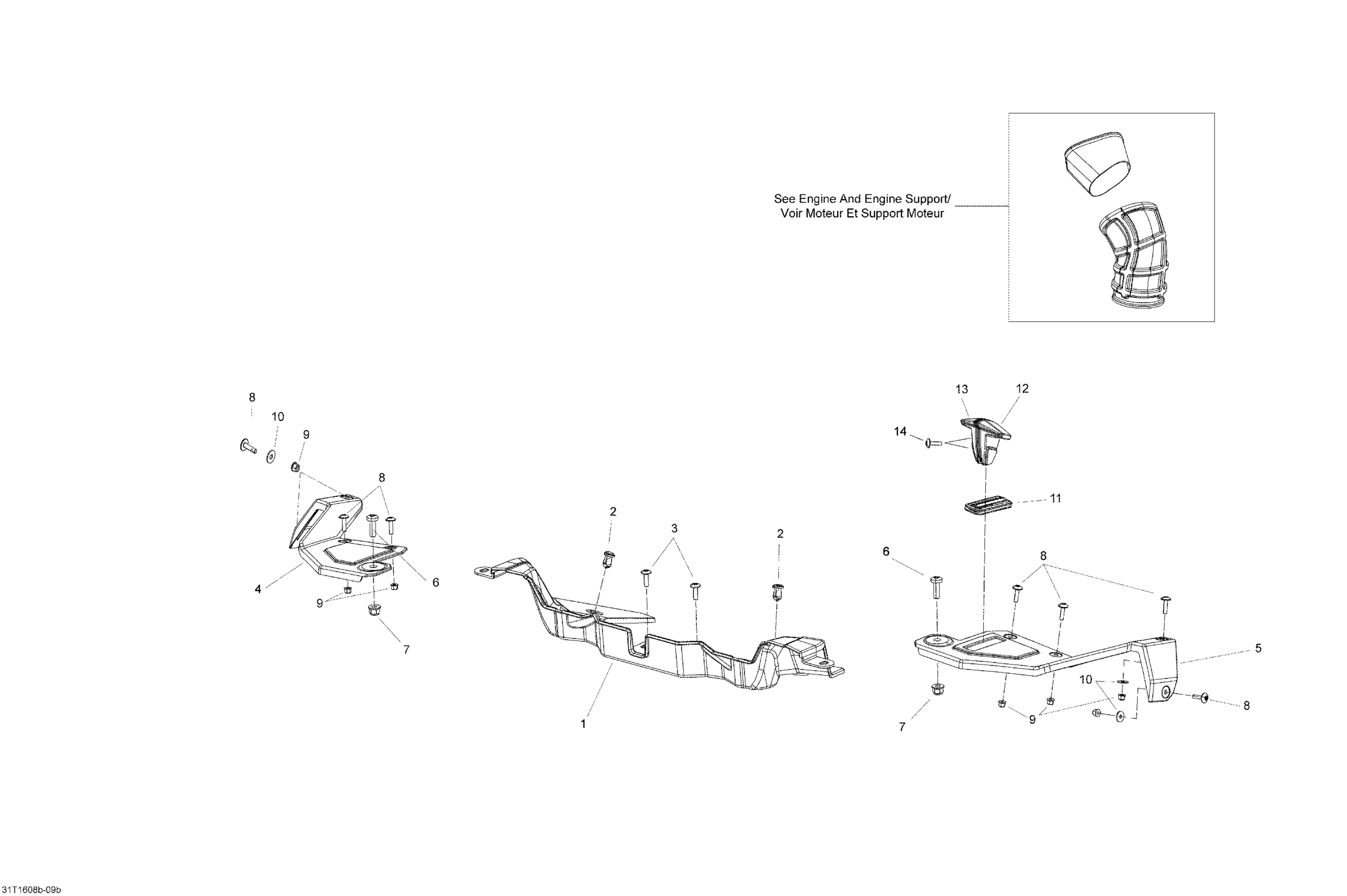

Can-Am Outlander 6X6 - 650 EFI, 2016 Body And Accessories, Front View_2 Diagram

#

Description

Price

1

REAR TOP PANEL - Call your local BRP dealership

705007824

$7.37

2

Tuflok Plastic Rivet

293150230

$1.21

3

Torx Screw M6 X 20

250000722

$1.34

4

LH Rear Fender Trim

705013820

$26.12

5

RH Rear Fender Trim

715002802

$27.66

6

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Torx Truss M5 X 20

250000586

$3.61

9

Hex. Flange Elastic Nut M5

233251414

$1.66

10

Washer 5,3 mm

20008

$0.72

11

Lever Rubber Seal

705008047

$13.49

12

Right Half Knob

705008048

$17.66

13

Left Half Knob

705008420

$17.66

14

Torx-Truss Pt K40 X 16

250000759

$1.74
