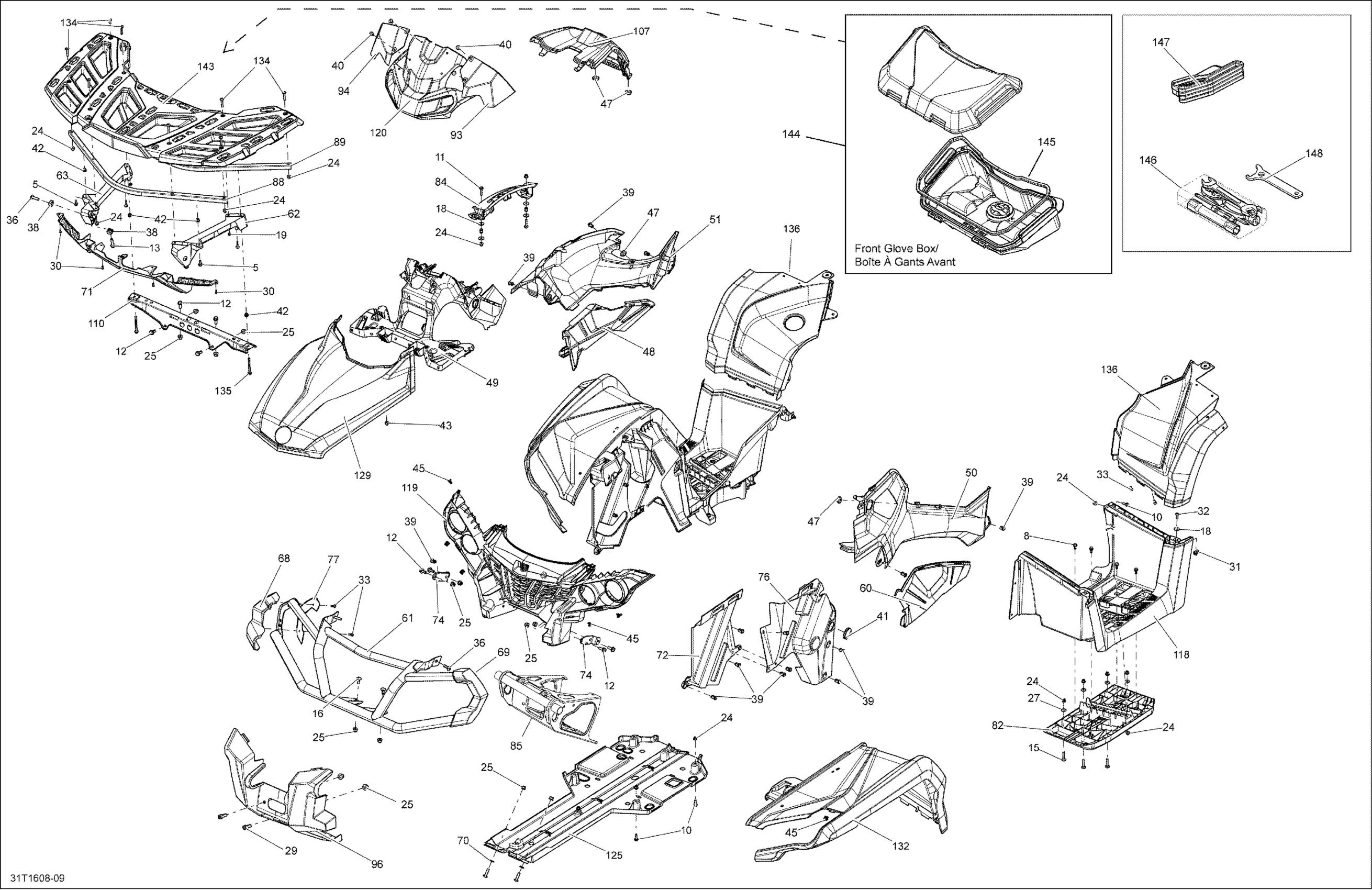

Can-Am Outlander 6X6 - 650 EFI, 2016 Body And Accessories, Front View_1 Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Screw M6 X 16

207661654

$2.00

Hex. Flange Screw M6 X 20

207662084

$0.96

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 35

207683534

$2.00

Carriage Bolt M6 X 35

207763554

$1.96

Carriage Bolt, M8 X 20

207782044

$1.79

Flat Washer

224061201

$1.27

Hex. Elastic Stop Nut M6

232561600

$1.06

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Elastic Nut M8

233281434

$2.00

Flat Washer 6 mm

234062410

$0.73

Hex. Screw M8 X 20

236282084

$1.43

Screw K40 X 10

241140060

$1.43

Panel Nut M6 X 1.0

250100198

$1.99

Torx Screw M6 X 20

250000722

$1.54

Torx Screw K50 X 16

250000720

$1.60

Torx Screw M8 X 30

250000886

$2.00

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

Tuflok Plastic Rivet

293150230

$1.39

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Rubber Cover

293250242

$5.18

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Bumper

293830005

$6.12

Edge Clip

517302785

$0.81

Grommet

705003264

$3.94

Engine Cover

705003444

$18.63

Dash Support Kit

715001552

$47.73

Console Support Ass'y | Model-Europe/International

715006101

$52.21

Yellow, LH Lateral Panel | Yellow

705003446

$51.46

Camo, LH Lateral Pannel | Camo Model

705009903

$272.36

Quarry Gray LH Lateral Panel | Model-Gray

705007530

$55.19

Yellow, RH Lateral Panel | Yellow

705009019

$51.46

PANEL_BODY RH B-365 - Call your local BRP dealership | Model-Gray

705009116

$49.22

Camo, RH Lateral Pannel | Camo Model

705009912

$272.36

Deflector_Body Panel Kit

715007008

$49.97

Front Bumper | XT

705005018

Unavailable

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$17.88

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$17.88

Cap (Front LH) (Rear RH) | XT

705004409

$6.76

Cap (Front RH) (Rear LH) | XT

705004410

$6.76

Ring

705004497

$3.87

Lugage Rack Moulding

705004523

$21.61

RH Front Inner Fender

705011463

$14.13

LH Front Wheel Arch Protector

705017001

$14.13

Lower Fender Support

705004565

$6.19

RH Rear Inner Fender

705011462

$19.37

LH Rear Inner Fender

705013111

$19.37

Bracket Cover | XT

705004987

$4.25

LH Structural Footboard

705011540

$108.18

RH Structural Footboard

705011542

$95.49

Shifter Gate | 1000 North America, 1000 International

705011544

$25.34

Front Bumper Support

705016893

$314.90

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

LH Air Deflector

705006134

$23.85

RH Air Deflector

705006135

$22.36

Front Guard Plate | North America, International

705006299

$46.24

Dash Kit

715006098

$25.34

Cargo Rack Center Support

705006812

$55.19

LH Step

705007040

$87.28

RH Step

705007039

$113.40

Fascia

705012822

$108.18

Gauge Support

705007095

$40.27

Protective Plate Kit

715002374

$59.67

YELLOW HOOD KIT - Call your local BRP dealership | Model-North America

715002777

Unavailable

Yellow Hood Kit | Model-International

715002779

Unavailable

BREAKUP COUNTRY CAMO HOOD KIT - Call your local BRP dealership | Model-North America

715003364

Unavailable

CAMO Hood Kit | Model-International

715003367

$732.81

GREY HOOD KIT - Call your local BRP dealership | Model-North America

715002780

Unavailable

Quarry Gray Hood Kit | Model-International

715002782

$103.70

YELLOW LH FRONT FENDER KIT - Call your local BRP dealership | Model-North America

715002743

Unavailable

YELLOW LH FRONT FENDER KIT - Call your local BRP dealership | Model-International

715002745

Unavailable

CAMO LH Front Fender Kit | Model-North America

715003315

$405.94

CAMO LH Front Fender Kit | Model-International

715003317

$405.94

QUARRY GRAY LH FRONT FENDER KIT - Call your local BRP dealership | Model-North America

715002746

Unavailable

Quarry Gray LH Front Fender Kit | Model-International

715002749

$184.30

Yellow RH Front Fender Kit | Includes 3 to 3a, Yellow

715001510

$184.30

Yellow RH Front Fender Kit | Model-Yellow Europe

715002208

$184.30

Camo, RH Front Fender Kit | Camo Model North America

715003208

$405.94

Camo RH Front Fender Kit | Model-International

715003339

$405.94

Grey RH Front Fender Kit | Model-Grey Nord America

715002209

$184.30

Grey RH Front Fender Kit | Model-Grey Europe

715002211

$184.30

Black, Torx Screw M6 X 35

250000646

$0.90

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.00

GREY LH REAR FENDER - Call your local BRP dealership | Model-North America

715002760

Unavailable

Grey LH Rear Fender

715002762

$124.60

YELLOW LH REAR FENDER - Call your local BRP dealership | Model-North America

715002757

Unavailable

YELLOW LH REAR FENDER - Call your local BRP dealership

715002759

Unavailable

BREAKUP COUNTRY CAMO LH REAR FENDER KIT - Call your local BRP dealership | Model-North America

715003354

Unavailable

Camo, LH Rear Fender | Model-International

715003358

$368.63

Grey RH Rear Fender | Model-North America

715002770

$124.60

Grey RH Rear Fender

715002771

$124.60

Yellow RH Rear Fender | Model-North America

715002772

$124.60

YELLOW RH REAR FENDER - Call your local BRP dealership

715002773

Unavailable

CAMO-RH Rear Fender | Model-North America

715003360

$368.63

CAMO-RH Rear Fender | Model-International

715003361

$368.63

Luggage Rack Kit

715001852

$200.72

Rack Kit | Model-International

715002240

$172.36

Box Ass'y

708200408

$80.74

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$34.30

Tool Kit

704700162

$44.99

Remote Control

710002270

$52.21

Adjustment Wrench

529000035

$2.19
