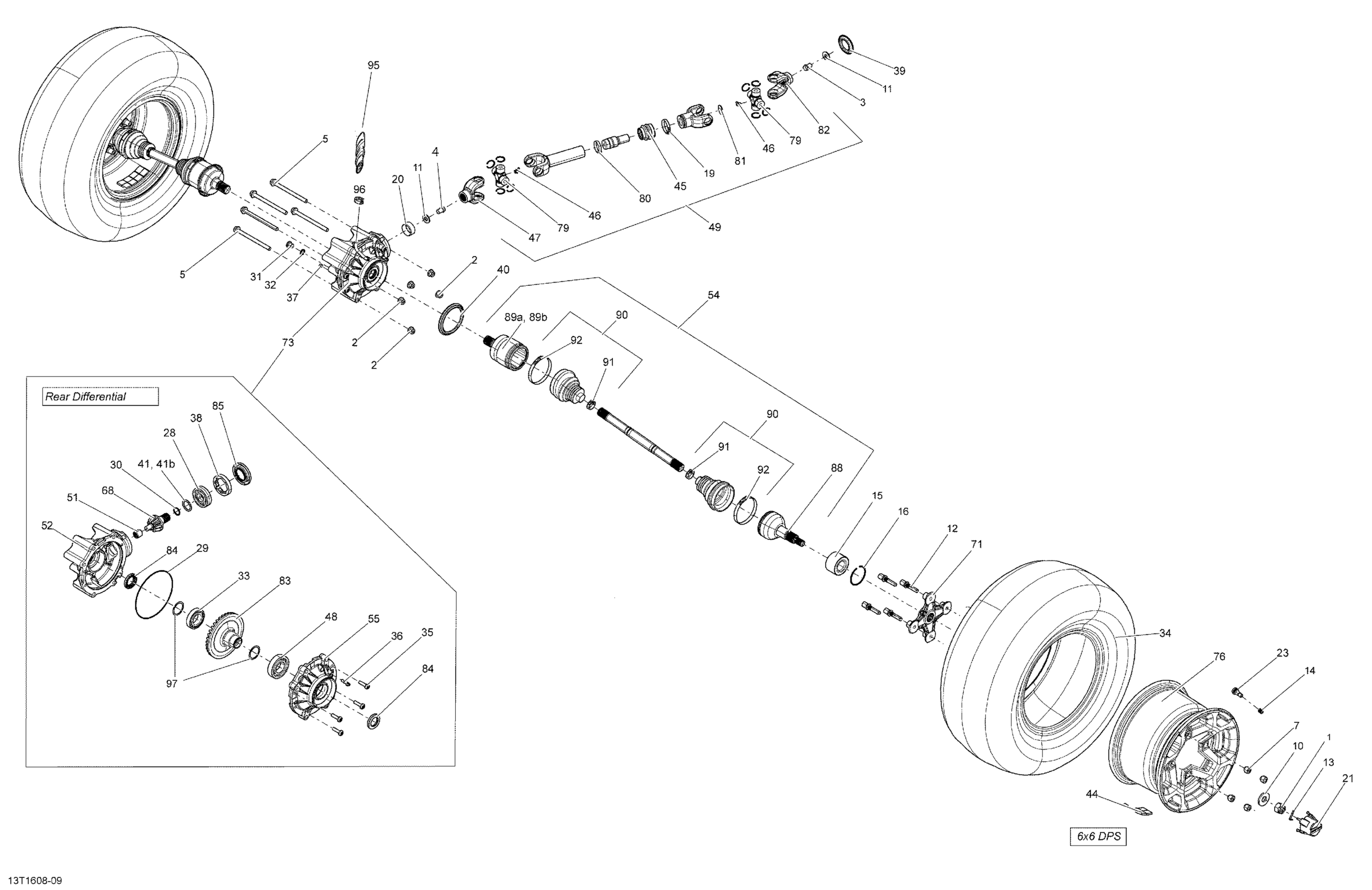

Can-Am Outlander 6X6 - 650 EFI, 2016 Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$2.82

2

Hex. Flange Elastic Nut M10

233201436

$1.74

3

Hex Flange Screw M12 X 16

250001039

$1.74

4

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

5

Hex. Flange Screw M10 X 135

250001041

$4.46

7

Black, Wheel Nut M10 X 1.25

250100184

$2.48

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

10

Conical Spring Washer M18

250200171

$5.28

11

Flat Washer M12

250200102

$1.74

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

13

Cotter Pin

250400036

$1.74

14

Valve Cap

293000110

$1.18

15

Ball Bearing

293350150

$51.93

16

Circlip

293370019

$4.98

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

20

Wear Ring | 4X4

705400036

$25.35

21

Wheel Cap

705400928

$11.06

23

Rim Valve With Cap

705400193

$6.69

28

Ball Bearing | 4X4

705500260

$30.39

29

Seal | 4X4

705500265

$16.12

30

O-Ring | 4X4

705500267

$6.25

31

Fill Level Plug | 4X4

705500504

$7.61

32

Copper Washer | 4X4

705500506

$0.36

33

Ball Bearing

705502737

$46.07

34

Tire | STD

705501767

$172.28

34

Tire | XT, C/U, INT

705501769

$156.89

35

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

36

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

37

Fill Level Plug | 4X4

705500504

$7.61

38

Nut | 4X4

705401603

$36.89

39

Protector

705501123

$7.37

40

Wear Ring

705501124

$7.28

41

Pinion Gear Shim

705501162

$15.17

41b

Pinion Gear Shim 1.67 mm

705502061

$16.12

44

1/2 Oz Weight

219704465

$4.35

45

Rubber Boot

715900118

$13.83

46

Grease Fitting

715900184

$4.62

47

Fixe Yoke

715900296

$23.05

48

Ball Bearing

705502738

$56.52

49

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$396.89

51

Needle Bearing

705501408

$66.49

52

Rear Differential Housing RH

705501919

Unavailable

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$232.74

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$232.74

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$232.74

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$232.74

55

Rear Differential Housing LH

705501973

Unavailable

68

PINION 10 TOOTH - Call your local BRP dealership

705501571

Unavailable

71

Wheel Hub Ass'y

705501716

$129.20

73

Rear Drive Unit Ass'y

705501916

Unavailable

76

Silver Rear Rim | STD

705501460

$139.97

76

Black, Rear Rim | XT CAMO

705501493

$139.97

76

Black, Rim | XT

705501856

$139.97

76

Black, Rim | STD

705501802

$109.97

79

Universal Joint

715900270

Unavailable

80

Oetiker Gear Clamp 36.1MM

509000045

$3.55

81

COVER - Call your local BRP dealership

715900187

Unavailable

82

Joint

715900272

$23.05

83

Gear, 36 Tooth

705501397

$416.89

84

Oil Seal

705501996

$20.74

85

Oil Seal | 4X4

705401481

$18.43

88

CV Joint

705501776

Unavailable

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$5.38

90

Boot Kit

705501864

$41.51

91

Oetiker Clamp, 27.3 mm

715900242

$7.84

92

Oetiker Clamp, 82.1 mm

715900241

$7.84

95

Rubber Bellow | 4X4

705400552

$6.02

96

Oetiker Clamp

293650042

$1.40

97

Differential Shim 0.02 mm

705502060

$13.83
