Description

Price

1

PINION 10 TOOTH - Call your local BRP dealership

705501571

Unavailable

2

O-Ring | 4X4

705500267

$6.25

3

Oil Seal | 4X4

705401481

$18.43

4

Nut

705502059

$32.28

5

Ball Bearing | 4X4

705500260

$30.74

6

Pinion Gear Shim

705501162

$15.17

7

Pinion Gear Shim 1.67 mm

705502061

$16.12

8

Seal | 4X4

705500265

$16.12

9

Needle Bearing

705501408

$66.89

10

Ball Bearing

705502738

$56.89

11

Oil Seal

705501996

$20.74

12

Cover Machined

705501918

Unavailable

13

Gear, 36 Tooth

705501397

$416.89

14

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

$1.89

15

Middle Differential Crakcase Machined

705501920

Unavailable

16

Fill Level Plug | 4X4

705500504

$7.61

17

Copper Washer | 4X4

705500506

$0.36

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

19

Ball Bearing

705502737

$46.12

20

Final Drive Unit

705502230

$932.28

21

Differential Shim 0.02 mm

705502060

$13.83

22

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$313.82

23

Wear Ring | 4X4

705400036

$25.35

24

Flat Washer M12

250200102

$1.74

25

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

26

Fixe Yoke

715900101

$27.66

27

Universal Joint

715900326

$69.20

28

Grease Fitting

715900184

$4.62

29

Oetiker Gear Clamp 36.1MM

509000045

$3.55

30

Rubber Boot

715900118

$13.83

31

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

32

COVER - Call your local BRP dealership

715900187

$7.89

33

Fixed Joint

715900129

$23.05

34

Hex Flange Screw M12 X 16

250001039

$1.74

35

Protector

705501123

$7.37

36

Polyurethane Hose 10000Mm Long

219704410

$46.12

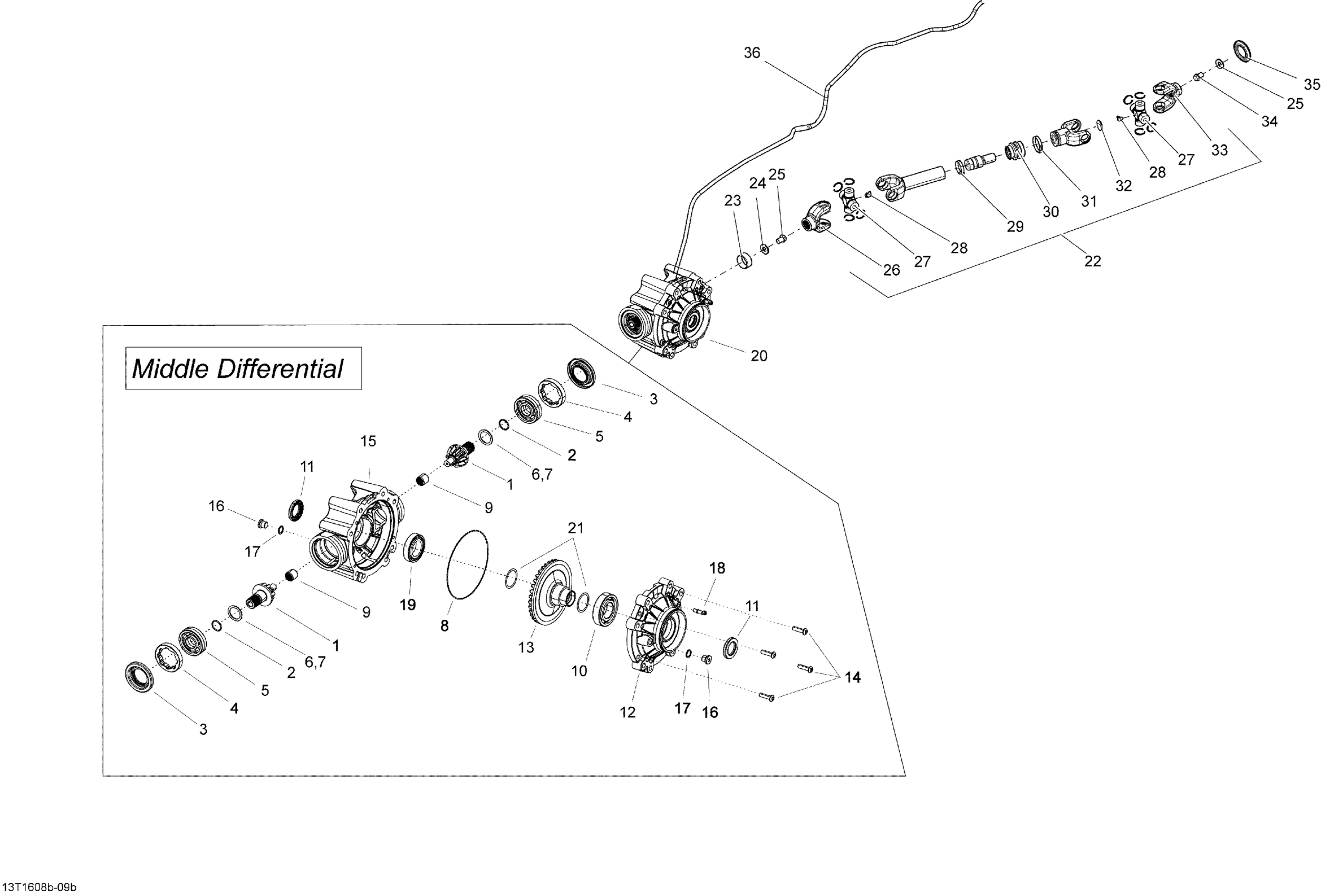

Can-Am Outlander 6X6 - 650 EFI, 2016 Drive System, Rear Middle Differential Diagram
