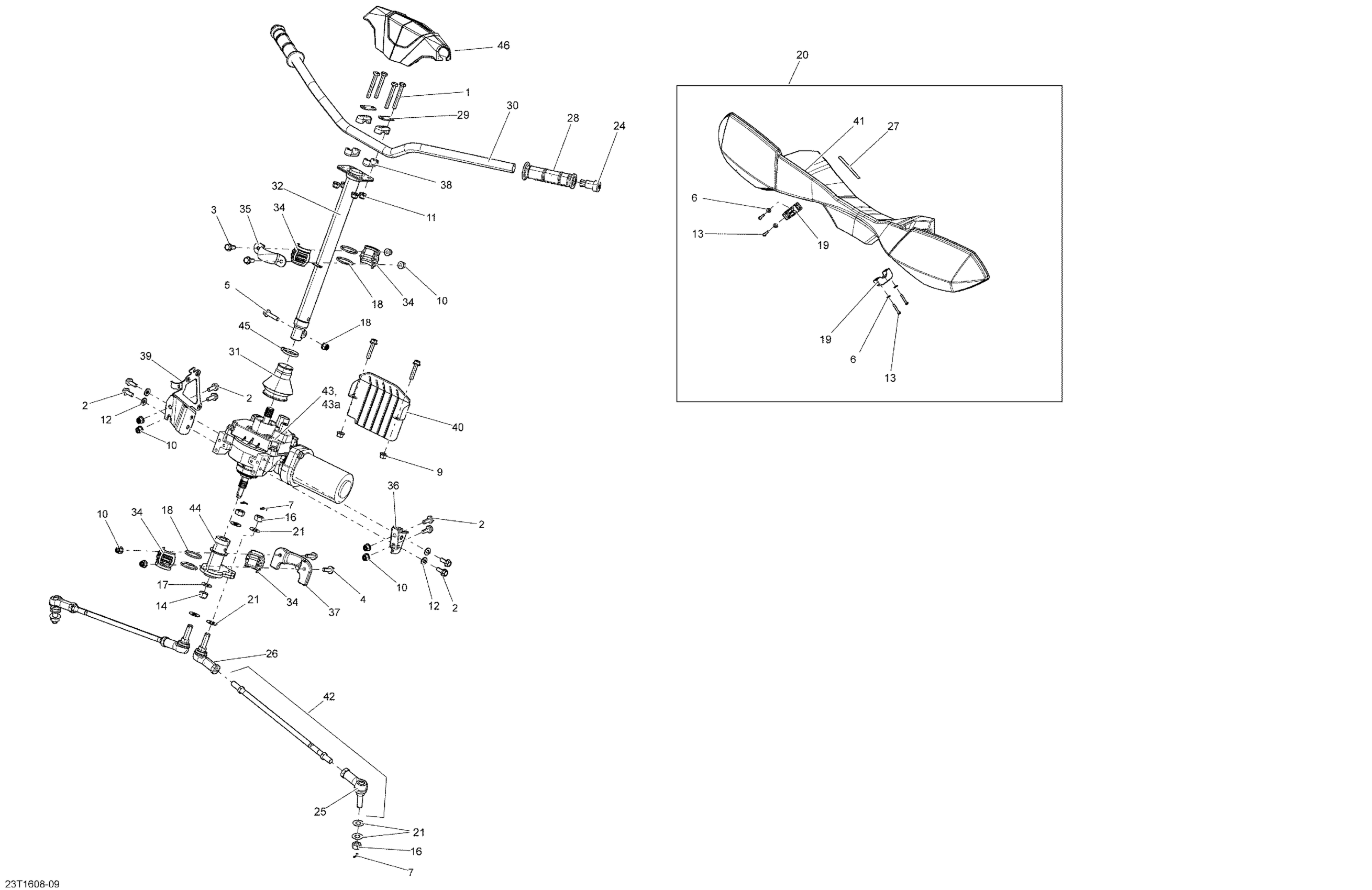

Can-Am Outlander 6X6 - 650 EFI, 2016 Steering Diagram

#

Description
Price

1

Hex. Screw M8 X 60

207086046

$2.30

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

3

Hex. Flange Screw M8 X 20

207682044

$0.92

4

Hex. Flange Screw M8 X 25

207682544

$0.90

5

Hex. Flange Screw M8 X 35

207683544

$1.39

6

Flat Washer | XT

211200035

$0.46

7

Cotter Pin

211400013

$0.32

9

Hex. Flange Nut M8

233081416

$1.63

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Hex. Elastic Flange Nut M8

233281416

$1.25

12

Conical Spring Washer M8

234281474

$1.25

13

Hex. Flange Screw K40 X 25

241142560

$2.17

14

Hex. Flange Elastic Nut M12

250000047

$1.56

16

Nut M12

250100099

$1.64

17

Hardened Washer

706200281

$2.34

18

O-Ring

293300068

$5.29

19

U-Clamp | XT

517303264

$11.43

20

Handle Guard Ass'y, XT

703100352

$96.89

21

Hardened Washer

706200281

$2.34

24

End Piece

709400449

$8.29

25

LH Ball Joint

709402303

$35.14

26

RH Ball Joint

709402302

$35.14

27

DPS Decal

704902966

$11.54

28

Handle Grip

709400493

$14.75

29

Stiffner

709400509

$4.43

30

Black, Handle Bar

709401240

$55.35

31

Bellows

709400674

$16.12

32

Kit Tube-Main.

703501137

$170.74

34

Spherical Half Bushing

709400783

$6.14

35

Upper Column Attachment

709400827

$1.00

36

Power Steering Module Bracket

709400848

$15.22

37

Column Attachment

709401428

$36.12

38

Steering Support

709400919

$20.74

39

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

40

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

41

Handle Bar Protector | XT

709400822

$87.66

42

Tie Rod Ass`y | Includes 15 to 17

703501038

$92.28

43

Power Steering

709401608

$997.49

43a

Calibration Electronic Module DPS

709401573

Unavailable

44

Lower Steering Tube, Black

709401320

Unavailable

45

Tie-Rap 173 mm

293750009

$0.85

46

Cover

709400939

$23.05
