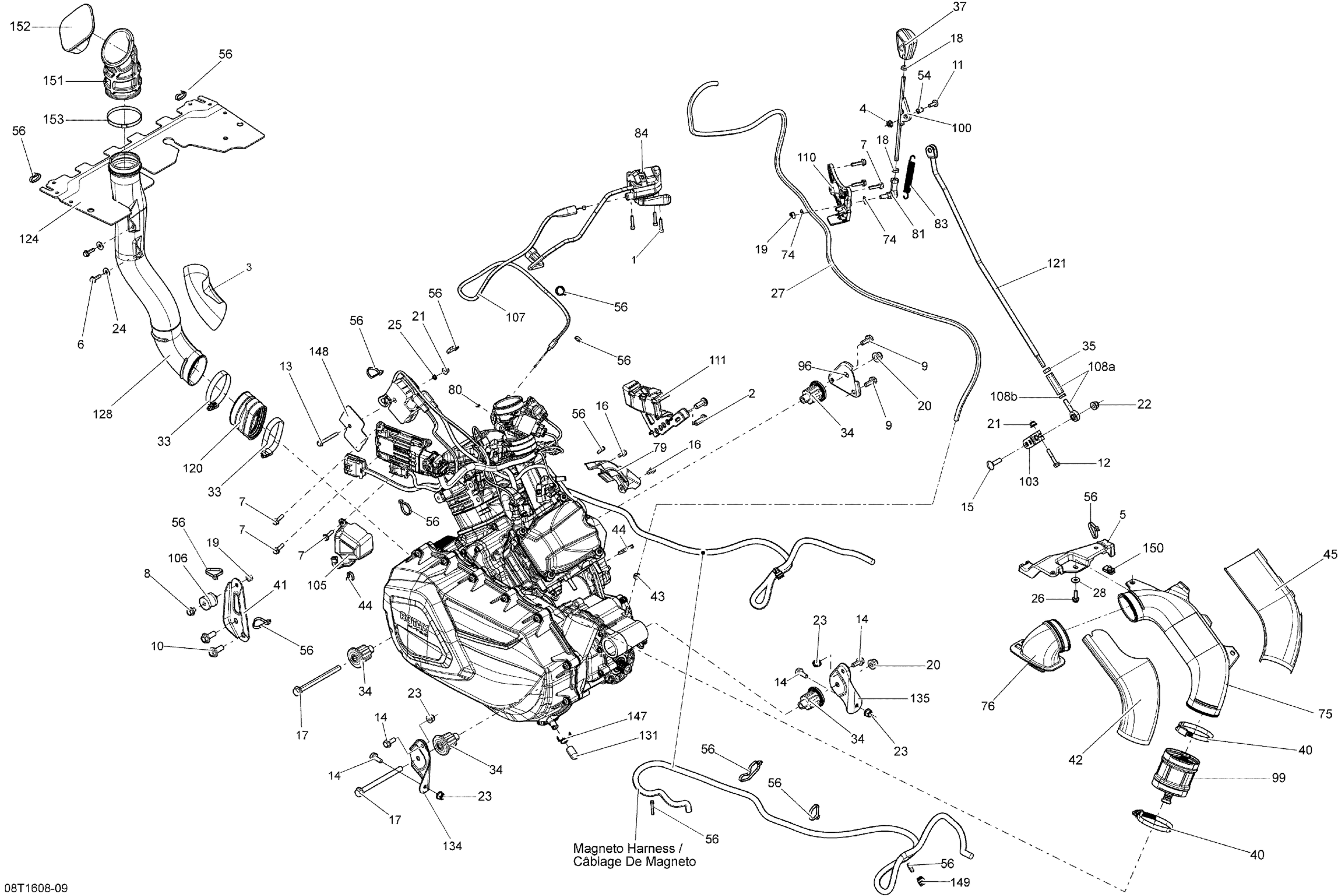

Can-Am Outlander 6X6 - 650 EFI, 2016 Engine And Engine Support Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.56

2

Screw Socket M10 X 25 | Europe

205402556

$3.25

3

Heat Shield

707001654

$2.75

4

Hex. Flange Nut M6

233161414

$1.74

5

Air Outlet Support

707001262

$7.69

6

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

7

Hex. Flange Screw M6 X 25

207562544

$1.39

8

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

9

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

10

Hex. Flange Screw M10 X 25

207602544

$1.33

11

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

12

Hex. Flange Screw M6 X 35

207663544

$0.74

13

Hex. Flange Screw M6 X 50

207665044

$3.38

14

Hex. Flange Screw M8 X 20

207682046

$1.82

15

Carriage Bolt M8 X 30

207783044

$1.74

16

Hex. Flange Screw M6 X 12

210261250

$1.56

17

Hex. Flange Screw M10 X 125

230602546

$6.08

18

Hex. Jam Nut M8

232180600

$0.56

19

Hex. Elastic Stop Nut M8

232581414

$0.47

20

Hex. Flange Elastic Nut M10

233201436

$1.74

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Hex. Elastic Flange Nut M8

233281416

$1.25

24

Flat Washer M6, Stainless

234062600

$0.64

25

External Serrated Lock Washer 6 mm

234461608

$0.92

26

Hex. Flange Screw M6 X 20

207662044

$1.66

27

Polyurethane Hose 10000Mm Long

219704410

$46.12

28

Flat Washer 6 mm

234062410

$0.64

33

Norma Clamp

293650091

$4.60

34

Vibration Damper

707001169

$44.99

35

Hex. Nut M8, LH Threads

250100144

$1.64

37

Lever Trim

707003211

$7.95

40

Norma Gear Clamp

293650118

$9.74

41

Upper Engine Bracket

707001256

$11.83

42

Heat Shield

707001205

$9.29

43

Clamp, Oetiker

293650195

$1.37

44

Tie Wrap 142 mm

293750002

$0.88

45

Heat Shield

707001206

$9.29

54

Bushing

293900019

$7.37

56

Tie-Rap 180 mm

414115200

$0.09

74

Washer

506151252

$3.11

75

Air Outlet

706600019

$36.89

76

CVT Cooling Duct Out

706600400

$50.74

79

Cover OPS

707000410

$12.91

80

Cable Guide

707000434

$10.52

81

RH Ball Joint

707001959

$35.14

83

Spring

707000577

$10.03

84

Throttle Handle

707001518

$143.05

96

Engine Support

707003319

$9.23

99

CVT Air Outlet Adaptor

707001168

$15.35

100

Shift Arm | Except Europe

707000840

$15.22

103

Lever

707000911

$18.43

105

Cover

707000945

$6.45

106

Rubber Isolator

707000949

$9.00

107

Throttle Cable

707000955

$12.91

108a

Ball Joint Ass'y | Includes 55 to 56

707000966

$35.14

108b

Hex. Jam Nut M8

232180600

$0.56

110

Lever Support

707003054

$6.45

111

Cable Support

707003053

$8.46

120

Flexibale Adaptor

707002585

$14.75

121

Shifter Rod

707002068

$32.28

124

Upper Water Deflector

707001124

$23.05

128

CVT Air Inlet

707002067

$50.74

131

Plug

707001185

$1.37

134

LH Rear Engine Bracket

707001191

$9.23

135

RH Rear Engine Bracket

707001192

$9.23

147

Retainer Clip

707800506

$10.98

148

Insulator Pad

710000073

$11.06

149

Tie-Rap Clip

710002896

$4.60

150

Panel Nut M6 X 1.0

250100198

$1.73

151

CVT Inlet

707001864

$64.58

152

CVT Filter

707001786

$17.66

153

Crimp Clamp

293650240

$6.55
