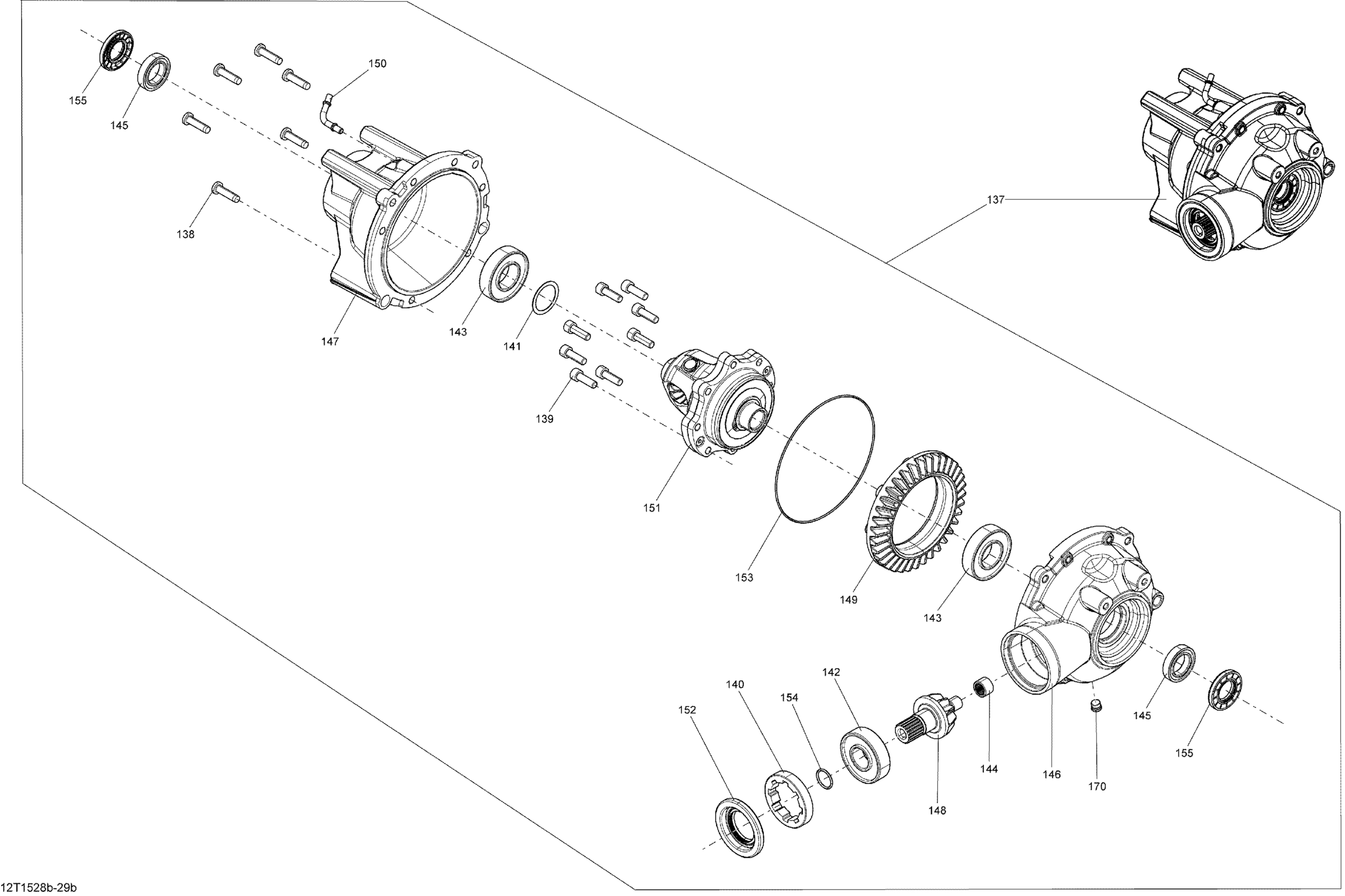

Can-Am Outlander 6X6 650 EFI, 2015 Drive System, Front Differential_12T1528b Diagram

Description

Price

137

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

138

Screw | 4X4

705401601

$9.29

139

Screw | After May 30, 2014

705401602

$6.45

140

Nut | 4X4

705401603

$36.89

141

Shim | 4X4

705401604

$55.35

142

Ball Bearing | After May 30, 2014

705401605

$30.74

143

Ball Bearing | 4X4

705401606

$49.20

144

Ball Bearing | After May 30, 2014

705402848

$46.12

145

Ball Bearing | After May 30, 2014

705401608

$49.20

146

Front Pinion Cover | After May 30, 2014

705401792

$143.05

147

Front Cover | After May 30, 2014

705401610

$143.05

148

Pinion 10 Teeth | After May 30, 2014

705402841

$207.66

149

Gear 36 Teeth | After May 30, 2014

705401612

$383.05

150

Vent Valve | After May 30, 2014

705401613

$14.37

151

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

152

Oil Seal | After May 30, 2014

705401615

$18.43

153

Seal | After May 30, 2014

705401616

$13.83

154

O'Ring | After May 30, 2014

705401617

$7.37

155

Gasket | 4X4

705401618

$17.66

170

Drain Plug | After May 30, 2014

705501885

$12.68
