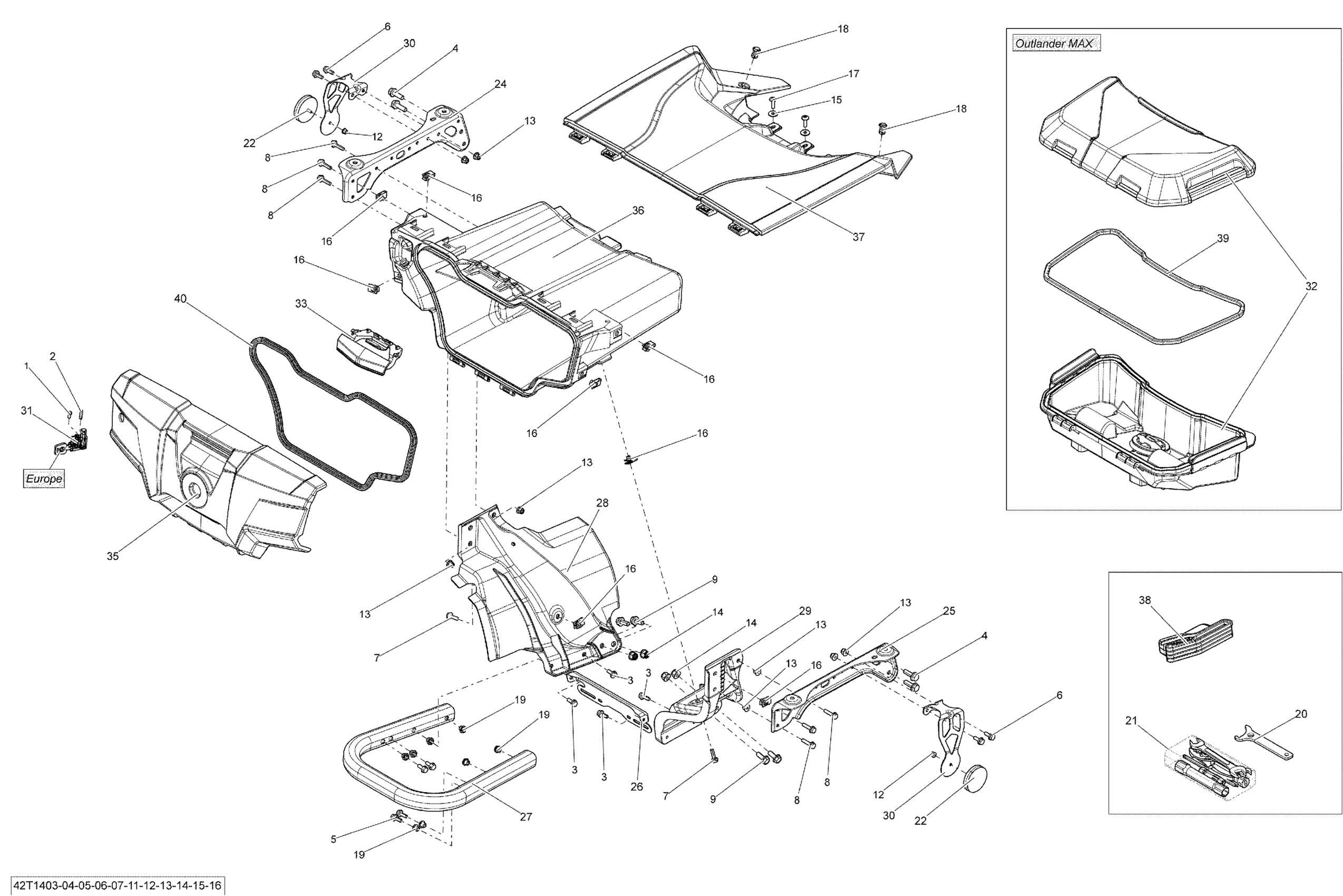

Can-Am Outlander 650EFI XMR, 2014 Rear Cargo Box Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.38

2

Socket Set Screw M5 X 20 | Europe

206252044

$1.25

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

5

Hex. Flange Screw M6 X 16

207661634

$1.74

6

Hex. Flange Screw M6 X 16

207661644

$0.61

7

Hex. Flange Screw M6 X 20

207662044

$1.66

8

Hex. Flange Screw M6 X 25

207662544

$0.53

9

Hex. Flange Screw M8 X 20

207682044

$0.92

12

Hex. Flange Elastic Nut M5

233251414

$1.66

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Hex. Flange Elastic Nut M8

233281414

$1.14

15

Not Available As Spare Parts

XXX

Unavailable

16

Panel Nut M6 X 1.0

250100198

$1.73

17

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

18

Tuflok Plastic Rivet

293150230

$1.21

19

Threaded Insert M6 X 1.0

250100242

$2.54

19

Threaded Insert M6 X 1.0

250100242

$2.54

20

Adjustment Wrench

529000035

$2.19

21

Tool Kit

704700162

$44.99

22

Red Reflector

705011221

$12.32

24

LH Support

705004563

$28.43

25

RH Support

705004564

$28.43

26

Plate Support

705004806

$14.75

27

Rear Bumper Ass'y

715001564

$55.35

27

REAR BUMPER - Call your local BRP dealership | Europe

715001566

$40.74

28

LH Cargo Support

705006997

$51.51

29

RH Cargo Support

705006998

$51.51

30

Reflector Support | Except Europe

705202576

$7.11

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Handle Latch

708201250

$11.54

35

Rear Panel

708300150

$36.89

35

Rear Panel | Europe

708300511

$55.35

36

Rear Storage Box

708300674

$87.66

37

REAR STORAGE COVER - Call your local BRP dealership

708300848

$40.74

38

Remote Control

710002270

$55.35

39

Not Available As Spare Parts

XXX

Unavailable

40

NEOPRENE SEAL - Call your local BRP dealership

293250275

Unavailable
