Partiron

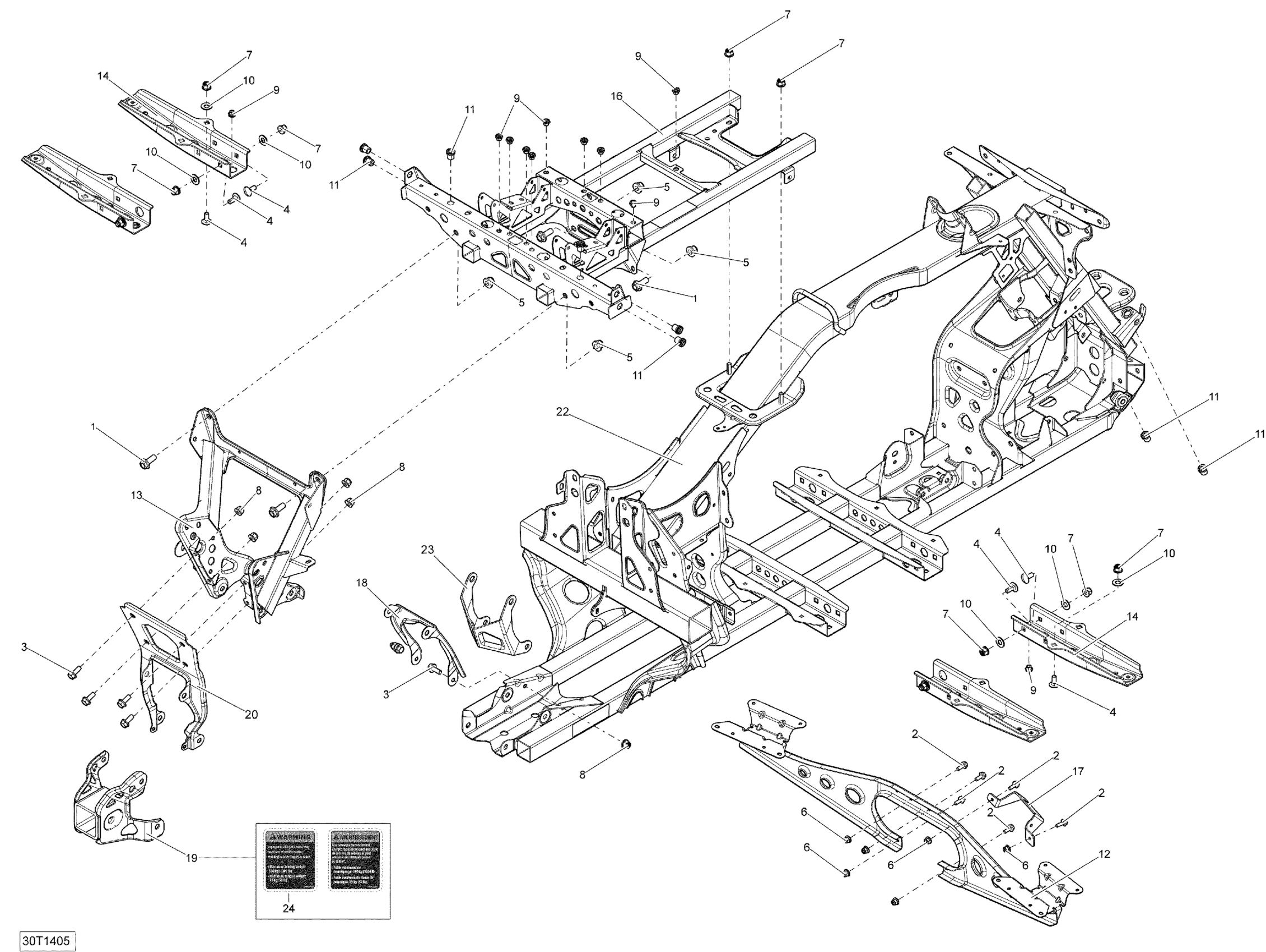

Can-Am Outlander 650EFI XMR, 2014 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602546

$1.74

2

Not Available As Spare Parts

XXX

Unavailable

3

Hex. Flange Screw M8 X 20

207682046

$1.82

4

Carriage Bolt, M8 X 20

207782044

$1.56

5

Hex. Flange Elastic Nut M10

233201436

$1.74

6

Not Available As Spare Parts

XXX

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Elastic Flange Nut M8

233281416

$1.25

9

Threaded Insert M6 X 1.0

250100242

$2.54

10

Flat Washer 10 mm

234001410

$0.98

11

Insert Half Hex Body M8 x 1.25

293450307

$2.03

12

Not Available As Spare Parts

XXX

Unavailable

13

Rear Pillar

705210818

$69.99

14

SUPPORT KIT - Call your local BRP dealership

703500852

$70.99

16

WELDED EXTENSION, BLACK - Call your local BRP dealership

705202291

$129.99

17

Not Available As Spare Parts

XXX

Unavailable

18

FRONT LINK - Call your local BRP dealership

705202900

$22.99

19

Trailer Hitch

715005186

$134.99

20

Rear Support

705203301

$41.51

22

FRAME, BLACK - Call your local BRP dealership

705203598

$859.99

23

Not Available As Spare Parts

XXX

Unavailable

24

WARNING DECAL, TRAILER - Call your local BRP dealership | North America, International

704902780

Unavailable
