Description

Price

1

Hex. Flange Castellated Nut M18

232291413

$2.82

2

Hex. Flange Elastic Nut M10

233201436

$1.74

3

Hex Flange Screw M12 X 16

250001039

$1.74

4

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

5

Hex. Flange Screw M10 X 135

250001041

$4.46

7

Black, Wheel Nut M10 X 1.25

250100184

$2.48

8

Not Available As Spare Parts

XXX

Unavailable

10

Conical Spring Washer M18

250200171

$5.28

11

Flat Washer M12

250200102

$1.74

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

13

Cotter Pin

250400036

$1.74

14

Valve Cap

293000110

$1.18

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.98

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

20

Wear Ring | 4X4

705400036

$25.35

21

Wheel Cap

705400928

$11.06

23

Rim Valve With Cap

705400193

$6.69

28

Ball Bearing | 4X4

705500260

$30.74

29

Seal | 4X4

705500265

$16.12

30

O-Ring | 4X4

705500267

$6.25

31

Fill Level Plug | 4X4

705500504

$7.61

32

Copper Washer | 4X4

705500506

$0.36

33

Ball Bearing

705502737

$46.12

34

Rear Tire

705501836

$218.43

35

Screw | 4X4

705401601

$9.29

36

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

37

Drain Plug | 4X4

705500894

$11.06

38

Nut

705502059

$32.28

39

Protector

705501123

$7.37

40

Wear Ring

705501124

$7.28

41

Pinion Gear Shim

705501162

$15.17

41b

Pinion Gear Shim 1.67 mm

705502061

$16.12

44

Not Available As Spare Parts

XXX

Unavailable

45

Rubber Boot

715900118

$13.83

46

Grease Fitting

715900184

$4.62

47

Fixe Yoke

715900101

$27.66

48

Ball Bearing

705502738

$56.89

49

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$295.35

51

Needle Bearing

705501408

$66.89

52

PINION REAR COVER - Call your local BRP dealership

705501420

$189.97

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

55

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

$221.51

68

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

71

Wheel Hub Ass'y

705501716

$129.20

73

Rear Differential Ass'y

705501896

Unavailable

76

Black, Rim | XT

705501856

$139.97

79

Universal Joint

715900326

$69.20

80

Oetiker Gear Clamp 36.1MM

509000045

$3.55

81

COVER - Call your local BRP dealership

715900187

$7.89

82

Not Available As Spare Parts

XXX

Unavailable

83

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

84

Oil Seal

705501996

$20.74

85

Oil Seal | 4X4

705401481

$18.43

86

Not Available As Spare Parts

XXX

Unavailable

87

Not Available As Spare Parts

XXX

Unavailable

87b

Not Available As Spare Parts

XXX

Unavailable

88

CV Joint

705501776

Unavailable

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$5.38

90

Boot Kit

705501864

$41.51

91

Oetiker Clamp, 27.3 mm

715900242

$7.84

92

Oetiker Clamp, 82.1 mm

715900241

$7.84

94

Joint Protector

705501842

$8.29

95

Polyurethane Hose 10000Mm Long

219704410

$46.12

96

Tie Wrap 368 mm

293750008

$0.85

103

Differential Shim 0.02 mm

705502060

$13.83

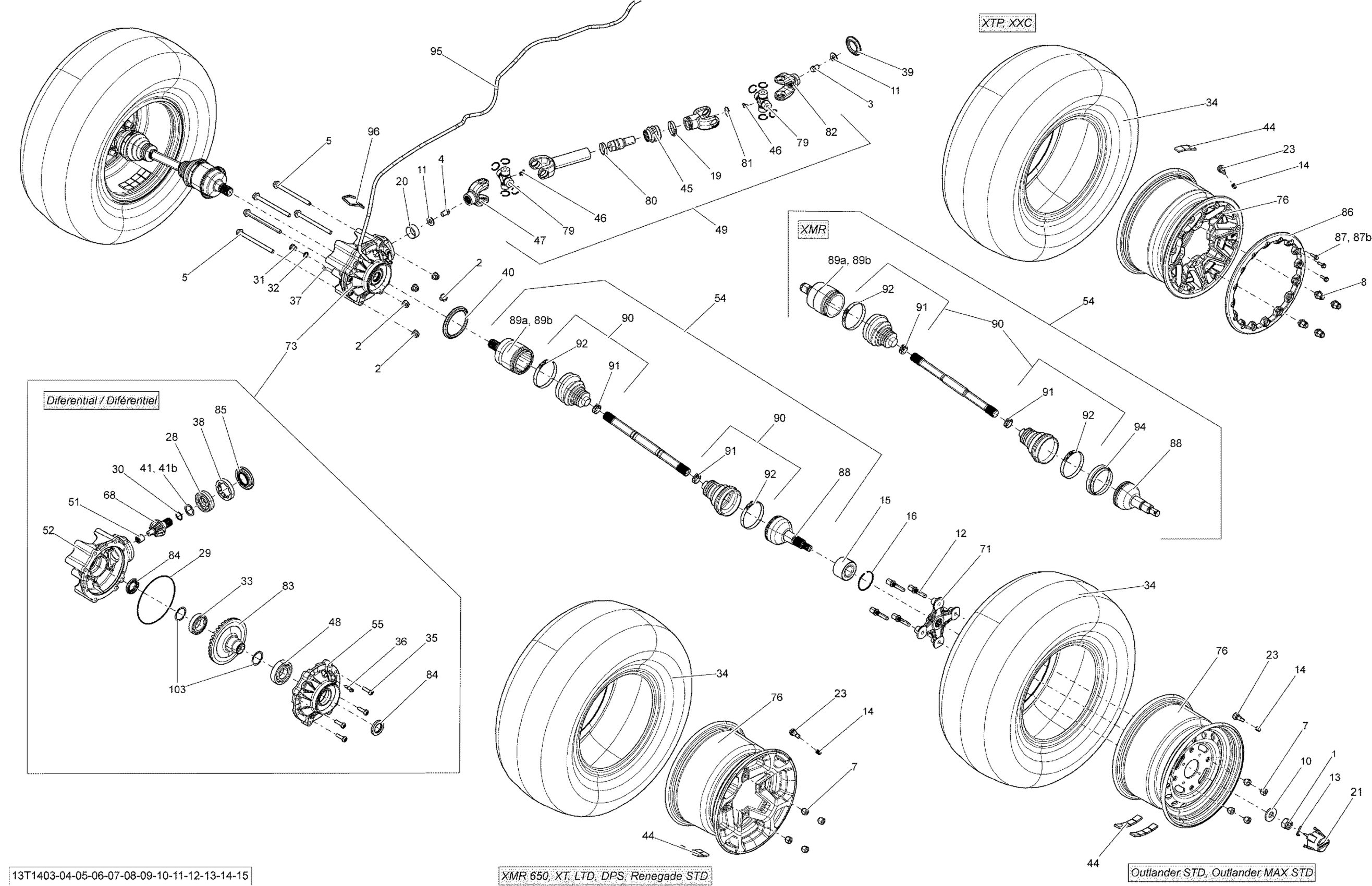

Can-Am Outlander 650EFI XMR, 2014 Drive System, Rear Diagram
