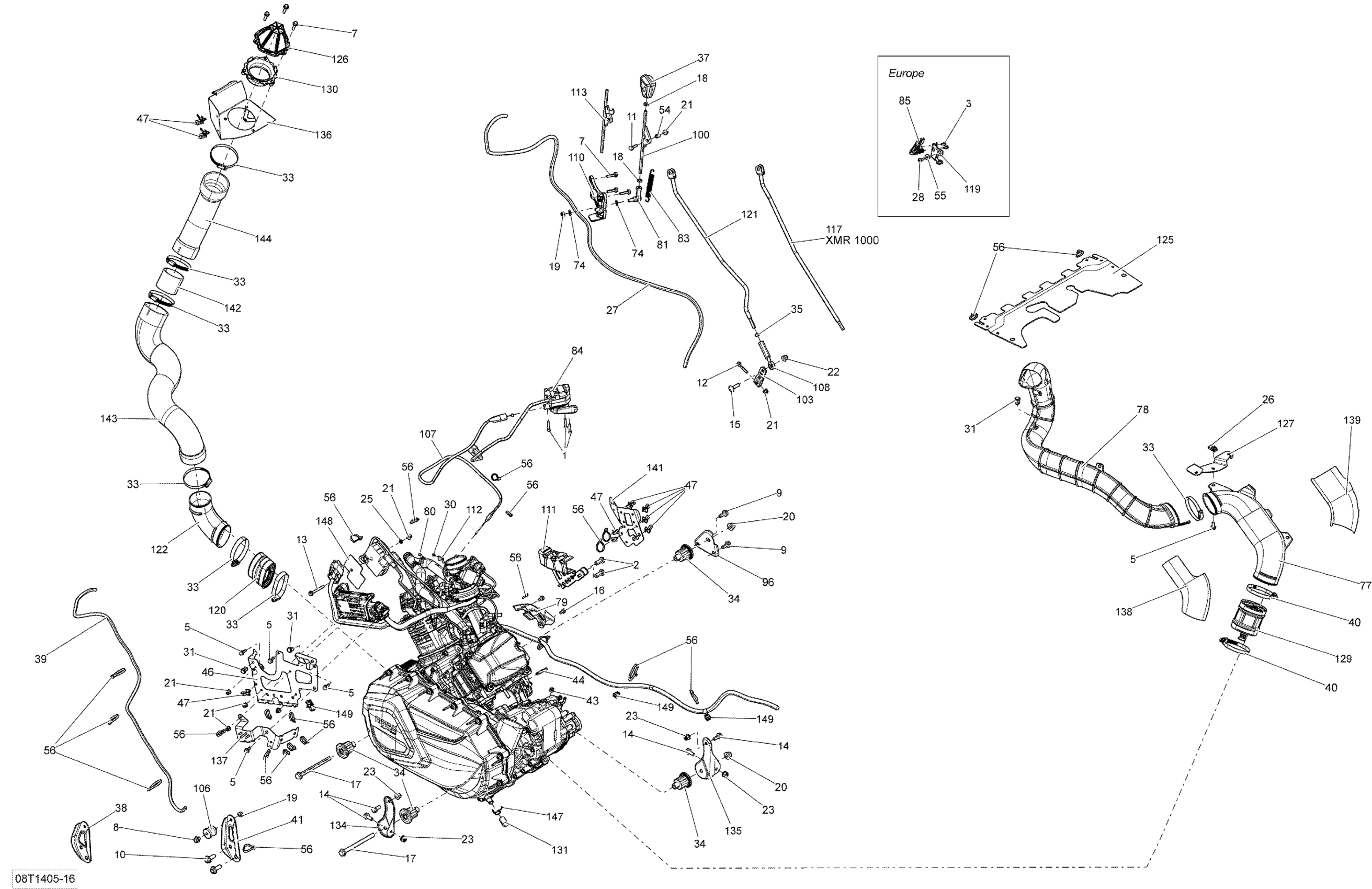

Can-Am Outlander 650EFI XMR, 2014 Engine Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.56

2

Screw Socket M10 X 25 | Europe

205402556

$3.25

3

Socket Head Screw M5 X 10

205951046

$2.38

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

7

Hex. Flange Screw M6 X 25

207562544

$1.39

8

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

9

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

10

Hex. Flange Screw M10 X 25

207602544

$1.33

11

Hex. Flange Screw M6 X 25

207662544

$0.53

12

Hex. Flange Screw M6 X 35

207663544

$0.74

13

Hex. Flange Screw M6 X 50

207665044

$3.38

14

Hex. Flange Screw M8 X 20

207682046

$1.82

15

Carriage Bolt M8 X 30

207783044

$1.74

16

Hex. Flange Screw M6 X 12

210261250

$1.56

17

Hex. Flange Screw M10 X 125

230602546

$6.08

18

Hex. Jam Nut M8

232180600

$0.56

19

Hex. Elastic Stop Nut M8

232581414

$0.47

20

Hex. Flange Elastic Nut M10

233201436

$1.74

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Hex. Elastic Flange Nut M8

233281416

$1.25

25

External Serrated Lock Washer 6 mm

234461608

$0.92

26

Panel Nut M6 X 1.0

250100198

$1.73

27

Polyurethane Hose 10000Mm Long

219704410

$46.12

28

Torx Screw K50 X 16

250000720

$1.39

30

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

31

Tuflok Plastic Rivet

293150230

$1.21

33

Norma Clamp

293650091

$4.60

34

Vibration Damper

707001169

$41.51

35

Hex. Nut M8, LH Threads

250100144

$1.64

37

Lever Trim

707003211

$7.95

38

Not Available As Spare Parts

XXX

Unavailable

39

Polyurethane Hose 10000Mm Long

219704410

$46.12

40

Norma Gear Clamp

293650118

$9.74

41

Upper Engine Bracket

707001256

$11.83

43

Clamp, Oetiker

293650195

$1.37

44

Tie Wrap 142 mm

293750002

$0.88

46

Welded Support

707001498

$79.20

47

Tie-Rap 173 mm

293750009

$0.85

54

Bushing

293900019

$7.37

55

Washer | DS 650 X

391301600

$0.48

56

Tie-Rap 180 mm

414115200

$0.09

74

Washer

506151252

$3.11

77

Air Outlet

706600019

$36.89

78

AIR OUTLET - Call your local BRP dealership

706600020

Unavailable

79

Cover OPS

707000410

$12.91

80

Cable Guide

707000434

$10.52

81

RH Ball Joint

707001959

$35.35

83

Spring

707000577

$10.03

84

Throttle Handle | 4X4

707000595

$73.82

85

Not Available As Spare Parts

XXX

Unavailable

96

Engine Support

707003319

$9.23

100

Shift Arm | Except Europe

707000840

$15.22

103

Lever

707000911

$18.43

106

Rubber Isolator

707000949

$9.00

107

Throttle Cable

707000955

$12.91

108

Ball Joint Ass'y | Includes 55 to 56

707000966

$35.35

110

Lever Support

707003054

$6.45

111

Cable Support

707003053

$8.46

112

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

$14.49

113

Shift Arm | Europe

707001003

$16.12

117

Not Available As Spare Parts

XXX

Unavailable

119

Fixing Plate | Europe

707001042

$36.89

120

Flexibale Adaptor

707002585

$14.75

121

SHIFTER ROD - Call your local BRP dealership

707001082

Unavailable

122

CVT Air Inlet

707001087

$41.51

125

Deflector

707001129

$23.05

126

Filter CVT

707001130

Unavailable

127

Air Outlet Support

707001262

$7.69

129

CVT Air Outlet Adaptor

707001168

$15.35

130

CVT Filter Base

707001171

$8.98

131

Plug

707001185

$1.37

134

LH Rear Engine Support

707003325

$15.35

135

RH Rear Engine Bracket

707001194

$15.35

136

CVT Filter Support

707001203

$64.58

137

PROTECTOR CONNECTOR - Call your local BRP dealership

707001204

$17.66

138

Heat Shield

707001205

$9.29

139

Heat Shield

707001206

$9.29

141

Not Available As Spare Parts

XXX

Unavailable

142

Tube

707001263

$10.14

143

CVT Air Inlet

707001301

$50.74

144

CVT Air Inlet

707001302

$50.74

147

Retainer Clip

707800506

$10.98

148

Insulator Pad

710000073

$11.06

149

Tie-Rap Clip

710002896

$4.60
