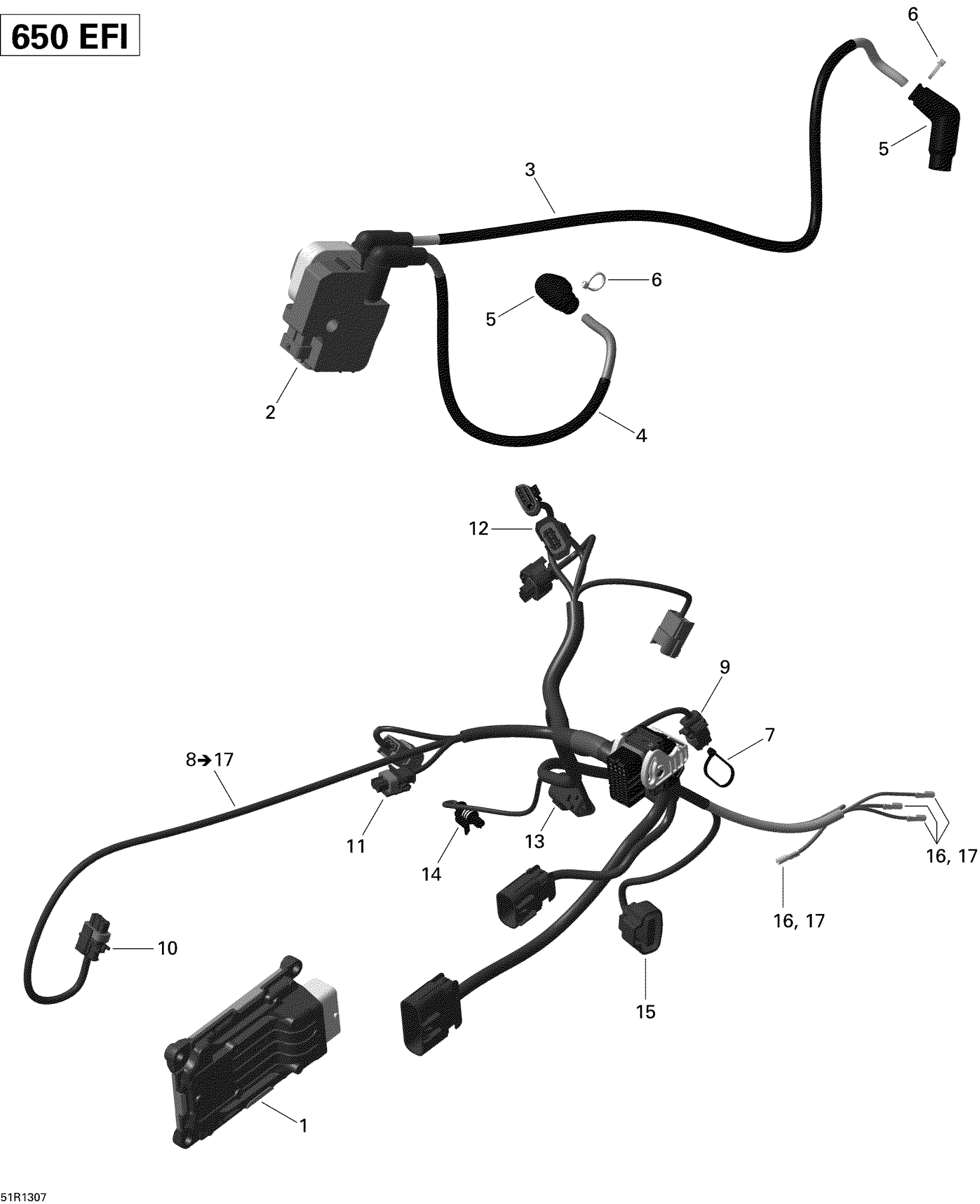

Can-Am Outlander 650EFI XMR, 2013 Engine Harness And Electronic Module Outlander XMR Diagram

#

Description

Price

1

ECM Connector | North America

420264780

Unavailable

1

ECM Connector | North America

420264780

Unavailable

2

Ignition Coil

278001546

Unavailable

3

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

4

Spark Plug Cable, 790 mm, Rear

420665333

Unavailable

5

Spark Plug Connector

420265248

Unavailable

6

Tie Rap

420866710

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

Unavailable

8

Engine Wiring Harness | Includes 8 to 17

420264791

Unavailable

9

Male Housing, 2 Circuits

278001005

Unavailable

10

Male Housing, 3 Circuits

278000997

Unavailable

11

Male Housing, 2 Circuits

278001005

Unavailable

12

Housing Connector, 3 Circuits

278001829

Unavailable

13

Male Housing

278002378

Unavailable

14

Male Housing, 1 Circuit

278001012

Unavailable

15

Male Housing, 4 Circuits

710000329

Unavailable

16

Female Terminal | DS 650 X

278001009

Unavailable

17

Insulated Sheath

278001007

Unavailable
