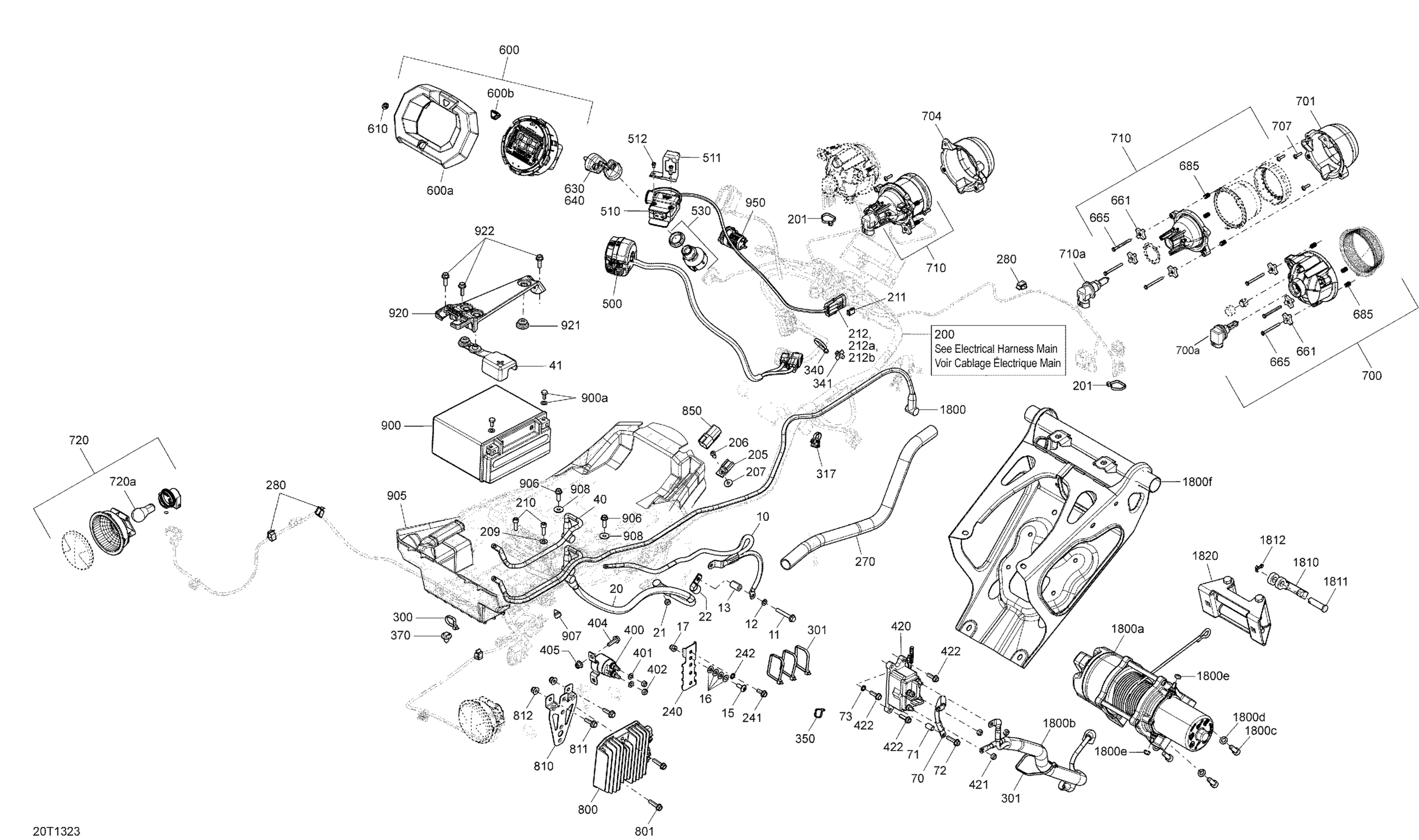

Can-Am Outlander 650EFI XMR, 2013 Electrical System Diagram

Ground Cable

710004382

$18.43

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

Lock Washer Helical M6

234161601

$0.92

Spacer

517203200

$15.35

Torx Screw M6 X 16

250000223

$1.74

Flat Washer

224061121

$0.44

Domed Nut M6

232361493

$1.77

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

Elastic Stop Nut M6

232561414

$1.55

Open Clamp

518321570

$6.03

Connector Ass'y

710004375

$32.28

Positive Cable

710004376

$46.12

Battery Cable Cap

710006729

$7.37

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

Sleeve

293900078

$12.68

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

External Serrated Lock Washer 6 mm

234461608

$0.92

Main Harness Ass'y | Includes 1 to SWW

710003623

Unavailable

Tie Wrap 142 mm

293750002

$0.88

Clip

270000141

$8.33

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Flat Washer

224061121

$0.44

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

Clip

710000992

$4.00

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

Wire Seal

278000216

$2.55

BRACKET - Call your local BRP dealership

710002567

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.22

External Serrated Lock Washer 6 mm

234461608

$0.92

Protective Tubing

710003260

$32.28

Clip

414227300

$1.45

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap Clip

710002896

$4.60

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 173 mm

293750009

$0.85

Tie Wrap 94 mm | 4X4

293750001

$0.83

Mount Dart

293730040

$0.86

Starter Relay

710007777

$46.89

Lock Washer Helical M6

234161601

$0.92

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 20

207662084

$0.83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Winch Solenoid | XT Models

710001000

$117.66

Elastic Stop Nut M6

232561414

$1.55

Hexagonal Head Screw

210262050

$1.74

Switch Kit | XT, XTP, XMR, LTD

703500920

$96.89

Winch Switch | XT, XTP, XMR, LTD,

710002724

$161.51

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

Ignition Switch

710008400

$78.43

CALIBRATED SPEEDOMETER - Call your local BRP dealership | Includes 600 to 600b

710003405

Unavailable

Trim Ring

710002092

$8.98

Button

710001473

$12.68

BRP Logo13 mm

704904615

$9.66

Black, Electronic Key

710000817

$55.35

Grey, Electronic Key

710002183

$55.35

Handle

572106600

$9.31

Hex. Screw K40 X 45

250000718

$1.74

Spring

517168600

$6.91

Low Beam | Includes 54 to 55

710006177

$115.35

Bulb 12V 55W

715900141

$41.51

RH High Front Housing

710002291

$27.66

LH High Front Housing

710002292

$23.05

Phillips Screw K40 X 16

250000723

$0.81

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Halogen Bulb

415129249

$39.97

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

Rectifier Support

710001752

$7.11

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Housing

710003006

$7.24

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Support

710008370

$46.12

Hexagonal Head Screw

210262050

$1.74

Rubber Bumper

293830005

$5.33

Stainless Steel Flat Washer

234062670

$1.74

Retaining Plate

710009129

$7.60

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662084

$0.83

DC Outlet

710001248

$31.17

Not Available As Spare Part - Friction Washer

Unavailable

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Winch Cables

710004378

$50.74

Socket Head Screw M8 X 20

205082044

$1.09

Lock Washer 8 mm

234181401

$0.89

Elastic Stop Nut M6

232561414

$1.55

Front Bumper Support

705016893

$324.58

Winch Hook Kit

705014949

$27.66

Clevis Pin

250400021

$11.83

Cotter Pin

250400022

$8.66

Fairlead_Roller Kit

715007699

$78.43

Fairlead_Roller Kit

715007699

$78.43
