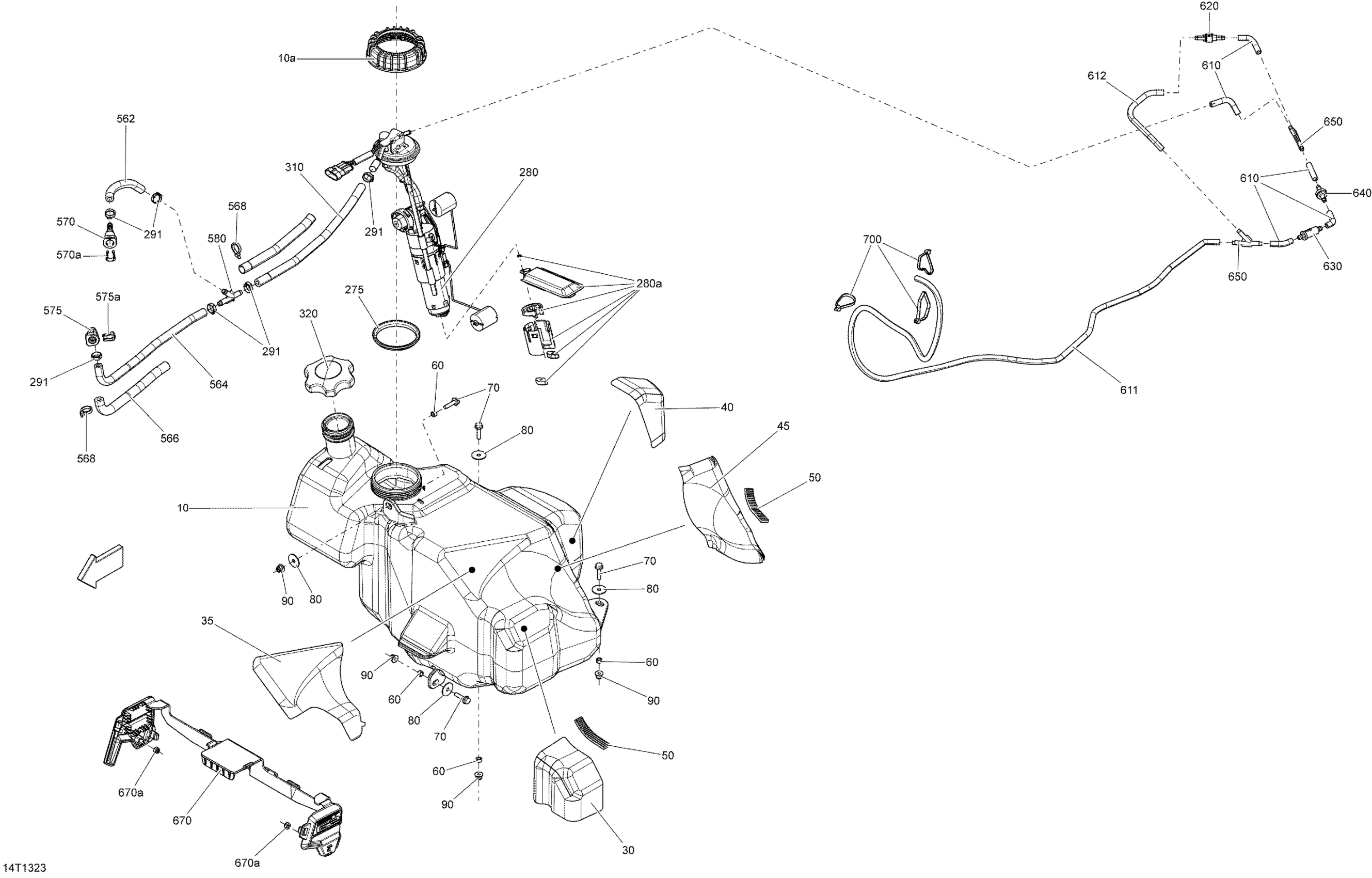

Can-Am Outlander 650EFI XMR, 2013 Fuel System Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

10a

Fuel Pump Module Nut

709000328

$12.82

30

Heat Reflective Sheet

709000381

$5.38

35

Heat Reflective Sheet

709000387

$4.62

40

Heat Reflective Sheet

709001071

$9.29

45

Heat Reflective Sheet

709000388

$5.38

50

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

60

Bushing | DS 650 X

293900104

$5.26

70

Hex. Flange Screw M6 X 25

207662544

$0.53

80

Washer

224060251

$0.57

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

275

Seal

709000208

$12.54

280

Fuel Pump | Includes 10a to 10b

709001517

$323.94

280a

Fuel Pre-Filter Kit

709000389

$78.43

291

Oetiker Clamp

293650046

$2.33

310

Was 709000163 Fuel Line

219704440

$108.43

320

Fuel Tank Cap

513033025

$19.47

562

Was 709000163 Fuel Line

219704440

$108.43

564

Was 709000163 Fuel Line

219704440

$108.43

566

Tubing 16 Mm 1000Mm Long

219704408

$6.23

568

Tie Wrap 142 mm

293750002

$0.88

570

Female Quick Fitting Ass'y

709000125

$11.12

570a

Locking Clip

513033135

$5.11

575

Quick Fitting 90° Ass'y

415128965

$8.78

575a

Locking Clip

513033135

$5.11

580

Y-Fitting, 5/16''

293710136

$6.45

610

Polyurethane Hose 10000Mm Long

219704410

$46.12

611

Polyurethane Hose 10000Mm Long

219704410

$46.12

612

Polyurethane Hose 10000Mm Long

219704410

$46.12

620

Check Valve

513033469

$25.32

630

Filter

709000330

$8.29

640

Check Valve

275500398

$8.57

650

Y-Fitting

293710059

$8.19

670

Hose Support Ass'y

709000359

$13.80

670a

Hex. Elastic Stop Nut M6

232561600

$0.92

700

Tie-Rap 180 mm

414115200

$0.09
