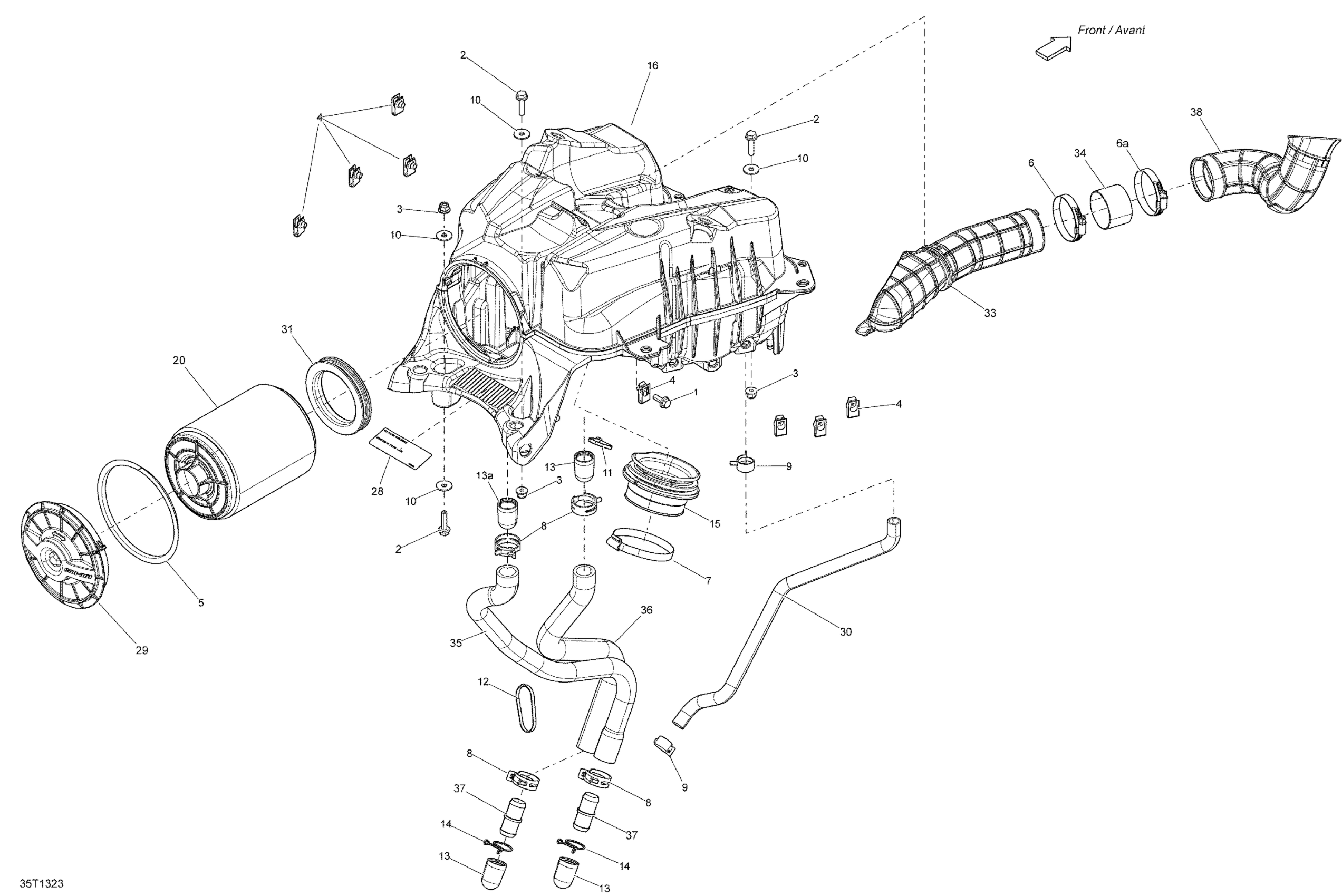

Can-Am Outlander 650EFI XMR, 2013 Air Intake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 25

207662534

$1.74

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4

Panel Nut M6 X 1.0

250100198

$1.73

5

Gasket

293300175

$13.83

6

Gear Clamp

293650230

$6.11

7

Norma Clamp

293650091

$4.60

8

Norma Spring Clamp

293650109

$4.00

9

Norma Clamp

293650110

$4.38

10

Flat Washer

250200082

$0.35

11

Tie-Rap 180 mm

414115200

$0.09

13

Drain Tube

707800080

$7.37

14

Retainer Clip

707800278

$12.91

15

Intake Adaptor

707800333

$18.43

16

Intake Silencer

707800531

Unavailable

20

Air Filter

707800371

$37.66

28

Air Filter Maintenance Decal

707800373

Unavailable

29

Intake Silencer Cap Ass'y

715002174

$15.22

30

Vent Hose

707800453

$27.66

31

Air Filter Adaptor

707800470

$18.43

33

Air Intake Hose

707800501

$55.35

34

Ring

707800504

$50.74

35

Formed Hose

707800510

$36.89

36

Formed Hose

707800511

$36.89

37

Straight Fitting

270001073

$9.00

38

Air Intake Front

707800528

$36.89

13a

Drain Tube

707800404

$2.75

6a

Norma Clamp

293650077

$6.11
