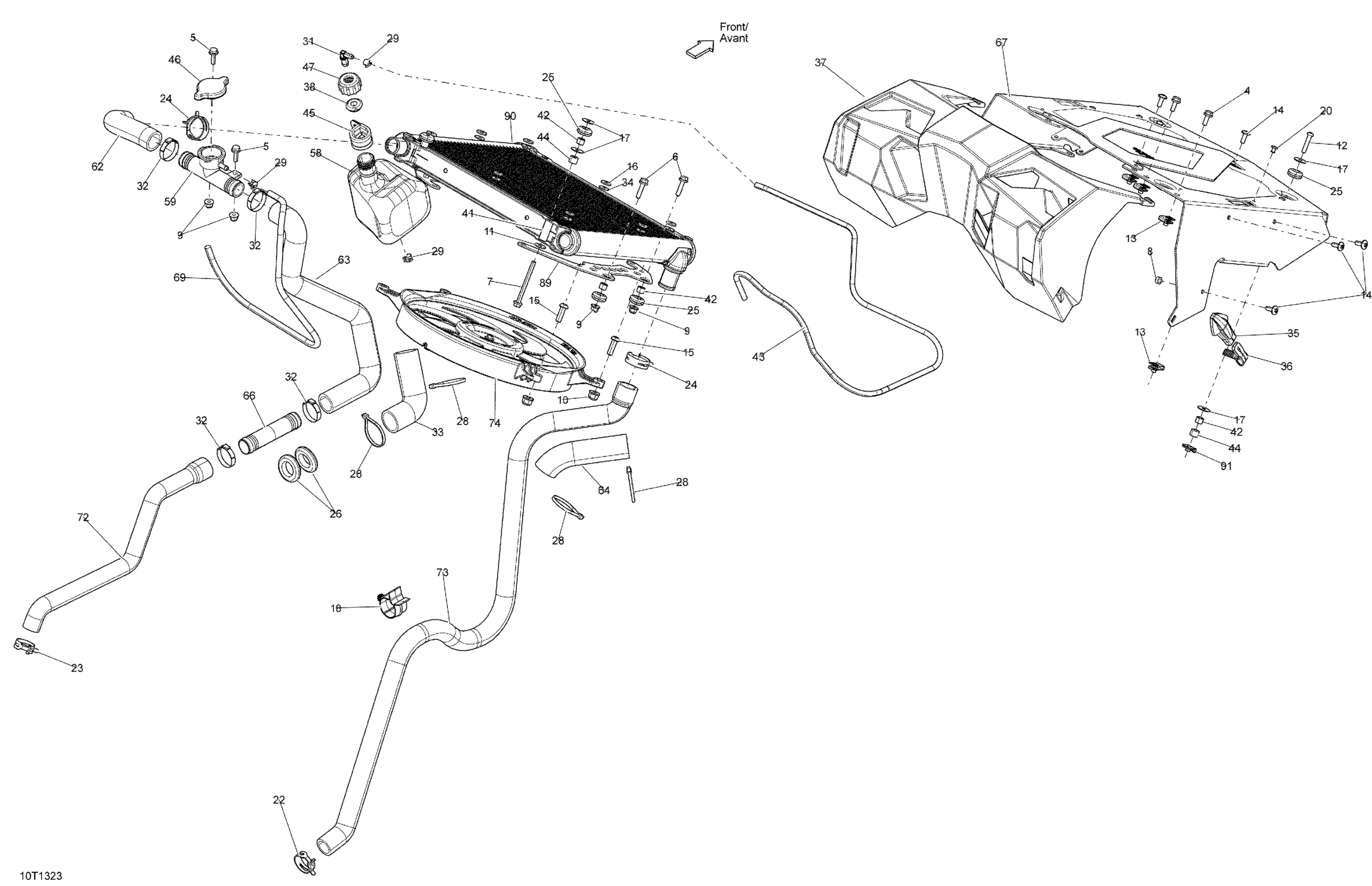

Can-Am Outlander 650EFI XMR, 2013 Cooling System Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

5

Hex. Flange Screw M6 X 20

207662034

$1.74

6

Hex. Flange Screw M6 X 25

207662544

$0.53

7

Hex. Flange Screw M6 X 70

207667044

$0.70

8

Elastic Stop Nut M6

232561414

$1.55

9

Flange Elastic Nut M6

233261434

$3.61

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Flat Washer M6, Stainless

234062600

$0.64

12

Torx Screw M6 X 30

235563054

$3.61

13

Panel Nut M6 X 1.0

250100198

$1.73

14

Torx Screw M6 X 16

250000223

$1.74

15

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

16

Rubber Washer 5 mm

250200024

$1.77

17

Flat Washer

250200040

$1.82

18

Retainer

275500590

$7.18

20

Rivet 3/16"

293150102

$0.71

22

Norma Spring Clamp

293650108

$4.00

23

Norma Spring Clamp

293650109

$4.00

24

Norma Spring Clamp

293650166

$4.28

25

Grommet

293720062

$4.16

26

Grommet

293720096

$11.06

28

Tie-Rap 180 mm

414115200

$0.09

29

Spring Clamp

414554800

$0.83

31

Male Connector

414580700

$3.38

32

Gear Clamp

509000162

$7.37

33

Tubing 35 MM 1000MM Long

219704428

$8.57

34

Washer

517124300

$0.16

35

Black Latch Kit | Includes 390 to 400

860200239

$16.12

36

Panel Latch

517303981

$10.00

37

Protection Cover Kit

703100399

$87.66

38

Grommet

705003264

$3.43

41

Bushing

705202499

$6.45

42

Spacer

707000058

$12.17

43

Polyurethane Hose 10000Mm Long

219704410

$46.12

44

Bushing

708001129

$10.98

45

Hose Anchor

709200036

$10.83

46

Radiator Pressure Cap

709200207

$18.82

47

Cap

709200586

$11.06

58

Coolant Tank Ass'y

709200624

$96.89

59

Filler Neck

709200422

$17.66

62

Hose

709200891

$13.83

63

Outlet Hose

709200892

$36.89

64

Tubing 35 MM 1000MM Long

219704428

$8.57

66

Nipple Tube 1"

709200448

$23.05

67

ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f

715002316

Unavailable

69

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

72

Outlet Hose

709200484

$36.89

73

OUTLET HOSE ENGINE SIDE - Call your local BRP dealership

709200485

Unavailable

74

Fan Ass'y

709200567

$263.05

89

Aupport_Fan Ecoat

709201349

$27.66

90

Radiator

709200286

$461.51

91

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable
