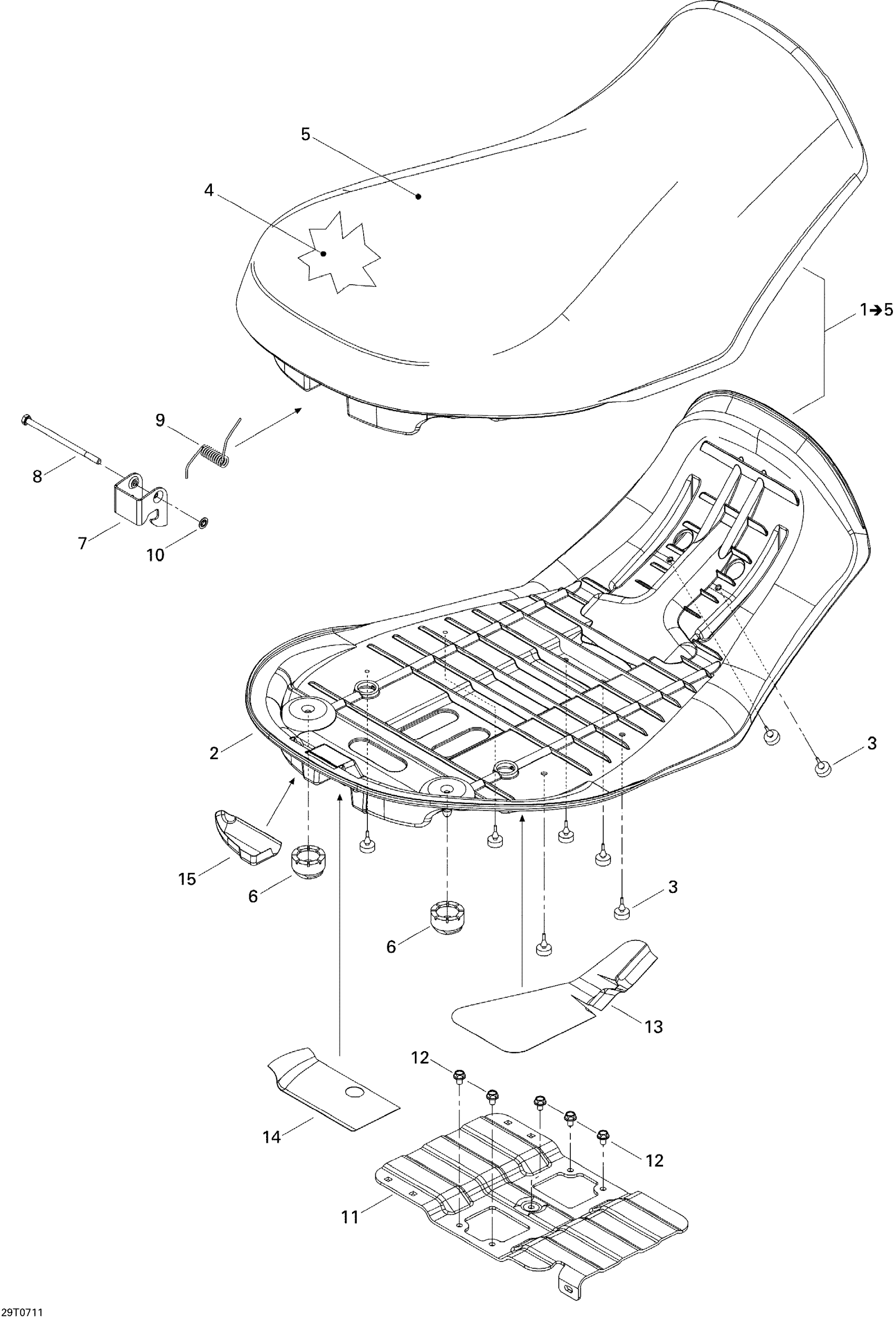

Can-Am Outlander 650 XT 4 X 4, 2007 Seat Diagram

#

Description
Price

1

Seat Assembly | Includes 1 to 6

708001649

$489.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.15

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000538

$82.81

6

Bumper Rubber

708000760

$8.84

7

Latch, Black

708000144

$10.76

8

Hex. Screw M6 X 110

230061044

$1.43

9

Spring

708000369

$8.34

10

Push Nut

732610072

$1.97

11

Seat Reinforcement

708000629

$30.57

12

Hex. Flange Screw M6 X 12

210261250

$1.79

13

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable
