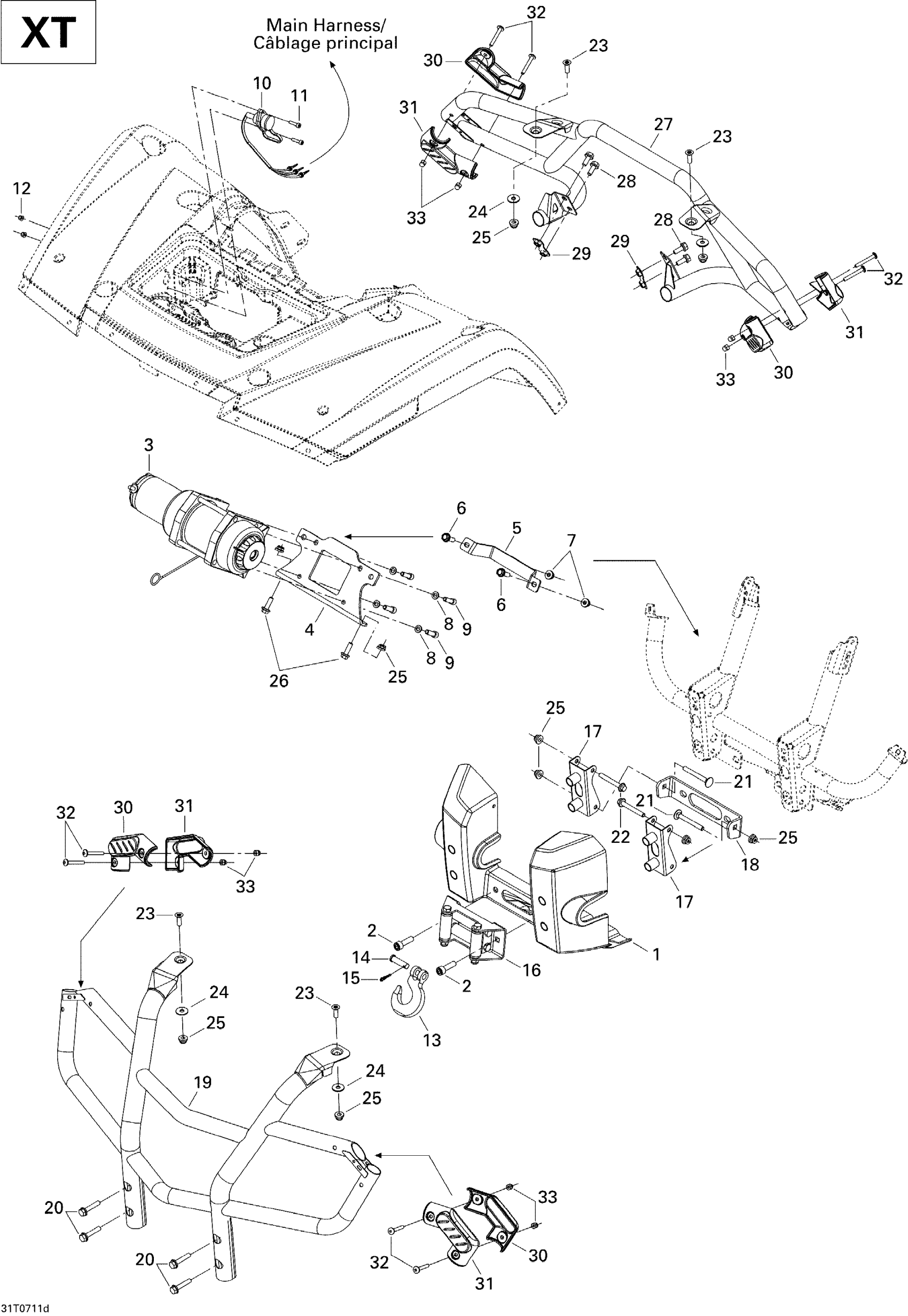

Can-Am Outlander 650 XT 4 X 4, 2007 Body And Accessories 4 Diagram

#

Description
Price

1

GUARD PLATE - Call your local BRP dealership

705003496

$34.58

2

Socket Screw M10 X 35

205003544

$1.39

3

WINCH - Call your local BRP dealership

705002327

Unavailable

4

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

$41.51

5

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

$12.20

6

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Lock Washer 8 mm

234181401

$0.89

9

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

$2.39

10

Winch Connector

710001023

$50.74

11

Socket Head Screw M5 X 25

205052588

$1.56

12

Hex. Flange Elastic Nut M5

233251414

$1.66

13

Winch Hook Kit

705014949

$27.66

14

Clevis Pin

250400021

$11.83

15

Cotter Pin

250400022

$8.66

16

Fairlead_Roller Kit

715007699

$78.43

17

BUMBER ANCHORING - Call your local BRP dealership

705003006

$13.83

18

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

19

FRONT BUMPER - Call your local BRP dealership | XT

705001964

Unavailable

20

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

21

Carriage Bolt M8 X 70

207787044

$1.11

22

Hex. Flange Screw M8 x 60

207686044

$2.56

23

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

24

Flat Washer 8 mm

234082410

$1.11

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

Hex. Flange Screw M8 X 25

207682544

$0.90

27

REAR BUMPER - Call your local BRP dealership | XT

705001973

Unavailable

28

Hex Screw Washer Head M8 X 20

207582054

$2.61

29

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

30

MALE CAP - Call your local BRP dealership

705001042

$9.20

31

FEMALE CAP - Call your local BRP dealership

705001043

$9.20

32

Torx Screw M6 X 45

250000215

$1.56

33

Domed Nut M6

232361493

$1.77
