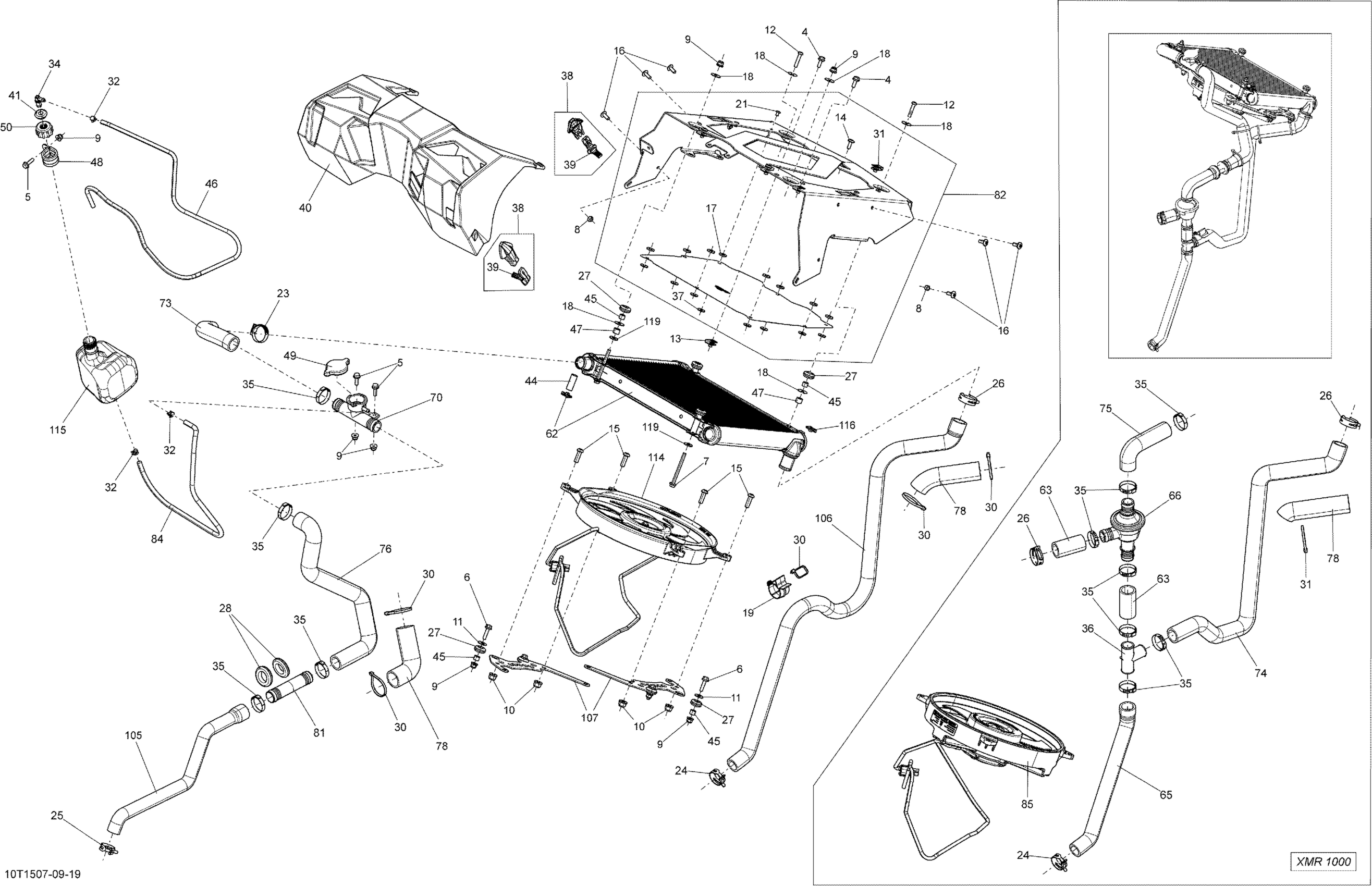

Can-Am Outlander 650 EFI Xmr, 2015 Cooling System _10T1507 Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

5

Hex. Flange Screw M6 X 20

207662034

$2.00

6

Hex. Flange Screw M6 X 25

207662544

$0.61

7

Hex. Flange Screw M6 X 70

207667044

$0.81

8

Elastic Stop Nut M6

232561434

$1.78

9

Flange Elastic Nut M6

233261434

$4.15

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Flat Washer M6, Stainless

234062600

$0.73

12

Torx Screw M6 X 30

235563054

$4.15

13

Panel Nut M6 X 1.0

250100198

$1.99

14

Torx Head Screw M6 X 16

250000717

$2.00

15

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

16

Torx Head Screw M6 X 16

250000717

$2.00

17

Rubber Washer 5 mm

250200024

$2.03

18

Flat Washer

250200040

$1.76

19

Retainer

275500590

$8.24

21

Rivet 3/16"

293150102

$0.69

23

Norma Gear Clamp

293650098

$4.15

24

Norma Spring Clamp

293650108

$3.88

25

Norma Spring Clamp

293650109

$3.88

26

Norma Spring Clamp

293650166

$4.15

27

Grommet

293720062

$4.78

28

Grommet

293720096

$10.33

30

Tie-Rap 180 mm

414115200

$0.10

31

Panel Nut M6 X 1.0

250100198

$1.99

32

Spring Clamp

414554800

$0.81

34

Male Connector

414580700

$3.88

35

Gear Clamp

509000162

$4.90

36

Not Available As Spare Parts

XXX

Unavailable

37

Washer

517124300

$0.18

38

Black Latch Kit | Includes 390 to 400

860200239

$15.64

39

Panel Latch

517303981

$9.49

40

Protection Cover Kit

703100399

$82.06

41

Grommet

705003264

$3.94

44

Bushing

705202499

$6.16

45

Spacer

707000058

$11.81

46

Polyurethane Hose 10000Mm Long

219704410

$52.96

47

Bushing

708001129

$9.91

48

Hose Anchor

709200036

$10.51

49

Radiator Pressure Cap

709200207

$21.61

50

Cap

709200586

$10.12

62

Radiator

709200286

$444.00

63

Not Available As Spare Parts

XXX

Unavailable

65

Not Available As Spare Parts

XXX

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

70

Filler Neck

709200422

$17.13

73

Hose

709200891

$13.39

74

Not Available As Spare Parts

XXX

Unavailable

75

Not Available As Spare Parts

XXX

Unavailable

76

Outlet Hose

709200892

$32.81

78

Tubing 35 MM 1000MM Long

219704428

$9.84

81

Nipple Tube 1"

709200448

$19.37

82

ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f

715002316

Unavailable

84

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

85

Not Available As Spare Parts

XXX

Unavailable

105

Outlet Hose

709200484

$32.81

106

OUTLET HOSE ENGINE SIDE - Call your local BRP dealership

709200485

Unavailable

107

Aupport_Fan Ecoat

709201349

$25.34

114

Fan Ass'y

709200567

$253.70

115

Coolant Tank Ass'y

709200624

$91.76

116

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

119

Flat Washer M6, Stainless

234062600

$0.73
