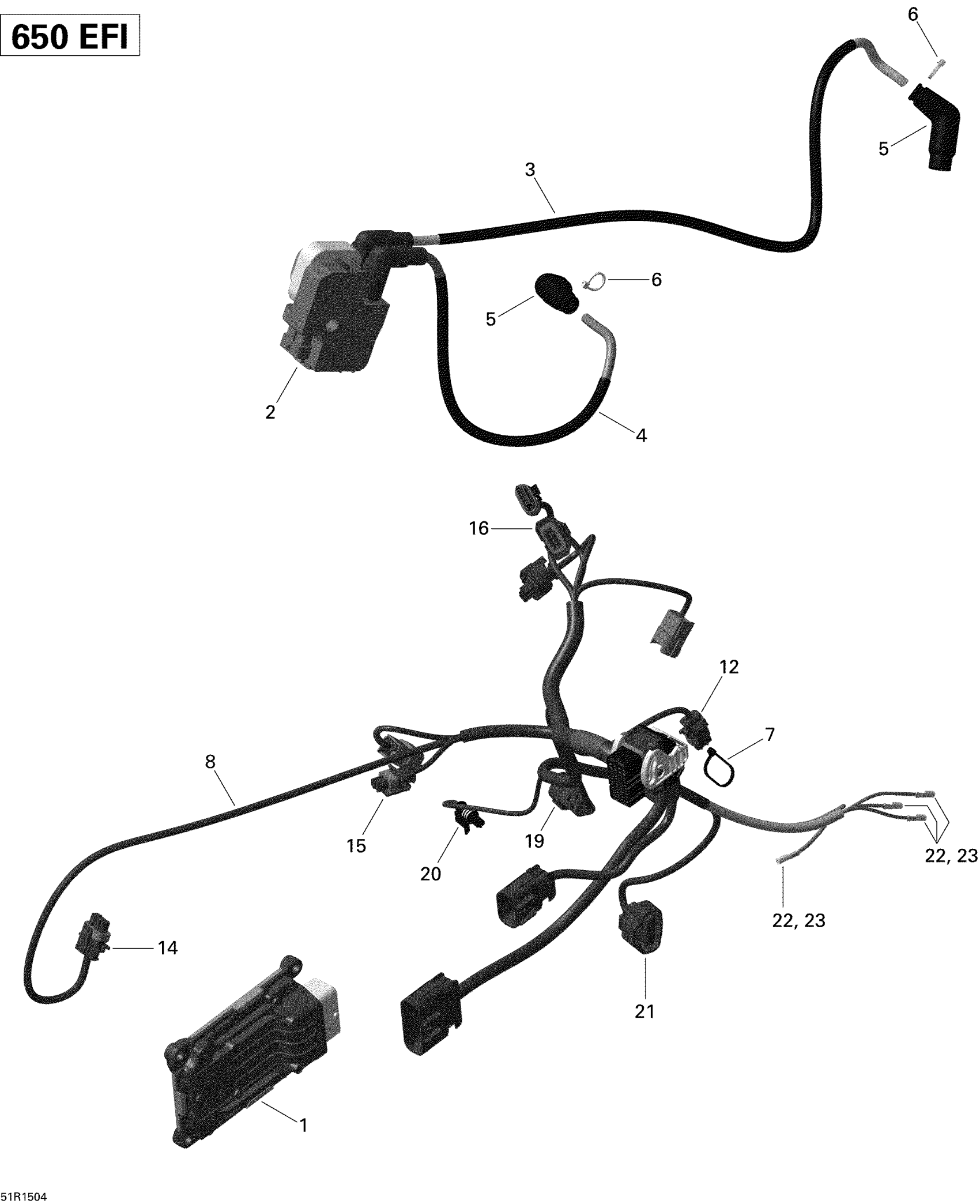

Can-Am Outlander 650 EFI, 2015 Engine Harness And Electronic Module Outlander_51R1504 Diagram

#

Description
Price

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Europe

420266857

Unavailable

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Europe

420266857

Unavailable

1

ECM, Engine Control Module | Package-STD North America

420264785

$1,274.99

1

ECM, Engine Control Module | Package-STD North America

420264785

$1,274.99

1

ECM, Engine Control Module | Package-STD North America

420264785

$1,274.99

1

ECM, Engine Control Module | Package-STD North America

420264785

$1,274.99

1

ECM, Engine Control Module | Package-STD North America

420264785

$1,274.99

2

Ignition Coil

278001546

$129.32

3

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

4

Spark Plug Cable, 790 mm, Rear

420665333

$54.58

5

Spark Plug Connector

420265248

$31.51

6

Tie Rap

420866710

$4.36

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Engine Wiring Harness

420666571

$415.35

12

Male Housing, 2 Circuits

278001005

$15.57

14

Male Housing, 3 Circuits

278000997

$15.57

15

Male Housing, 2 Circuits

278001005

$15.57

16

Housing Connector, 3 Circuits

278001829

$17.52

19

Male Housing

278002378

$10.91

20

Male Housing, 1 Circuit

278001012

$12.65

21

Male Housing, 4 Circuits

710000329

$14.75

22

Female Terminal | DS 650 X

278001009

$2.55

23

Insulated Sheath

278001007

$3.22
