Description

Price

1

Hex. Flange Castellated Nut M18

232291413

$2.82

2

Hex. Flange Elastic Nut M10

233201436

$1.74

3

Hex Flange Screw M12 X 16

250001039

$1.74

4

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

5

Hex. Flange Screw M10 X 135

250001041

$4.46

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

8

Black, Wheel Nut M10 X 1.25

250100184

$2.48

10

Conical Spring Washer M18

250200171

$5.28

11

Flat Washer M10 | 4X4

250200014

$1.17

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

13

Cotter Pin

250400036

$1.74

14

Valve Cap

293000110

$1.18

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.98

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

20

Wear Ring | 4X4

705400036

$25.35

21

Wheel Cap

705400928

$11.06

23

Rim Valve With Cap

705400193

$6.69

28

Ball Bearing

705502055

$30.74

29

Seal

705502064

$8.31

30

O-Ring

705502065

$5.98

31

Fill Level Plug | 4X4

705500504

$7.61

32

Copper Washer | 4X4

705500506

$0.36

33

Ball Bearing

705502737

$46.12

34

Tire | STD

705501767

$172.28

34

Rear Tire | STD EURO

705501768

Unavailable

34

Tire | XT, C/U, INT

705501769

$156.89

34

Rear Tire | Traxter 5 Speed XT

705501770

$183.05

35

Screw

705502063

$3.08

36

Breather Tube

705501584

$13.86

37

Drain Plug | 4X4

705500894

$11.06

38

Nut

705502059

$32.28

39

Protector

705501123

$7.37

40

Wear Ring

705501124

$7.28

41

Pinion Gear Shim 1.67 mm

705502061

$16.12

44

1/2 Oz Weight

219704465

$4.35

45

Rubber Boot

715900118

$13.83

46

Grease Fitting

715900184

$4.62

47

Fixe Yoke

715900101

$27.66

48

Ball Bearing

705502738

$56.89

49

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$295.35

51

Needle Bearing

705502058

$47.66

52

Rear Pinion Cover

705502052

$207.66

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

55

REAR COVER - Call your local BRP dealership

705502051

$155.35

68

Pinion 10 Teeth

705502053

$198.43

71

Wheel Hub Ass'y

705501716

$129.20

73

Rear Differential Ass'y

705501896

Unavailable

76

Black, Rim | STD

705501802

$109.97

76

Silver Rear Rim | STD

705501460

$139.97

76

Black, Rear Rim | XT CAMO

705501493

$139.97

76

Black, Rim | XT

705501856

$139.97

76

Black, Rim | XXC

705502244

$139.97

79

Universal Joint

715900326

$69.20

80

Oetiker Gear Clamp 36.1MM

509000045

$3.55

81

COVER - Call your local BRP dealership

715900187

$7.89

82

Not Available As Spare Parts

XXX

Unavailable

83

Gear 36 Teeth

705502682

$175.35

85

Oil Seal

705502062

$23.05

86

Orange Reinforcement Disk | Package-XTP North America

705401811

$83.15

87

Hex. Flange Screw M6 X 25

250000787

$1.83

88

CV Joint

705501776

Unavailable

90

Boot Kit

705501864

$41.51

91

Oetiker Clamp, 27.3 mm

715900242

$7.84

92

Oetiker Clamp, 82.1 mm

715900241

$7.84

94

Not Available As Spare Parts

XXX

Unavailable

95

Polyurethane Hose 10000Mm Long

219704410

$46.12

96

Tie Wrap 368 mm

293750008

$0.85

103

Differential Shim 0.02 mm

705502060

$13.83

143

Plug Drain

705501724

$5.98

85b

Oil Seal

705501556

$17.66

87b

Insert | XXC

293450317

$6.69

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$5.38

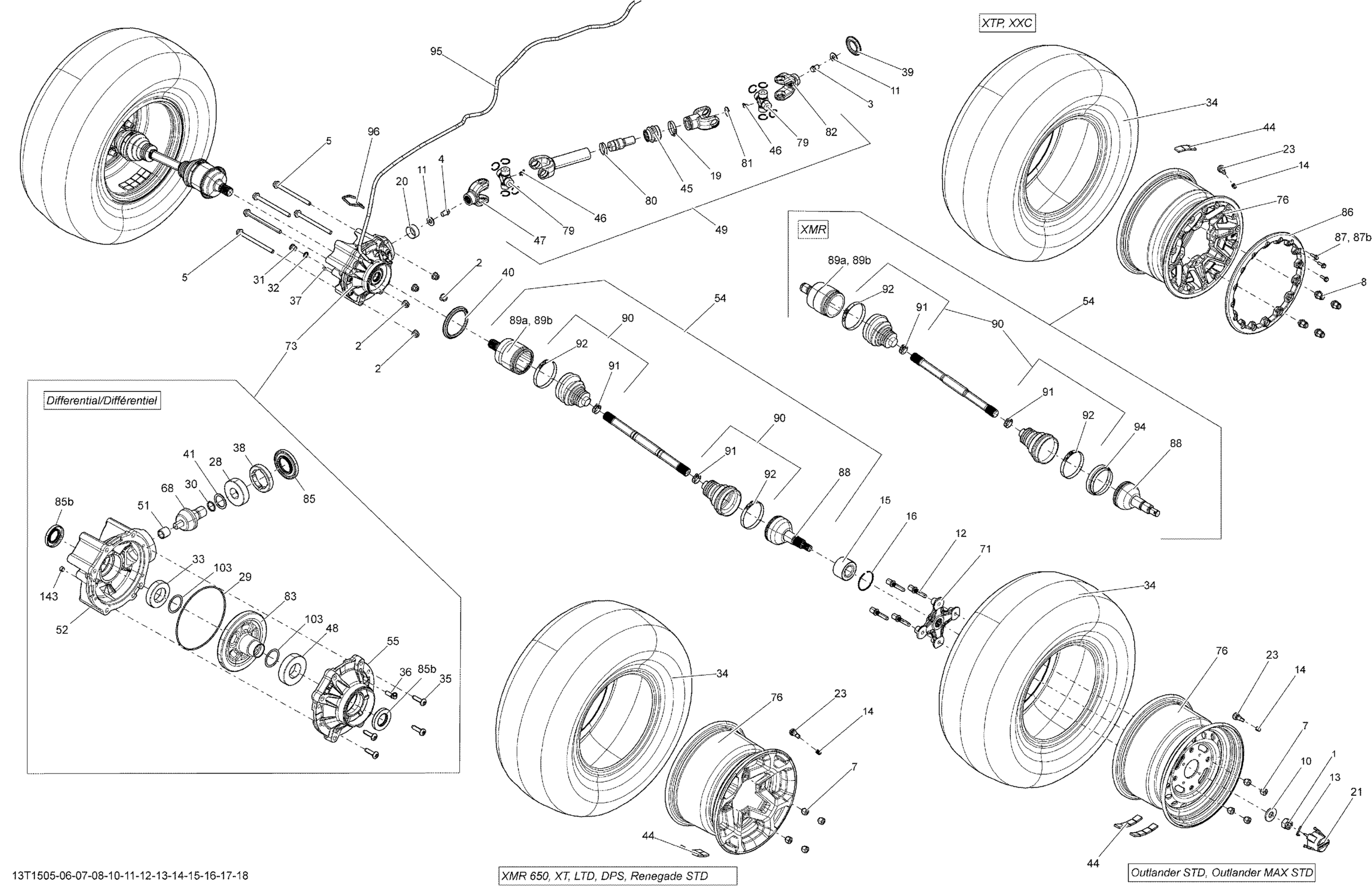

Can-Am Outlander 650 EFI, 2015 Drive System, Rear _13T1506 Diagram
