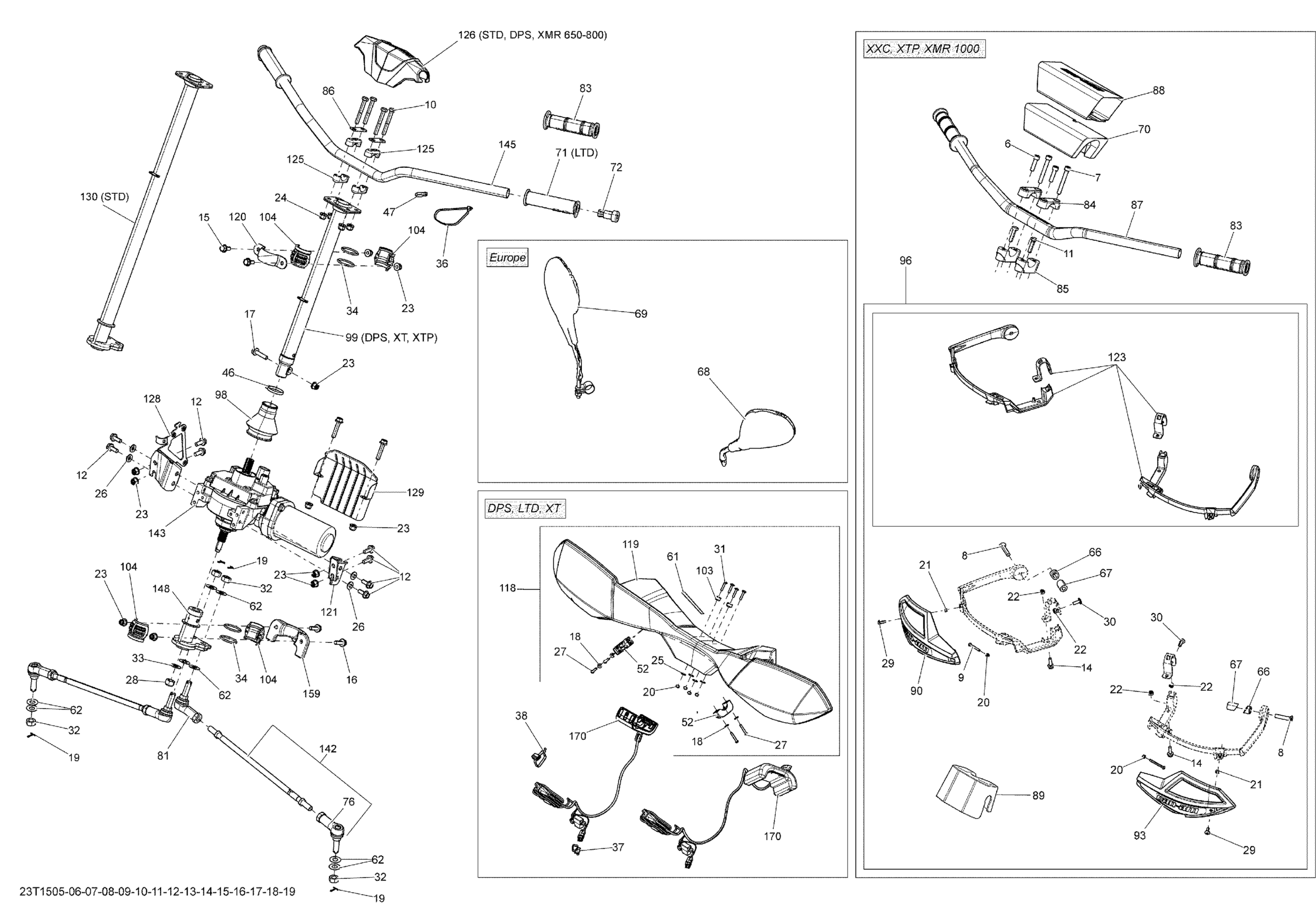

Can-Am Outlander 650 EFI, 2015 Steering _23T1506 Diagram

#

Description
Price

6

Socket Screw M8 X 30

205083060

$3.27

7

Socket Head Screw M8 X 60

205086060

$3.88

8

Socket Head Screw | X

205384034

$5.96

9

Socket Head Screw M4 X 40 | X

205444086

$1.63

10

Hex. Screw M8 X 60

207086046

$2.64

11

Hex. Screw M8 X 30

207183060

$1.49

12

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

14

Hex. Flange Screw M6 X 20

207662044

$1.91

15

Hex. Flange Screw M8 X 20

207682044

$1.06

16

Hex. Flange Screw M8 X 25

207682534

$1.03

17

Hex. Flange Screw M8 X 35

207683544

$1.60

18

Flat Washer | XT

211200035

$0.52

19

Cotter Pin

211400013

$0.31

20

Elastic Stop Nut M4

232541414

$0.55

21

Hex. Elastic Nut M5 | X

232551600

$1.04

22

Hexagonal Nut M6

232061404

$0.31

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Hex. Elastic Flange Nut M8

233281416

$1.43

25

Not Available As Spare Parts

XXX

Unavailable

26

Conical Spring Washer M8

234281474

$1.43

27

Hex. Flange Screw K40 X 25

241142560

$2.49

28

Hex. Flange Elastic Nut M12

250000047

$1.79

29

Torx Screw M5 X 14

250000742

$1.37

30

Torx Screw M6 X 16

250000223

$2.00

31

Not Available As Spare Parts

XXX

Unavailable

32

Nut M12

250100099

$1.88

33

Hardened Washer

706200281

$2.69

34

O-Ring

293300068

$6.07

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

46

Tie-Rap 180 mm

414115200

$0.10

47

Not Available As Spare Parts

XXX

Unavailable

52

U-Clamp | XT

517303264

$11.09

61

DPS Decal

704902966

$10.55

62

Hardened Washer

706200281

$2.69

66

Small Bracket | DS 650 X

709400161

$17.88

67

Large Bracket | DS 650 X

709400162

$17.13

68

LH Mirror | Europe

709400406

$33.55

69

RH Mirror | Europe

709400407

$44.75

70

Foam

709400422

$15.64

71

Not Available As Spare Parts

XXX

Unavailable

72

End Piece

709400449

$7.57

72

End Piece

709400449

$7.57

72

End Piece

709400449

$7.57

76

LH Ball Joint

709402303

$34.30

76

LH Ball Joint

709402303

$34.30

81

RH Ball Joint

709402302

$34.30

83

Handle Grip

709400493

$13.82

84

Support

709400496

$23.10

85

Lower Mounting Clamp

709402750

$23.10

86

Stiffner

709400509

$4.30

87

Aluminum Handle Bar

709400513

$58.93

88

Cover B-337 | Package-XTP

709402415

$55.19

89

Steering Cover | STD

709400278

$11.51

90

ORANGE RH DEFLECTOR - Call your local BRP dealership | Package-XTP

709401620

Unavailable

93

ORANGE LH DEFLECTOR - Call your local BRP dealership | Package-XTP

709401621

Unavailable

96

Not Available As Spare Part - Friction Washer

Unavailable

98

Bellows

709400674

$15.64

99

Kit Tube-Main.

703501137

$162.66

103

Not Available As Spare Parts

XXX

Unavailable

104

Spherical Half Bushing

709400783

$5.96

118

Handle Guard Ass'y, XT

703100352

$91.01

119

Handle Bar Protector | XT

709400822

$81.31

120

Upper Column Attachment

709400827

$0.97

121

Power Steering Module Bracket

709400848

$14.76

123

Air Deflector Support Kit | X

715001378

$131.57

125

Steering Support

709400919

$20.12

126

Cover

709400939

$22.36

128

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

129

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

130

Main Tube

709401008

$157.43

142

Tie Rod Ass`y | Includes 15 to 17

703501038

$89.52

143

Power Steering

709401608

$981.01

145

Black, Handle Bar

709401240

$52.96

148

Pitman Kit | Includes 3 to 5

703500785

$142.51

159

Column Attachment

709401428

$35.04

170

Not Available As Spare Parts

XXX

Unavailable
