Partiron

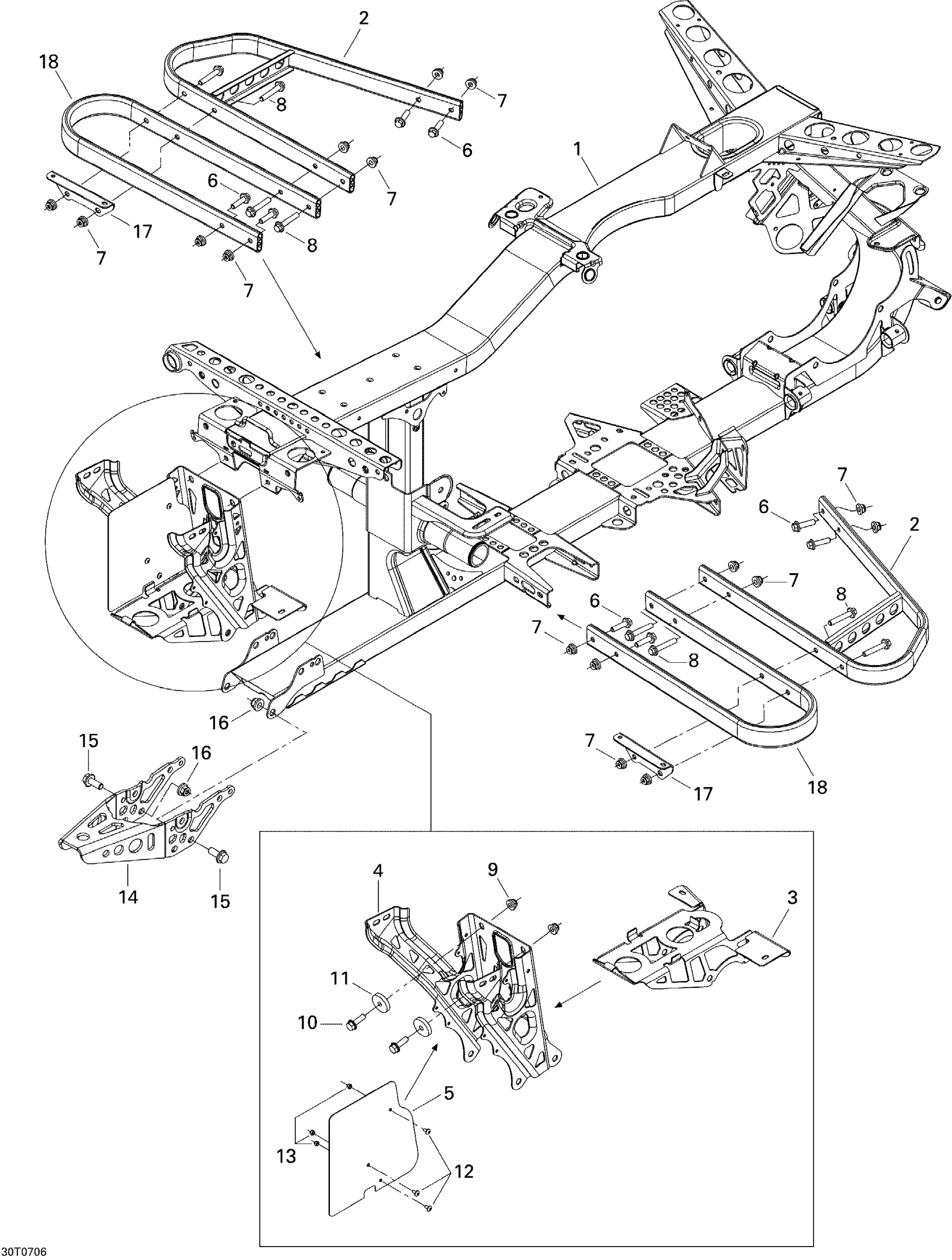

Can-Am Outlander 500 XT 4 X 4, 2007 Frame Diagram

#

Description
Price

1

Frame, Black

705200823

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

$69.99

3

Battery Support Base

705201942

$34.99

4

Rear Support, Black

705203842

$42.99

5

Heat Shield

705202394

Unavailable

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Flange Screw M8 X 45

207684544

$3.68

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

11

SPACER - Call your local BRP dealership

705202084

Unavailable

12

Torx Screw M4 X 8

250000127

$1.09

13

Elastic Stop Nut M4

232541484

$0.61

14

TRAILER HOOK, BLACK - Call your local BRP dealership

705201112

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.33

16

Hex. Flange Elastic Nut M10

233201436

$1.74

17

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

18

REAR FOOTREST - Call your local BRP dealership

705201993

$39.99
