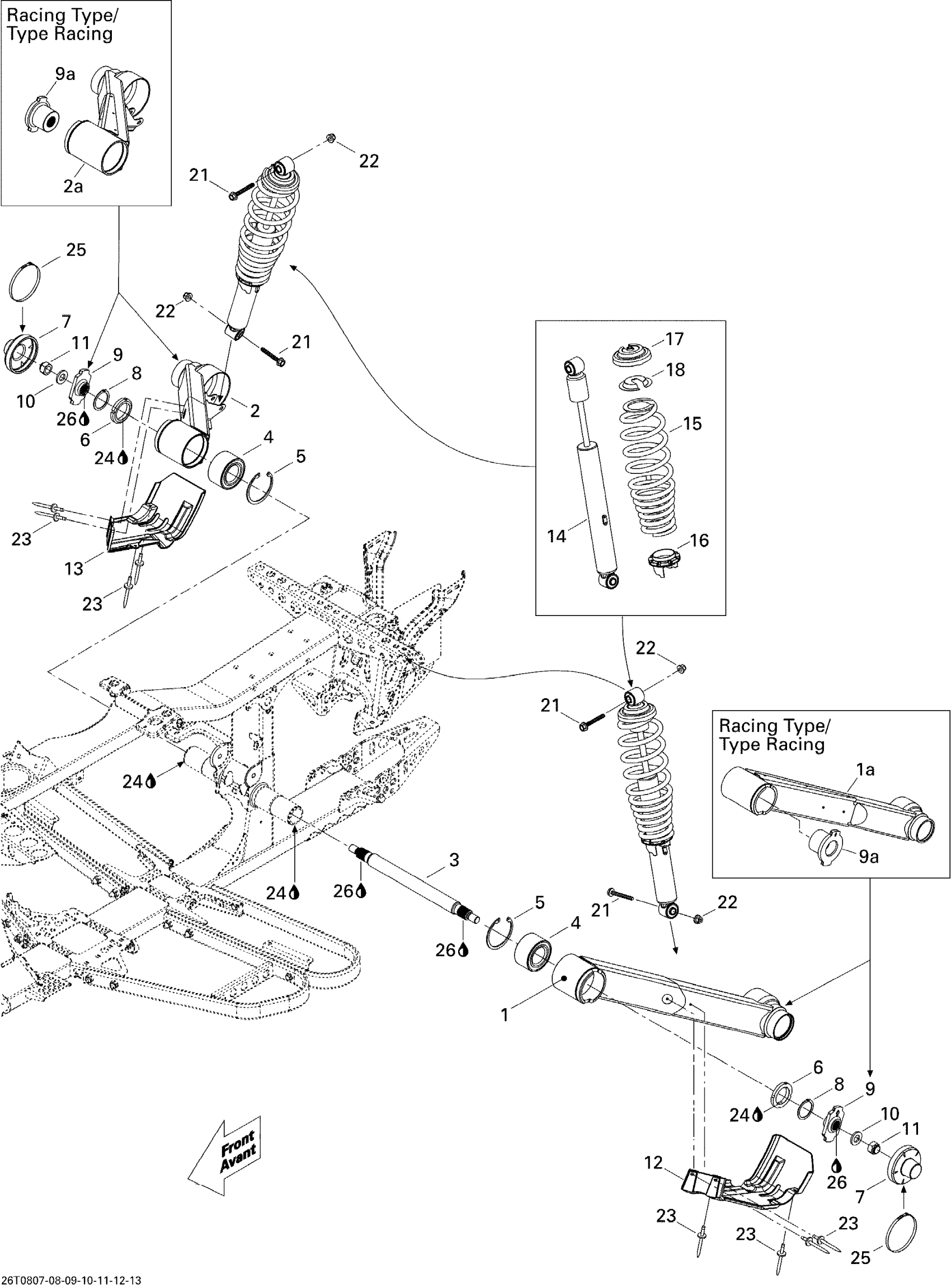

Can-Am Outlander 500 XT, 2008 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001185

Unavailable

1a

LH Swing Arm, "Racing" Type | Must Be Used With Item 9a

706000584

Unavailable

2

Rh Swing Arm

706003425

$276.09

2a

RH Swing Arm, "Racing" Type | Must Be Used With Item 9a

706000586

Unavailable

3

Sway Bar

706001078

$88.78

4

Ball Bearing

293350037

$124.60

5

Circlip

293370041

$9.26

6

Nut

706000221

$19.37

7

Cover

706000749

$14.76

8

Circlip 45 mm

293370027

$4.09

9

Lever

706000548

$34.30

9a

Lever

706000554

$64.90

10

Washer

250200045

$7.21

11

Elastic Stop Nut M18

232591414

$4.00

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

Shock

706000553

Unavailable

15

Black Rear Spring

706000549

Unavailable

16

Adjuster Ring

706002356

$16.39

17

Spring Stopper

706200881

$11.82

18

Cap

706200785

$4.28

21

Hex. Flange Screw M10 X 55

207605544

$3.19

22

Hex. Flange Elastic Nut M10

233201414

$1.45

23

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

24

Loctite 271, 10 ml

293800005

$23.85

25

Oetiker Clamp

293650162

$8.06

26

Loctite 271, 10 ml

293800005

$23.85
