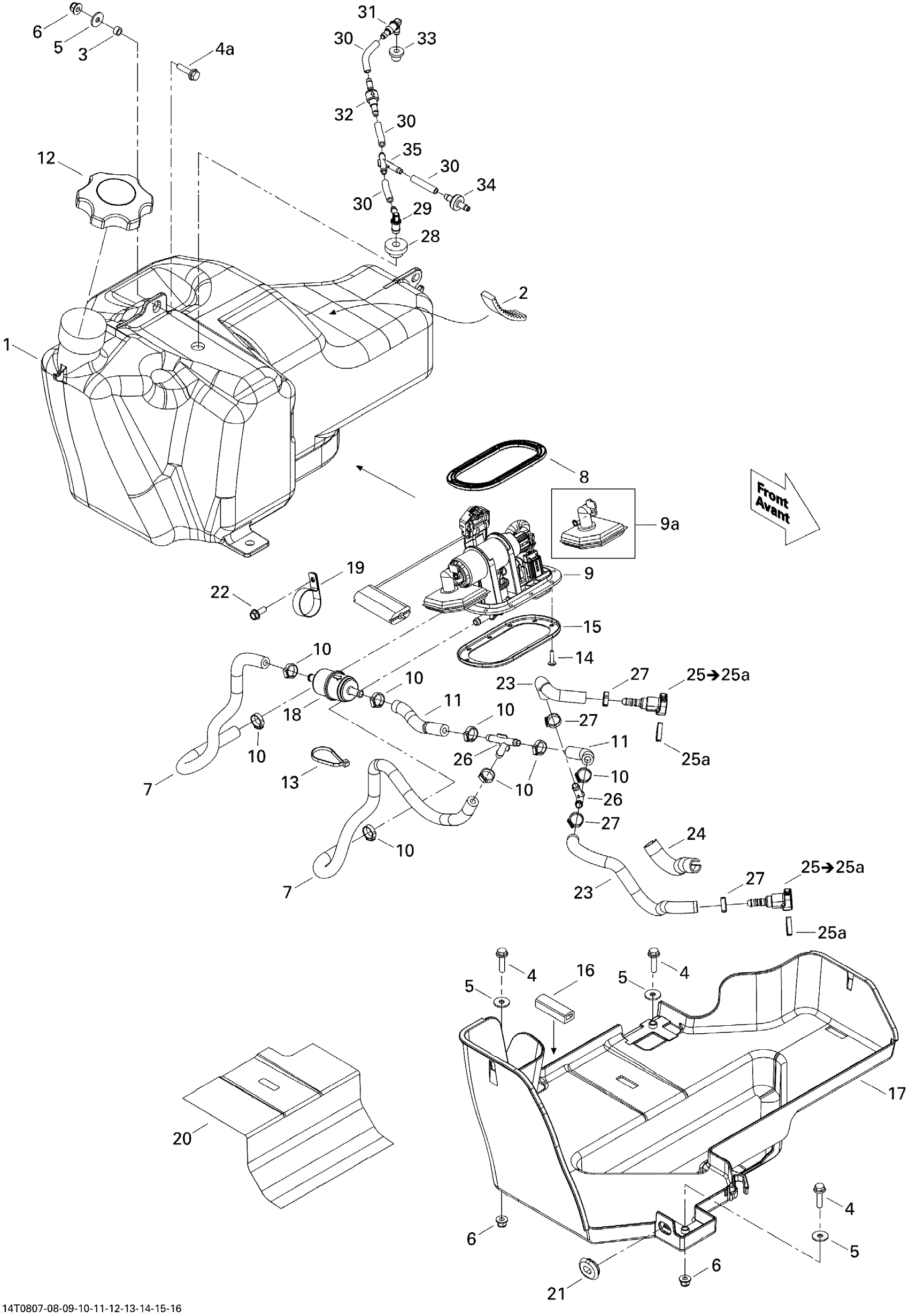

Can-Am Outlander 500 XT, 2008 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000176

Unavailable

1

Fuel Tank

709000084

Unavailable

2

Vinyl Strip

709000153

Unavailable

3

Bushing | DS 650 X

293900104

$5.26

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

4a

Hex. Flange Screw M6 X 25

207662544

$0.53

5

Flat Washer

250200082

$0.35

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Was 709000163 Fuel Line

219704440

$108.43

8

Joint Etanche *Gasket

709000540

$36.89

9

Fuel Pump

703500771

Unavailable

9a

Not Available As Spare Part - Friction Washer

Unavailable

10

Oetiker Clamp

293650046

$2.33

11

Was 709000163 Fuel Line

219704440

$108.43

12

Fuel Tank Cap

513033025

$19.47

13

Tie-Rap 180 mm

414115200

$0.09

14

Torx Screw M4 X 16

250000750

$1.37

15

Pump Ring

709000170

$15.35

16

Was 293200017 Neoprene Seal

219704365

$118.27

17

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

18

Fuel Filter

513034047

$23.05

19

Open Clamp

513033047

$4.88

20

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

21

Oval Washer

705005156

$4.85

22

Hex. Flange Screw M6 X 12

210261250

$1.56

23

Was 709000163 Fuel Line

219704440

$108.43

24

Was 409901800 Tubing (13 mm)

219704400

$9.40

25

Female Quick Fitting Ass'y

709000125

$11.12

25a

Locking Clip

513033135

$5.11

26

Y-Fitting, 5/16''

293710136

$6.45

27

Oetiker Clamp

293650046

$2.33

28

Grommet

293830136

$8.29

29

Male Connector

414580700

$3.38

30

Polyurethane Hose 10000Mm Long

219704410

$46.12

31

Elbow Male Connector

414580600

$3.50

32

Check Valve

513033469

$25.32

33

Grommet

293720029

$1.13

34

Check Valve

275500398

$8.57

35

Y-Fitting

293710059

$8.19
