Description

Price

1

Seat Assembly | Includes 1 to 6

708001649

$489.99

2

Rubber Stopper

708000759

$4.29

3

Seat Cover

708000538

$88.99

4

Bumper Rubber

708000760

$10.99

5

Latch, Black

708000144

$12.49

6

Hex. Screw M6 X 110

230061034

$2.19

7

Spring

708000369

$9.39

8

Push Nut

732610072

$2.29

9

Seat Reinforcement

708000629

$33.99

10

Hex. Flange Screw M6 X 12

210261250

$1.99

11

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

12

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

13

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

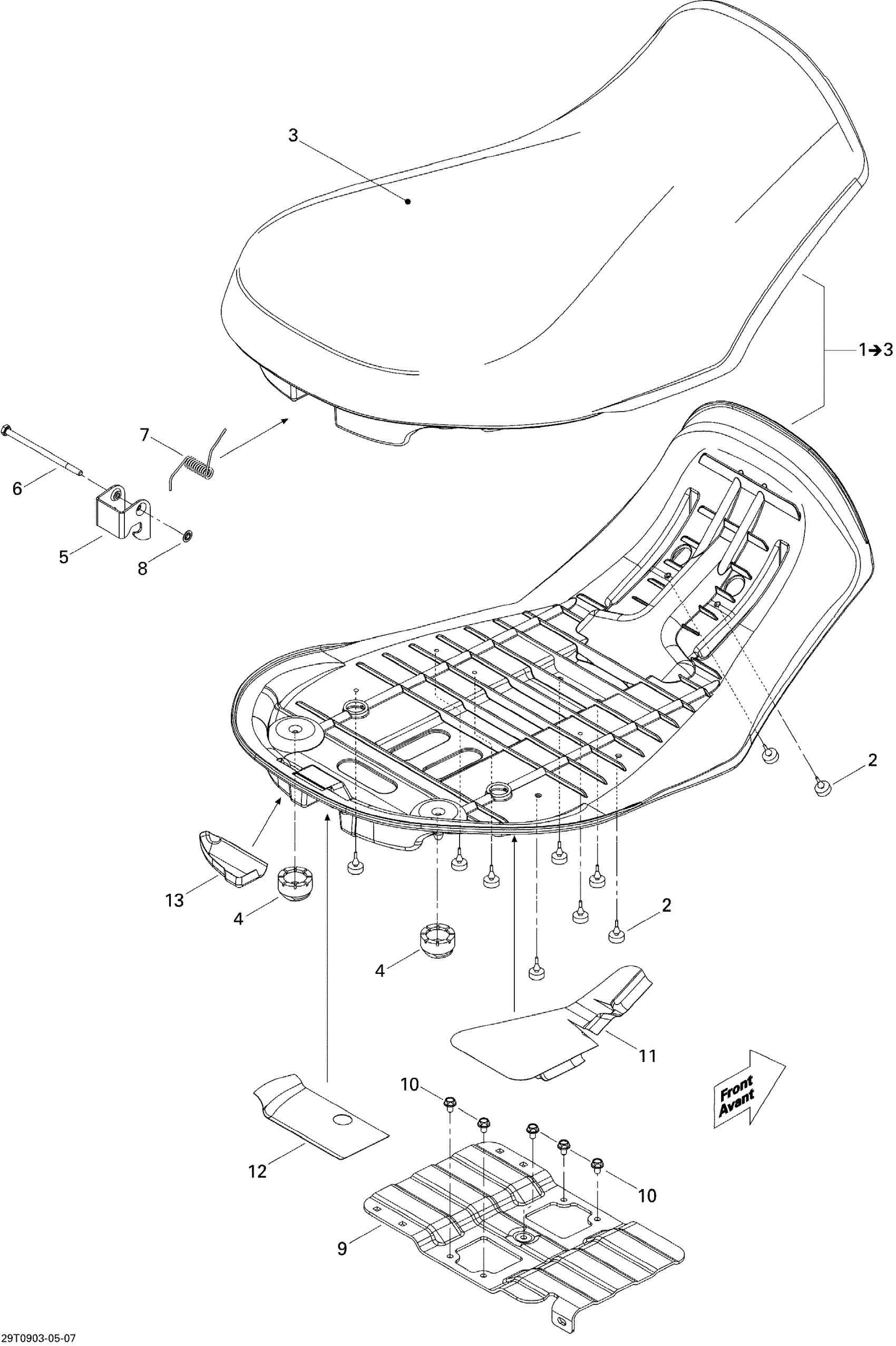

Can-Am Outlander 500 EFI, 2009 Seat Diagram

Seat Assembly | Includes 1 to 6

Rubber Stopper

Seat Cover

Bumper Rubber

Latch, Black

Hex. Screw M6 X 110

Spring

Push Nut

Seat Reinforcement

Hex. Flange Screw M6 X 12

REFLECTING SHEET - Call your local BRP dealership

REFLECTING SHEET - Call your local BRP dealership

HEAT SHIELD - Call your local BRP dealership
