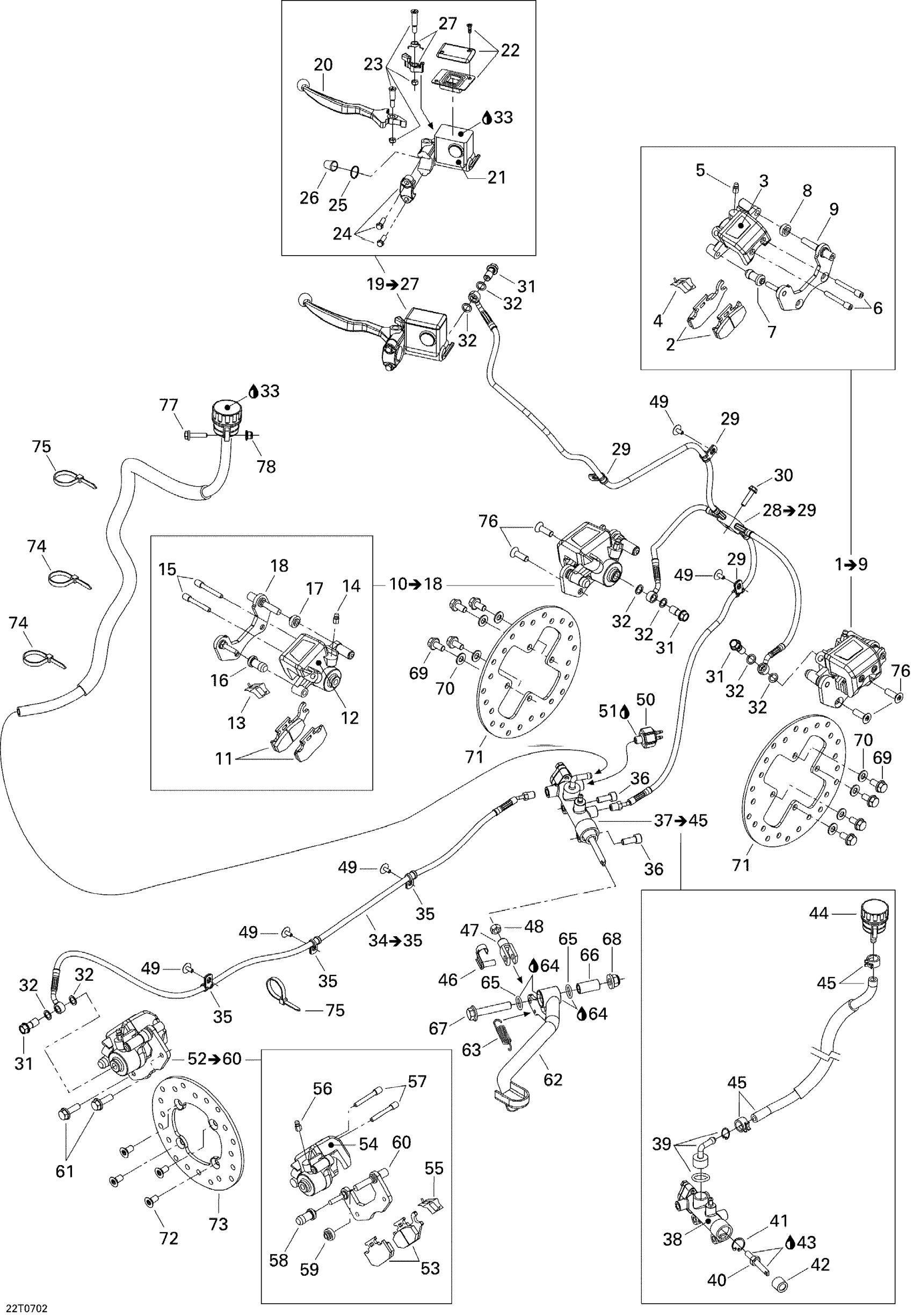

Can-Am Outlander 400 XT 4 X 4, 2007 Hydraulic Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 9

705600575

Unavailable

2

Brake Pad Kit

705600349

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$210.74

11

Brake Pad Kit

705600350

$49.97

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

LH Caliper Support

705600297

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$212.28

20

Lever Arm

705600243

$50.74

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$23.05

23

Brake Lever Bolt Kit

705600246

$14.75

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

27

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

Front Hose | Includes 28 to 29

705600925

$166.12

29

Clamp

293650256

$4.36

30

Hexagonal Head Screw

210262050

$1.74

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

32

Copper Washer

705601628

$4.34

33

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

33

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

34

REAR HOSE - Call your local BRP dealership | Includes 34 to 45

705600383

Unavailable

35

Clamp

293650256

$4.36

36

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

37

Rear Master Cylinder | Includes 33 to 40

705600254

$212.28

38

Piston Set

705600255

Unavailable

39

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Circlip

705600068

Unavailable

42

Compression Boot

705600090

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

45

OIL HOUSING HOSE - Call your local BRP dealership

705600262

$57.66

46

Pin Kit

219702305

$26.62

47

Yoke

705600100

Unavailable

48

Hex. Nut M8

232081414

$0.60

49

Pop Rivet 3/16"

390406500

$0.70

50

Interrupteur *Brake Switch

710001345

Unavailable

51

Was 293800013 Loctite 56765

219704454

$65.35

52

Rear Caliper | Includes 48 to 56

705600577

$210.74

53

LH Brake Pad Kit

705600398

$49.97

54

Piston Set

705600399

Unavailable

55

Spring

705600079

$14.37

56

Bleeding Screw

705600080

$15.22

57

Pin Set (2)

705600081

$19.20

58

Compression Boot

705600082

$10.14

59

Compression Boot

705600083

$10.14

60

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

62

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

$56.89

63

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

$9.20

64

Synthetic Grease, 400 G

293550010

Unavailable

65

O-RING - Call your local BRP dealership

293300053

$5.35

66

SPACER - Call your local BRP dealership

705600283

Unavailable

67

Hex. Flange Screw M10 X 55

207605544

$2.78

68

Hex. Flange Elastic Nut M10

233201414

$1.26

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

70

Conical Spring Washer M8

234281474

$1.25

71

Disk Brake

705600603

$56.89

72

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

73

Disk Brake

705600604

$56.89

74

Tie Wrap 142 mm

293750002

$0.88

75

Tie-Rap 180 mm

414115200

$0.09

76

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

77

Hex. Flange Screw M6 X 25

207662544

$0.53

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
