Partiron

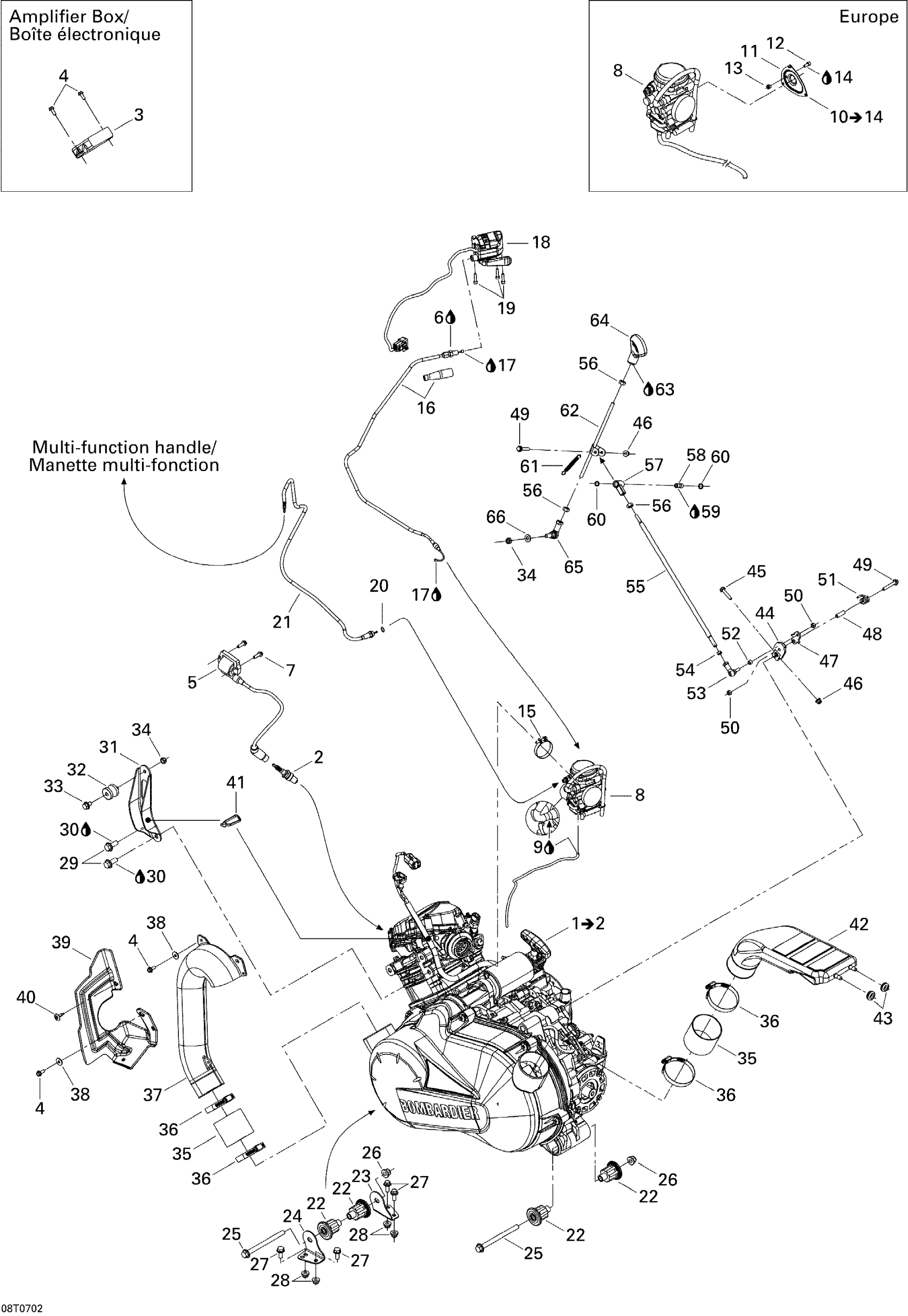

Can-Am Outlander 400 XT 4 X 4, 2007 Engine And Engine Support Diagram

#

Description
Price

1

Engine Rotax 4 Stroke | Includes 1 to 2

707000463

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$5.66

3

AMPLIFIER BOX - Call your local BRP dealership | 400HO

420664285

Unavailable

4

Hex. Flange Screw M6 X 16

210261650

$1.22

5

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

$133.05

6

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

7

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$1.64

8

Carburator CE, Mikuni BSR33-67 | 400HO (Europe)

707000402

Unavailable

8

Carburator, Mikuni BSR33-49 | 400HO

707200190

Unavailable

9

Glue Tube, Loctite 454, 20 G

413708300

$59.97

10

Calibrated Cover Ass'y | 400HO (Europe) / Includes 23 to 27

707000406

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.09

13

Elastic Stop Nut M4

232541414

$0.48

14

Sealant Loctite 648

219703000

$35.72

15

GEMI CLAMP - Call your local BRP dealership

293650164

$3.05

16

THROTTLE CABLE - Call your local BRP dealership

707000226

Unavailable

17

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

18

Throttle Handle | 4X4

707000595

$73.82

19

Socket Head Screw M5 X 25

205052588

$1.56

20

O-RING - Call your local BRP dealership

293300075

$5.35

21

CHOKE CABLE - Call your local BRP dealership

707000228

Unavailable

22

Vibration Damper

707001169

$41.51

23

ENGINE BRACKET - Call your local BRP dealership

707000802

$10.57

24

ENGINE BRACKET - Call your local BRP dealership

707000803

$8.94

25

Hex. Flange Screw M10 X 125

230602546

$6.08

26

Hex. Flange Elastic Nut M10

233201436

$1.74

27

Hex. Flange Screw M8 X 20

207682044

$0.92

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

Hex. Flange Screw M10 X 25

207602544

$1.33

30

Loctite 243, 10 ml

293800060

$20.77

31

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

$13.83

32

Rubber Isolator

707000949

$9.00

33

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

34

Hex. Elastic Stop Nut M8

232581414

$0.47

35

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

36

Norma Clamp

293650091

$4.60

37

AIR INTAKE - Call your local BRP dealership

707000436

Unavailable

38

Flat Washer

250200082

$0.35

39

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

$12.20

40

Tuflock Phillips Plastic Screw

414745900

$1.30

41

Tie-Rap 180 mm

414115200

$0.09

42

AIR OUTLET - Call your local BRP dealership

707000437

Unavailable

43

Grommet

709000582

$4.38

44

Lever

707000503

$36.89

45

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

Pivot Plate

707000507

$7.69

48

Bushing

293900079

$8.49

49

Hex. Flange Screw M6 X 40

207664044

$2.18

50

Elastic Stop Nut M6

232561414

$1.55

51

Spring

707000310

$9.37

52

Bushing | DS 650 X

293900104

$5.26

53

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

54

LH HEX. NUT M6 - Call your local BRP dealership

232066414

$1.11

55

Threaded Rod

707000567

$34.58

56

Hex. Nut M8

232081414

$0.60

57

PIVOT - Call your local BRP dealership

707000568

Unavailable

58

Bushing

293900075

$11.98

59

Synthetic Grease, 400 G

293550010

Unavailable

60

O-RING - Call your local BRP dealership

414583300

Unavailable

61

Spring

707000569

$8.45

62

Lever Arm

707000786

$36.89

63

Loctite 243, 10 ml

293800060

$20.77

64

Lever Handle

707000284

$18.43

65

RH Ball Joint

707001959

$35.35

66

Flat Washer 8 mm

234081410

$0.69
