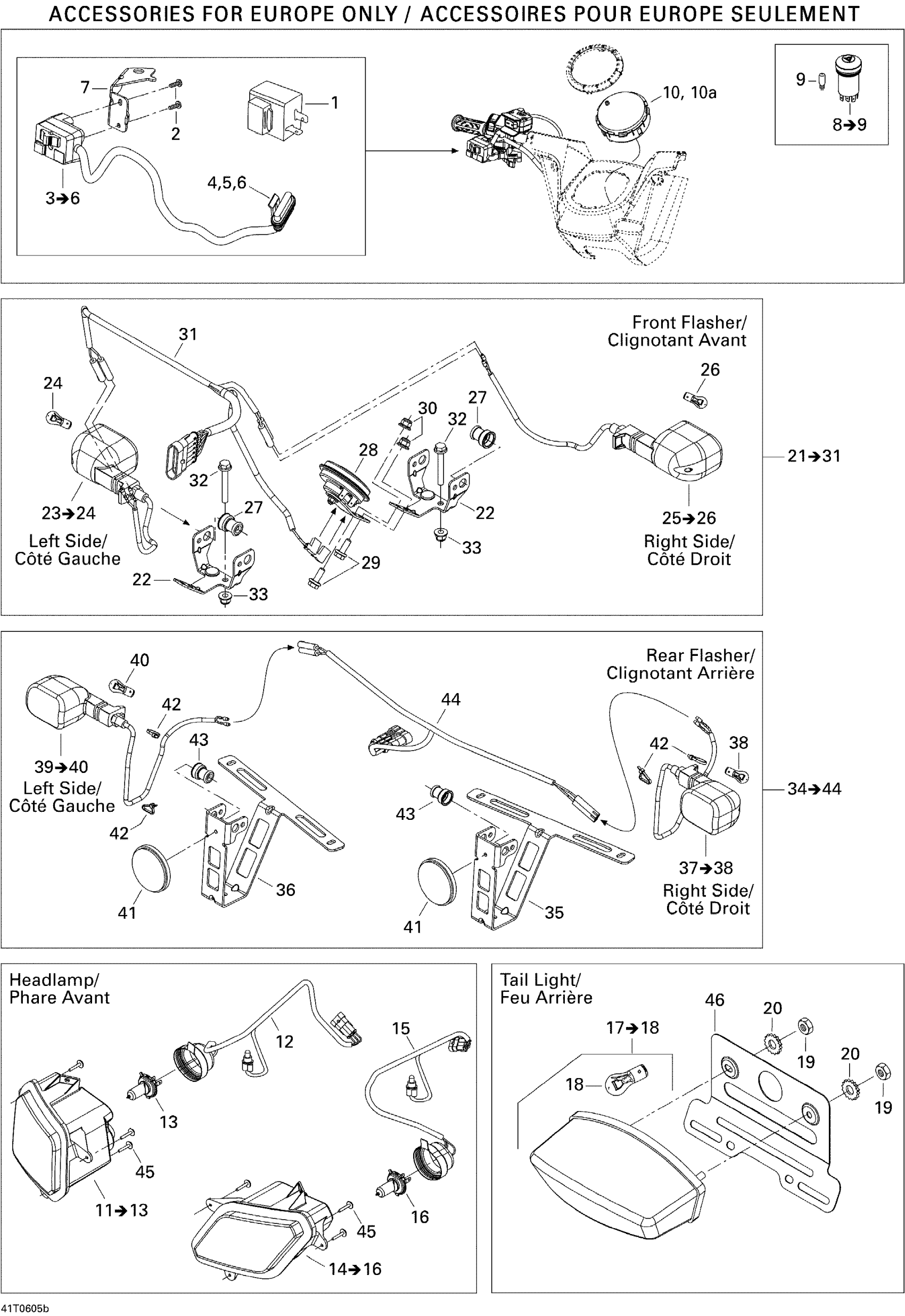

Can-Am Outlander 400 XT 4 X 4, 2006 Electrical Accessories Europe Diagram

#

Description
Price

1

FLASHER UNIT - Call your local BRP dealership | Europe Models

710000581

$36.12

2

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

250000078

$2.14

3

FLASHER SWITCH - Call your local BRP dealership | Includes 3 to 6

710000904

$69.97

4

Connector

710000780

$18.43

5

Female Terminal

278001014

$2.72

6

Wire Seal

278001013

$2.72

7

Switch Support

710000905

Unavailable

8

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

$73.05

9

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

10

Calibrated Speedometer | Europe

710000860

Unavailable

11

RH Headlamp Ass'y | Includes 11 to 13

710000861

$124.58

12

Headlamp Harness

710000923

$46.12

13

Bulb, 12V 35/35W

710000871

$32.28

14

LH Headlamp Ass'y | Includes 14 to 16

710000862

$124.58

15

Headlamp Harness

710000923

$46.12

16

Bulb, 12V 35/35W

710000871

$32.28

17

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$55.35

18

Bulb

520000758

$7.49

19

Hex. Nut M6

232061600

$0.91

20

External Serrated Lock Washer 6 mm

234461608

$0.92

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Bracket

710000893

Unavailable

23

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

$8.97

28

Horn | Europe Models

710000783

Unavailable

29

Hex. Flange Screw M6 X 16

207661644

$0.61

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

31

Front Fender Harness | Europe Models, Includes 81 To 89

710000814

Unavailable

32

Hex. Flange Screw M6 X 45

207664544

$1.07

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Not Available As Spare Part - Friction Washer

Unavailable

35

RH FLASHER SUPPORT BRACKET - Call your local BRP dealership

710000865

$39.20

36

LH Flasher Support Bracket

710000867

Unavailable

37

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

REFLECTOR - Call your local BRP dealership | Europe Models

710000775

$11.51

42

Tie Wrap 94 mm | 4X4

293750001

$0.83

43

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

$8.97

44

Rear Fender Harness

710000931

Unavailable

45

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

46

PLATE SUPPORT - Call your local BRP dealership

705002230

$19.20
